Life Fitness Strength 9000 Series SL05 Parts List
Life Fitness Strength 9000 Series SL05 Parts List

Life Fitness Strength 9000 Series SL05 Parts List

Life fitness horizontal leg press parts list

Advertisement

Quick Links

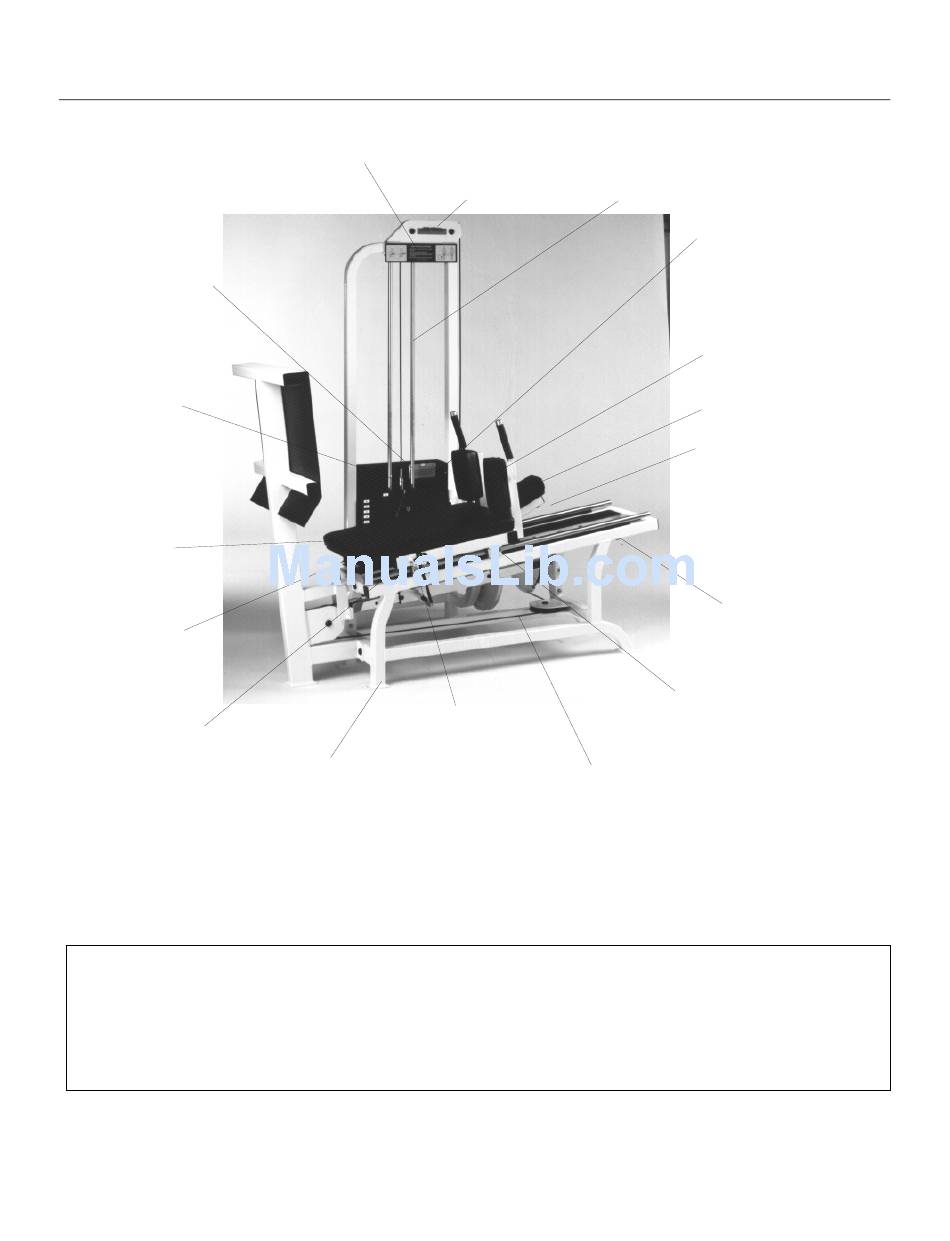

STRENGTH 9000 SERIES TRAINING EQUIPMENT
SL05 Horizontal Leg Press
Weight Stack Shield
SK50-S0047-0000
Decal
M051-00270-A000
Plastic Shield
0K50-E0041-0000
Selector Pin
0K50-A1102-0000
Lanyard Cord
0017-00009-0938
Back Pad
0K50-US025-0000
End Cap (12)
0017-00042-0958
Weight Donut (2)
0017-00042-0993
Sk50-s0013-0000
Should only be used on older units where the top plate on the weight stack contains no holes. This kit consists of pin, lanyard attachment
and plastic eye loop. The plastic eye loop fits over the Bayonet. The old style pin which was made of plastic is going to be upgraded with a
rubber tulip head pin, but will still work with this kit.
0K50-A1102-0000
Fits only on newer units. Top plate on weight stack has an extra hole to accommodate the pin assembly. Push the end of the lanyard into
the hole on the top plate. This style is currently being used on all 9000 strength series and MTS Hammer Units.
Placard
SL05-PL000-0001
Handle Kit
SK50-S0037-0000
Spring
0017-00009-0994
Foot Pad 6-3x4
0017-00042-1019
Foot Pad 1-3x5.5
0017-00042-1020
Cable
Metal Label (2)
AK50-CL155-0001
0K50-01001-0000
Cable
AK50-CL120-0007
1
Weight Stack (400 lbs)
AK50-WS003-0000
Shoulder Pad, Left
0K50-US059-0000
Shoulder Pad, Right
0K50-US082-0000
Pad Mounting Bolts
0017-00101-1477
Head Pad
0K50-US030-0000
Pillow Block
0017-00006-0203
Red Rubber Cap
0017-00042-0952
Bolts
(for the Linear Rods)
0017-00101-1433
Linear Bearing (4)
SK50-S0031-0000
Grease Fitting
0017-00042-0999
rev. 06/06/05
