Summary of Contents for Life Fitness 9000

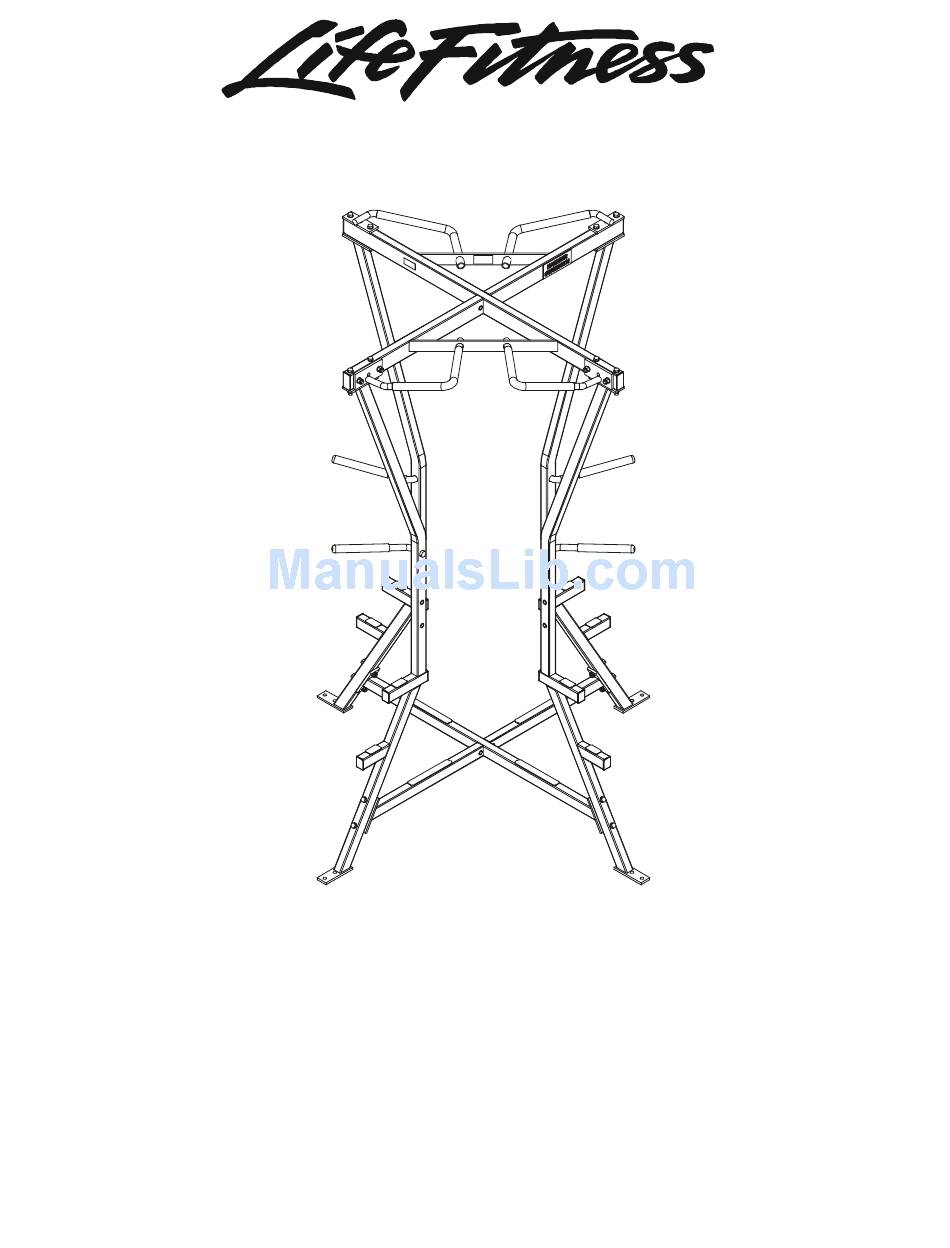

- Page 1 STRENGTH 9000 SERIES EQUIPMENT BWCD - Body Weight Chin/Dip Customer Support Services PARTS MANUAL Page 1 of 6...
- Page 2 BWCD - Body Weight Chin/Dip Contents PAGE EXPLODED ASSEMBLY VIEW ...3 LEFT SIDE ...4 TOP FRAME ASSEMBLY...5 BOTTOM FRAME ASSEMBLY...6 Page 2 of 6...
-
Page 3: Exploded Assembly View
BWCD - Body Weight Chin/Dip Exploded Assembly View ITEM NO.QTY.PART NO. DESCRIPTION 1 BWCD-CBX-0 Bottom Frame Assembly 2 BWCD-CSFL-0 Chin SF Left Assembly 2 BWCD-CSFR-0 Chin SF Right Assembly 1 BWCD-CTX-0 Top Frame Assembly 32 WASH.5STAR 1/2" Internal Lock Washer 12 NUT.5JAMLOCK 1/2"... -
Page 4: Left Side
BWCD - Body Weight Chin/Dip Left Side NOTES: LEFT SIDE SHOWN RIGHT SIDE MIRROR IMAGE ITEM NO.QTY.PART NO. DESCRIPTION 1 BWCD-SFL-0 Chin Left Side Frame 2 H-PLATE-G1 Small Plate Guard 3 H-PEND2 1 1/2 X 2 Endcap 4 H-HPLUG Hole Plug 1 H-GRIP(BWCDLR) HandGrip Page 4 of 6... -
Page 5: Top Frame Assembly
BWCD - Body Weight Chin/Dip Top Frame Assembly ITEM NO. QTY. PART NO. DESCRIPTION 4 H-PEND3 1 1/2 X 3 End Cap 4 H-HPLUG Hole Plug 2 H-NAMEPLATE Name Plate 2 SERIAL NUMBER Serial Number 1 PATENT Patent Decal 1 CHIN DIP Product Decal 4 WASH.5STAR 1/2"... -
Page 6: Bottom Frame Assembly
BWCD - Body Weight Chin/Dip Bottom Frame Assembly ITEM NO.QTY.PART NO. DESCRIPTION 1 BWCD-BX-0 Bottom Frame 4 NONSKID 1 X 9 1 1/4 X 9 Nonskid 4 H-HPLUG Hole Plug Page 6 of 6...
