- Page 1 Leg Raise Owner’s Manual...
-
Page 2: Tools Required
Leg Raise 1. Assembly Instructions Item Description Bottom Brace Left Upright M10 x 135mm Bolt Flat Washer Nylock Nut Right Upright Back Pad M10 x 25mm Bolt Plate Large Hole Plug Small Hole Plug Arm Pad Tools Required: 7mm Allen Wrench 17mm Wrench Ratchet 3”... - Page 3 1. Attach the BOTTOM BRACE (1) to the LEFT UPRIGHT (2) using two M10 x 135mm BOLTS (3), four FLAT WASHERS (4) and two NYLOCK NUTS (5). Finger tighten the NUTS. Attach the RIGHT UPRIGHT (6) to the BOTTOM BRACE (1) using two M10 x 135mm BOLTS (3), four FLAT WASHERS (4) and two NYLOCK NUTS (5).
- Page 4 Leg Raise 1. Assembly Instructions 2. Position the BACK PAD (7) over the top of the UPRIGHTS (2 & 6) as shown. Secure the top of the BACK PAD BRACKET (A) using two M10 x 25mm BOLTS (8) and PLATES (9). Do not tighten the bolts at this time.
- Page 5 Leg Raise 2. Safety & Warranty It is the sole responsibility of the purchaser of Life Fitness products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Life Fitness exercise equipment be informed of the following information prior to its use.
- Page 6 WHO PAYS TRANSPORTATION & INSURANCE FOR SERVICE If the Product or any covered part must be returned to a service facility for repairs, Life Fitness, will pay all transportation and insurance charges for the first year. The purchaser is responsible for transportation and insurance charges during the second and third years (if applicable).
-
Page 7: Exclusive Warranty
Life Fitness Products are designed and manufactured to the highest standards. Life Fitness wants its customers to be completely satisfied with the its Product and will do everything possible under the terms of this warranty to keep its customers secure in knowing they have bought the best! -
Page 8: General Specifications
Foot platforms are molded rubber with a slip resistant texture. 8. Equipment Anchoring All machines have holes in the feet, which allow for easy anchoring to the floor. Life Fitness recommends that all machines be anchored to the floor to minimize the possibility of tipping. -
Page 9: Product Specifications

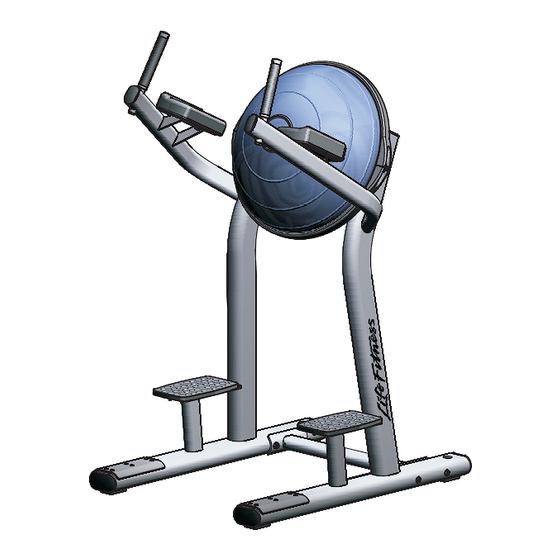

Product Specifications Leg Raise Product # - SLR Machine Weight: 160 lbs. Size: in = 46 L x 33 W x 63.5 H Unique back pad provides lumbar and back support that conforms to the varying angles of the body throughout the range of motion. -
Page 10: Maintenance
Leg Raise 4. Maintenance ONCE A DAY Wipe down upholstery with a mild soap and water or comparable all purpose cleaner. ONCE A WEEK Visually inspect all hardware for loosening, tampering or wear. Check condition of hand grips. ONCE A MONTH Inspect hardware and tighten any bolts or nuts that may have loosened during use. - Page 12 © 2005 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness is a registered trademark of Brunswick Corporation. 8006101 REV. A 10-28-05...
