3 Channel Remote Car Starter

FEATURES :

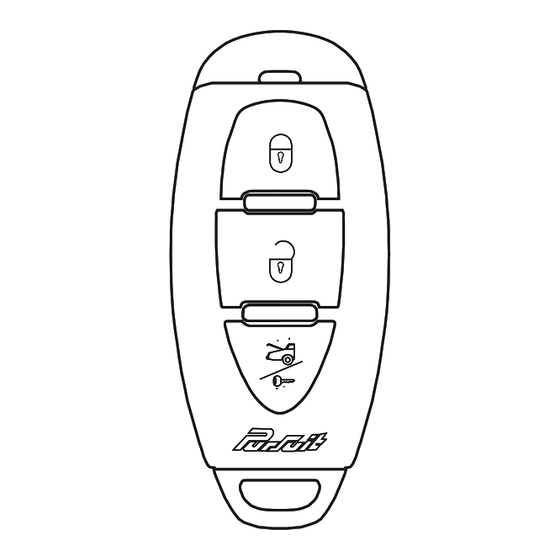

2 Three Button Programmable RF Transmitters

Three Channel Receiver (capable of accepting 4 transmitters)

External Superheterodyne Receiver Antenna w/PushButton Switch & LED

Keyless Entry Outputs

Trunk Release Output

On-Board Start Relay

On-Board Accessory Relay

On-Board Ignition 1 Relay

On-Board Ignition 2 Relay

Ignition 2 Relay Selectable On or Off During Cranking

On-Board Parking Light Relay

Ignition 3 / Shock By-Pass / GM VAT Output (relay required)

Tach Signal Learning Circuit

Two ( + ) and Two ( - ) Safety Shutdown Circuits

Alarm By-Pass Output

Accessory Outputs (Pulse Before & After Start, During Crank & After

Shut Down)

Selectable Steady or Flashing Parking Lights for Run Indication

Selectable 5, 10, 15, 20, 45, 60 Minute Run Time

Selectable Door Lock Output Pulse Timing

Car Finder Mode

PATENTED: www.voxxintl.com/company/patents

Model PRO9556E

Owner's Manual

128-9319

1 of 4

Table of Contents

Need help?

Do you have a question about the PRO9556E and is the answer not in the manual?

Page 1 Model PRO9556E Owner’s Manual 3 Channel Remote Car Starter FEATURES : 2 Three Button Programmable RF Transmitters Three Channel Receiver (capable of accepting 4 transmitters) External Superheterodyne Receiver Antenna w/PushButton Switch & LED Keyless Entry Outputs Trunk Release Output On-Board Start Relay...
Page 2 KEYLESS ENTRY The Lock button on the transmitter is used to lock the vehicle's doors. The Unlock button is used to unlock the vehicle's doors. To lock or unlock the doors simply press and release the desired function button one time. As a keyless entry unit, for your convenience, the parking lights will flash once when the doors are locked and twice when the doors are unlocked.
Page 3 To place the system in the service mode: 1. With the system disarmed/unlocked, and the ignition switch off, Press and Hold the Push-Button, found on the windsheild receiver, in. 2. Turn the ignition switch on, off, on, off, on, off. 3.
Page 4 PROGRAMMED TRANSMITTER NOTIFICATION (PTN) Every time after Disarm, when the ignition key is turned on, the unit's LED will report the number of transmitters programmed into the system. This safety feature will alert you if an unauthorized transmitter has been programmed into your vehicle's security system without your knowledge.
