PURSUIT PRORS Quick Installation Manual

1 3 5 7
2 4 6 8
1 Red/Black
Igni�on 3 Flex Relay (87) Input
2 Pink Igni�on 3 Flex Relay (30) Output
P
3 Yellow
Starter Output (+)
4 Green Igni�on 2 Output (+)
P
5 Red
Ba�ery 12V (+)
6 Red/White Ba�ery 12V (+)
7 Purple
Accessory Output (+)
P
8 Blue Igni�on 1 Input / Output (+)
Replacement Part #4120458
1 3
2 4
1 White Parking Light (30) Output
P
2 White/Red
Parking Light (87) Input
3 Yellow/Black
Igni�on Output (+) (Not For Remote Start)
4 Black
Ground Input (-)
Replacement Part #4120463
1
White Data RX
2
Black Ground (-)
3 Blue
Data TX
4 Red
Ba ery 12V (+)
Not Included
For Complete Installation Guide and Technical Support Visit www.voxxuniversity.com. Or Call 1-800-225-6074
Remote Start w/Keyless Entry
1
2
Replacement Part #4360832
3
4
1 2 3 4
1
White Data RX
2 Blue Data TX
3 Black
Ground (-)
4 Red Ba ery 12V (+)
Not Included
1 2 3 4
1 Blue Data TX
2
White Data RX
3 Black Ground
4 Red
Ba ery 12V (+)
Not Included
PRORS

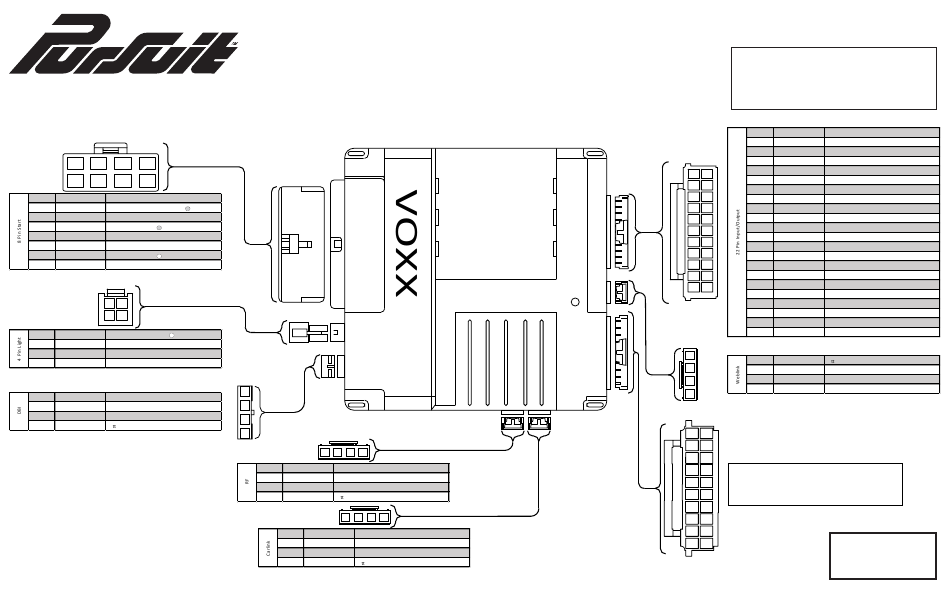

System Layout
FLCART Dock
Important Update
The default Data Port Protocol of this system is ADS. If using an FLCAN or
other external integration module be sure to choose iDatalink 2-Way when
flashing.
This system will also support DBI. This will require programming Feature
Bank 2, Feature 15 to DBI.
Green
22 Unlock Output (-) (NOC 11)
Dk. Blue
21 Trunk Output (-) (NOC 9)
20 Red Lock Output (-) (NOC 10)
19 Green/Lt. Blue Ch. 4 AUX Output (-) (NOC 8)
18 Black/White Horn Output (-)
21 22
17 Lt. Blue/Green Ch. 5 AUX Output (-) (NOC 7)
19 20
16 Red/Black 2nd Unlock Output (-) (NOC 12)
17 18
Black/Lt. Green
15 Factory Arm Output (-) NOC 6)
15 16
14 Brown/Black Brake Input (+) (PIC 6)
13 14
13 Black/Blue Factory Disarm Output (-) (NOC 5)
12 Dk. Blue/Black External Ac�va�on Input (-) (PIC 5)
11 12
11 Black/Red Pulse A�er Shutdown Output (-) (NOC 4)
9 10
10 Orange/Black Parking Brake Input (-) (PIC 4)
7 8
9 Black/Yellow Pulse During Crank Output (-) (NOC 3)
5 6
8 Green/Yellow Diesel Glow Plug Input (+) (PIC 3)
3 4
7 Green/White DomeLight Output (-) (NOC 2)
6 Purple/Brown Door Trigger Input (- / +)
1 2
5 Lt. Blue Remote Start Status Output (-) (NOC 1)
4 Green/Orange Tach Input (-)
3 Gray/Black Hood Input (-) (PIC 2)
2 Lt. Green Trunk Trigger Input (-) (PIC 1)
1 Orange Starter Kill Relay / An�-Grind Output (-)
4
4 Red
Ba ery 12V (+)
3
3 Black
Ground (-)
2
2 Blue Data TX
1 White Data RX
1
19 20
17 18
15 16
This Harness is included with the FLCART.
13 14
For Wire Informa�on and Diagram Please Refer to Vehicle Specific
11 12
FlashLogic Install Guide.
9 10
Visit www.FlashLogic.com for More Informa�on.
7 8
5 6
3 4
Compatible RF Kits
1 2
PR1BZ
PR1BZLR
PR1BTWZ
PR5BZ
2020 Voxx Electronics. All Rights Reserved.
Replacement Part #4120457
Not Included
Not Included
PE2LEDZ
PE2LCDZ
PE1M2LEDZ
PE1M2LCDZ
