Summary of Contents for York EVHC 09 DSAAAR
-
Page 1: Service Manual

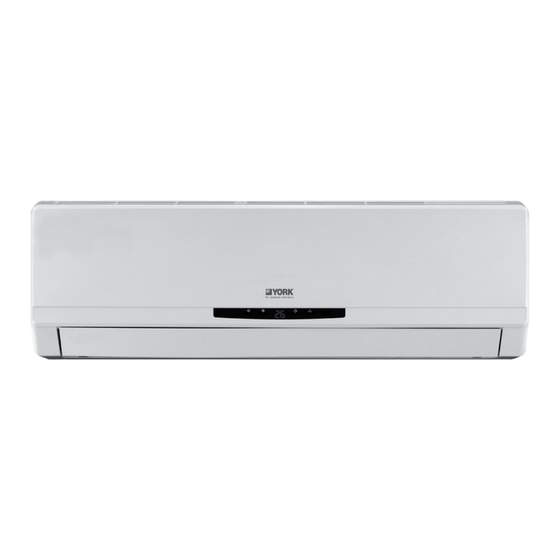

High Wall EVHC 09 to 12 DSAAAR SERVICE MANUAL EVHC-09 / EVHC-12 SM-EVHC-D-09-12GB 05-10... -
Page 2: Table Of Contents
CONTENTS Safety Cautions ..........................1 Operation of wireless remote control ....................4 Emergency operation ........................9 Product Specifications ........................10 Part name ............................12 Dimensions ............................13 Schematic Diagram .........................15 PCB function manual and operation method ...................2 Appending data ..........................Refrigerant sysem diagram ......................Installation ............................Troubleshooting Guide ........................ -
Page 3: Safety Cautions
6DIHW\ &DXWLRQV Safety Cautions To prevent injury to the user or other people and property damage, the following instructions must be followed. ■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. - Page 4 6DIHW\ &DXWLRQV For re-installation of the installed product, Do not install, remove, or re-install the always contact a dealer or an authorized unit by yourself. service center. There is risk of fire, electric shock, explosion, or There is risk of fire, electric shock, explosion, or injury.
- Page 5 6DIHW\ &DXWLRQV Don't place a space heater near the air Keep combustible spray away from conditioner. the units more than 1m. It can cause afire or explosion. Or CO toxicosis may occur for imcomplete burning. The airflow direction can be adjusted Don't insert your hands or stick into the air appropriately.At operating, adjust the intake or outlet vents.
-
Page 6: Operation Of Wireless Remote Control
2SHUDWLRQ RI ZLUHOHVV UHPRWH FRQWURO Operation of wireless remote control Note: There is no fan display shown on the front panel of the indoor unit... - Page 7 Operation of wireless remote control This function only operates when unit is in DRY or Cooling mode and should be on when used in high humidity indoor environment to dry indoor coil to prevent mould growing on the coil. To set this function press Below button, an Icon will be displayed on LCD remote controller.
- Page 8 Operation of wireless remote control TIMER ON TIMER ON BUTTON Timer On setting: Signal ìONî will blink and display, signal will conceal, the numerical section will become the timer on setting status. During 5 seconds blink, by pressing button to adjust the time value of numerical section, every press of that button, the value will be increased or decreased 1 minute.
- Page 9 Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly.
- Page 10 Operation of wireless remote control About new function of defrosting It indicates: after starting this function by remote controller and the unit has been under defrost status, If turn off the unit by remote controller, the unit will not stop defrosting until it is finished;...
-
Page 11: Emergency Operation
Emergency operation Displayer indicator light control of indoor unit It's a special selective buttonfor the users ,who are not accustomed to the light at sleeping. Get the displayer indicator light on: When setting the light function,the mark will display on the remote controller screen by pressing this button. -
Page 12: Product Specifications
Product Specifications Product Specifications Model EVHC 09 DSAAAR EVHC 12 DSAAAR Function COOLING HEATING COOLING HEATING Rated Voltage 220-240V 220-240V Rated Frequency 80/50/25 80/53/25 95/68/25 95/74/25 3100/2500/1200 3800/2800//1200 3800/3500/1220 4740/4000/1310 Total Capacity (W/Btu/h) 10600/9000/4036 13000/9386/4096 12970/12000/4172 14660/13650/4480 Power Input (W) - Page 13 Product Specifications Model of Outdoor Unit EVJC 09 DS EVJC 12 DS Compressor Manufacturer/trademark MITSUBISHI MITSUBISHI Compressor Model KNB092FHBMC KNB092FHBMC Compressor Type single-rotor single-rotor L.R.A. (A) Compressor RLA(A) 3.89 Compressor Power Input(W) Overload Protector None 222KT-XH-2P-400mm Throttling Method Capillary throttling Capillary throttling Starting Method Transducer starting...
-
Page 14: Part Name
3DUW QDPH Part name Air in Power cable Front Panel Indoor unit Wrapping Tape Guide louver Wall Pipe Filter Air out Set Temp Cooling Wireless remote control LED displayer Heat Remote control window Air in Outdoor unit Drainage hose Air out... -
Page 15: Dimensions
Dimensions Dimensions Indoor Unit Air inlet Tube exit Ceiling Left Right Wall-Mounting Plate Hole, the position should be confirmed Hole, the position should be confirmed by client or the erector by client or the erector Mounting Plate Hole Model W( ) H( ) D( ) EVKC 09 DS... -
Page 16: Outdoor Unit
Dimensions Outdoor Unit Unit:mm Over 60cm Bolt Wrench Model W(mm) W1(mm) W2(mm) H(mm) D(mm) D1(mm) D2(mm) EVJC 09 DS 256.6 EVJC 12 DS 256.6... -
Page 17: Schematic Diagram
Schematic Diagram Schematic Diagram :LULQJ 'LDJUDP Indoor Unit... - Page 18 Schematic Diagram Outdoor Unit...
-
Page 19: Printed Circuit Board Connector Wiring Diagram
Schematic Diagram Printed Circuit Board Connector Wiring Diagram INDOOR UNIT • OP VIEW • BOTTOM VIEW... - Page 20 Schematic Diagram • TOP VIEW Serial No. Name of circuit Testing contents Before commutating, voltage: Commutating filter wave circuit AC current; After commutated, voltage: DC current Communication voltage and communication wave shape Communication circuit Chip power supply 5V; relay power supply 12V Stabilized voltage supply circuit Buzzer sound Buzzer circuit...
- Page 21 Schematic Diagram Outdoor Unit • TOP VIEW • BOTTOM VIEW...
- Page 22 Schematic Diagram • TOP VIEW Serial No. Name of circuit Testing spot Testing content Commutating filter circuit Before commutating voltage AC current; After commutating voltage DC current R212 underneath Bus bar voltage, working voltage 15V circuit multimeter black pen contact with U406 radiator multimeter red pen contact with R212 underneath...
- Page 23 Schematic Diagram • BOTTOM VIEW Outdoor unit pin definition Definition Definition JTAG Quick test Overload protection singal input Memory Models selection port Digital ground 25/35 Digital ground +3.3V Fan motor PWM output +3.3V Module protection signal input Fan motor speed feedback input Memory Digital ground Phase-locked loop...
-
Page 24: Pcb Function Manual And Operation Method
PCB function manual and operation method PCB function manual and operation method 1. Temperature Parameters Indoor preset temperature (T preset Indoor ambient temperature (T amb. 2. Basic Functions Once energized, in no case should the compressor be restarted within less than 3 minutes. In the situation that memory function is available, for the first energization, if the compressor is at stop before de-energization, the compressor will be started without a 3-minute lag;... - Page 25 Operation Protection Protection is the same as that under the cooling mode. (3) Heating Mode Working conditions and process of heating If T .≤T +2 , the unit enters heating mode, in which case the four-way valve, the compressor and the outdoor fan preset will operate simultaneously, and the indoor fan will run at preset speed in the condition of preset cold air prevention.
- Page 26 Operation a. Under AUTO mode, if T .≥T is detected, the unit will select to run under cooling mode, in which case implicit preset preset temperature is 25 ; if T .≤T -2 , the compressor will stop, the outdoor fan will stop with a time lag of 1 preset minute, and the indoor fan will run at preset speed;...
- Page 27 Operation Designation of sensors Faults The sensor is detected to be open-circuited or short-circuited for successive 30 Indoor ambient temperature seconds The sensor is detected to be open-circuited or short-circuited for successive 30 Indoor tube temperature seconds The sensor is detected to be open-circuited or short-circuited for successive 30 Outdoor ambient temperature seconds The sensor is detected to be open-circuited or short-circuited for successive 30...
- Page 28 Operation Heating angle Cooling angle (10) Display Operation pattern and mode pattern display All the display patterns will display for a time when the power on, the operation indication pattern will display in red under standby status. When the machine is start by remote control, the indication pattern will light and display the current operation mode (the mode light includes: Cooling, heating and dehumidify).
-
Page 29: Appending Data
Appending data Appending data Table showing operation frequency limits for cooling and heating Outdoor Relative Humidity 37% Outdoor Relative Humidity 86% Indoor Wet Bulb Indoor Wet Bulb Temperature( Temperature( Compressor Frequency(Hz) Compressor Frequency(Hz) Performance date for both cooling and heating COOLING: Temperature condition... -
Page 30: Expanded Capacity Data Tables For Both Cooling And Heating
Appending data Expanded capacity data tables for both cooling and heating Cooling Heating • Conditions Indoor : DB27˚C/WB19˚C Indoor air flow : High Pipe length : 5m • Conditions Indoor : DB 20˚C Indoor air flow : High Pipe length : 5m –15 –10 –5... -
Page 31: Operation Characteristic Curve
Appending data Operation Characteristic Curve EVHC 09 DSAAAR Cooling Heating • Conditions • Conditions Indoor : DB20˚C/WB15˚C 220V Indoor : DB27˚C/WB19˚C 220V Outdoor : DB7˚C/WB6˚C Outdoor : DB35˚C/WB24˚C Indoor air flow : High Indoor air flow : High Pipe length... - Page 32 Appending data Noise criteria curve tables for both models Indoor side noise when blowing Outdoor side noise High Middle Indoor fan motor rotating speed Compressor frequency/Hz...
-
Page 33: Refrigerant System Diagram
5()5,*(5$17 6<67(0 ',$*5$0 REFRIGERANT SYSTEM DIAGRAM Heat exchanger 3-Way ( INDOOR ) valve Muffler 2-Way valve 4-Way valve Strainer Capillary Heat exchanger Strainer ( OUTDOOR ) Strainer Cooling Heating... -
Page 34: Installation
Installation Installation Important Notices 1. The unit installation work must be done by qualified personnel according to the local rules and this manual 2. Before installating, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved due to discommodious contacts 3. - Page 35 Installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. 2. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional.
- Page 36 Installation Install the rear panel 1.Always mount the rear panel horizontally. Due to the water tray of indoor unit has been adopted the both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is taking the outlet of the water tray as the center of a circle, the included angle between the evaporator and level should be 0 or more, that is good for condensing water drainage.
- Page 37 Installation NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare parts malfunction.
-
Page 38: Electric Wiring
Installation Electric wiring Disassemble the handle on the outdoor unit right side plate. Take off cord anchorage. Connect and fix power connect cord (for cooling and heating unit,connect and fix power connect cord and signal control wire)to terminal block. Fix the power connection cable with cord anchorage, (for cooling and heating unit, use the cord anchorage to fix the power connection cable and the signal control wire). -
Page 39: Troubleshooting Guide
Troubleshooting Guide Troubleshooting Guide Note: When replacing the controller, make sure insert the wire jumper into the new controller, otherwise the unit display C5 The breaker trips at once when it Measure insulation resistance to ground to see if there is any leakage. is set to "ON". - Page 40 7URXEOHVKRRWLQJ *XLGH Improper set of temperature Adjust set temperature If cooling (heating) load is Check the forecasted load of cooling (heating) proper heck and fill the leakage, then The refrigerant has leakage or is vacuumize it and supplement the re- insufficient frigerant as required Leakage between the high pres-...
- Page 41 Troubleshooting Guide The indoor fan motor is burned or breaks or Replace the fan motor or the defective part. has the heat protector malfunction. The built-in heat protector of the motor breaks Replace the fan motor frequently because the motor is The fan does not abnormal.
- Page 42 7URXEOHVKRRWLQJ *XLGH C o n t r o l l e r m a l f u n c t i o n ( I C 2 0 0 3 b r o k e n , creepage of parallel capacitor of relay loop, Change controller relay is broken etc.) In cool, heat mode,the...
- Page 43 Flashing LED of Indoor/Outdoor Unit and Primary Judgement Name of running status Indoor unit display Yellow light Red light Green light Compressor start Blink once Defrosting Blink twice Blink three times Anti-freezing protection IPM protection Blink four times Overcurrent protection Blink five times Blink six times Overload protection...
- Page 44 7URXEOHVKRRWLQJ *XLGH Malfunction Display If malfunction occurs,corresponding code will display and the unit will resume normal until protection or malfunction disappears. Yellow indicator blinks for once Compressor stars (normal) Defrosting (normal display of indoor unit) Yellow indicator blinks for twice Anti-freezing protection (normal Yellow indicator blinks for 3 times display of indoor unit)
- Page 45 7URXEOHVKRRWLQJ *XLGH Analysis or processing of some of the malfunction display: 1. Compressor discharge protection Possible reasons: shortage of refrigerant; blockage of air filter; poor ventilation or air flow short pass for condenser; the system has noncondensing gas (such as air, water etc.); blockage of capillary assy (including filter); leakage inside four-way valve causes incorrect operation;...
-
Page 46: How To Check Simply The Main Part
Troubleshooting Guide 3 How to Check simply the main part (1) Capacitor charge fault (Fault with outdoor unit) (AP1 below refers to the outdoor control panel) Main Check Points: Use AC voltmeter to check if the voltage between terminal L and N on the wiring board is within 210VAC~240VAC. If the reactor (L) is correctly connected? If the connection is loose or fallen? If the reactor (L) is damaged? Fault diagnosis process: Switch on the unit... - Page 47 7URXEOHVKRRWLQJ *XLGH (2) IPM Protection, Out-of-step Fault, Compressor Phase Overcurrent (AP1 below refers to the outdoor control panel) Mainly detect: If the connection between control panel AP1 and compressor COMP is secure? If loose? If the connec- tion is in correct order? If the voltage input of the machine is within normal range? (Use AC voltmeter to measure the voltage between terminal L and N on the wiring board XT) If the compressor coil resistance is normal? If the insulation of compressor coil against the copper tube...
- Page 48 Troubleshooting Guide Energize and switch on Use AC voltmeter If the voltage Check the supply to measure the IPM protection between terminal L voltage and voltage between occurs after the and N on wiring terminal L and N machine has run for restore it to board XT is within a period of time?
- Page 49 7URXEOHVKRRWLQJ *XLGH 3 High temperature and overload protection diagnosis (AP1 hereinafter refers to the control board of the outdoor unit) Mainly detect: Is outdoor ambient temperature in normal range? Are the outdoor and indoor fans operating normally? Is the heat dissipation environment inside and outside the unit is good? Overheat and high temperature protection Normal protection, please operate it after the...
- Page 50 7URXEOHVKRRWLQJ *XLGH (4) Fail for start up (following AP1 for outdoor unit control board) Mainly detect: Whether the compressor wiring is connected correct? Is time for compressor stopping enough? Is compressor broken? Power on the unit Is stop time of the compressor Restart it up after 3 minutes longer than 3 minutes? Does startup fail?
- Page 51 Troubleshooting Guide (5) Out of step diagnosis for the compressor (AP1 hereinafter refers to the control board of the outdoor unit) Mainly detect: Whether the unit voltage is too high? Whether the work voltage is too low? Out of step occurs in Out of step occurs once the operation unit is powered on.
- Page 52 Troubleshooting Guide (6)Overload and air exhaust malfunction detect (following AP1 for outdoor unit control board) Mainly detect: Wether the electronic expansion valve is connected well or not? Is electronic expansion valve damaged? Is refrigerant leaked? 20 minutes after the complete unit is powered off Is the terminal FA for the Connect the...
- Page 53 Troubleshooting Guide 7 Power factor correction (PFC) fault (a fault of outdoor unit) (AP1 hereinafter refers to the control board of the outdoor unit) Mainly detect: Check if the reactor (L) of the outdoor unit and the PFC capacitor are broken The failure diagnosis process is as follows: Start Check wiring of the...
- Page 54 7URXEOHVKRRWLQJ *XLGH (8) Communication malfunction: (following AP1 for outdoor unit control board) Mainly detect: Detect the indoor and outdoor units connection wire and indoor and outdoor units inside wiring is connect well or not, if is there any damage? Is there any damage for the indoor unit mainboard communication circuit? Is communication circuit damaged? The flow chart for malfunction detect: Start Did the equipment operate...
- Page 55 7URXEOHVKRRWLQJ *XLGH Appendix 1: form for indoor/outdoor unit's ambient sensor numerical value of resistance Temp. Temp. Resistance Resistance Temp. Resistance Temp. Resistance...
- Page 56 Troubleshooting Guide Appendix 2: form for indoor/outdoor unit's tube temperature sensor numerical value of resistance Resistance Resistance Resistance Resistance Temp Temp Temp Temp • • • • • • • • • • ...
- Page 57 7URXEOHVKRRWLQJ *XLGH Appendix 3: form for indoor/outdoor unit's air exhaust temperature sensor numerical value of resistance Temp. Temp. Resistance Temp. Temp. • • • • • • Resistance • • • • • • • Resistance • • • • •...
-
Page 58: Disassembly
'LVDVVHPEO\ Disassembly Indoor Unit Disconnect the unit from power supply before mak- ing any checks. Be sure the power switch is set to “OFF”. Front panel 1.Disassemble the front panel Open the front panel, slightly press the both sides of rotating axial of the panel, to make the rotating axial out of groove, can take down the front panel. - Page 59 Disassembly 4.Disassemble the electric box cover Slightly press the electric box cover to make the clasps out take down the ambient sensor, can take down the electrric box cover. Electric box cover Earth screw Cold plasma Tube temperature sensor 5.Disassemble electric box Screw off the screws fix the electrix box, screw off the earh screw, pull out the tube sensor, pull out the air guide motor, the wiring terminal of motor, screw off the screws fixing the displayer, can take down...
- Page 60 Disassembly Clasp Screws Screws 7.Disassemble the motor Unscrew the screws which fix the motor clamp, take down the motor and cross flow fan, screw off one screw which connects with the motor and cross flow fan, then take out the motor. Screws Motor clamp Screw...
- Page 61 'LVDVVHPEO\ outdoor Unit Unscrew the screw fixing the big handle,and then remove it downwards to take it out. Big Handle Screw Unscrew the 2 screws fixing left side of top cover and the 1 screw fixing the right side to remove the top cover.
- Page 62 Disassembly Unscrew the 5 screws fixing the panel and dextrorotate the front panel to pull it out from groove. Screws Unscrew the 2 screws fixing electric box ,and then unscrew the 5 screws fixing the right side plate to remove it. Screws Right Side Plate Screws...
- Page 63 Disassembly Loosen the fastening nut fixing the axial flow fan Axial Flow Fan with a spanner, and then take out the nut, spring gasket and flap gasket in turn. Unscrew the 4 screws fixing the motor to take out the motor,and then unscrew the 2 screws fixing the motor support to take it out.
- Page 64 Disassembly Respectively unsolder the weld spots of main capillary and auxiliary capillary to take off the capillary. Capillary Screw off the screws which fix the valves, unsolder the pipeline take down the valves. Bolts Liquid Valve Gas Valve Loosen 3 pcs nut from the bottom of compressor, unsolder the air intake and air exhaust pipeline, becareful to move the pipeline, and take out the compressor.
-
Page 65: Exploded View
Exploded View Exploded View Indoor Unit... - Page 66 Exploded View Outdoor Unit...
-
Page 67: Replacement Parts List
Replacement Parts List Replacement Parts List Parts List (Indoor) Part Code Description EVKC 09 DS EVKC 12 DS Wall-Mounting Frame 01252015 01252013 Rear Case 22202453 22202454 Evaporator Assy 0100255203 0100255302 Evaporator Support 24212090 24212091 Cross Flow Fan 10352018 10352017 Bearing cushion rubber base 26152022 26152022 Ring of Bearing... - Page 68 Replacement Parts List Part Code Description EVJC 09 DS EVJC 12 DS Front Panel 01533005 01533006 Clap Board 01233012 01233381 Drainage Connecter 06123401 6123401 Reactor Support 01203682P 0120368201P Temperature Sensor 222KT-XH-2P(white)-4 39000302 39000302 Compressor KNB092FHBMC 00120228 00120228 Compressor Bolt 70210108 70210108 Nut M6Xφ...
- Page 69 Method of testing the system at a fixed frequency operation. Model Mode Cooling Rotate speed Setting temp. Mode Heating Rotate speed Setting temp. After set up the turbo and indoor setting temperature, within 2.5s continuously press “Sleep” button four times, the displayer will display P0 or the corresponding codes, that will enter into relevant testing status, the compressor will run according to the relevant frequency.
