On-Demand Water Heater
Installation Manual and Owner's Guide
ANSI Z21.10.3 and CSA 4.3
Gas Tankless Water Heater
Suitable for potable water heating and space-heating*
* Please refer to local codes for space-heating compliance.
FEATURING
• ENDLESS HOT WATER
• ON-DEMAND USAGE
• COMPACT, SPACE SAVING
• ENERGY CONSERVATION
• COMPUTERIZED SAFETY
• NO PILOT LIGHT
• EASY-LINK SYSTEM
510 (T-D2) model only)
510 (T-D2)
model only

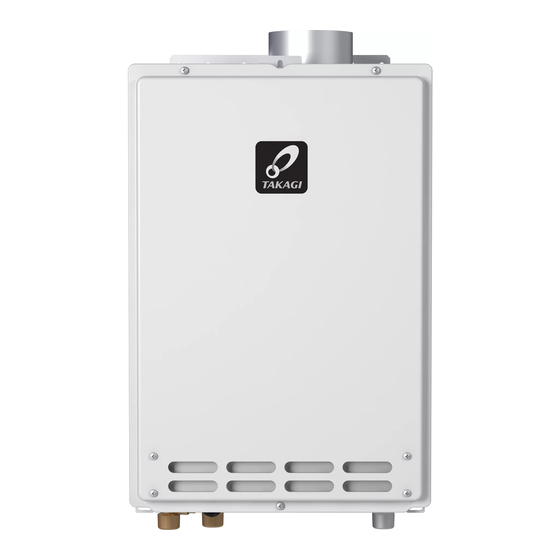

110 Indoor (T-KJr2-IN)
•
310 Indoor (T-K4-IN)
•
510 Indoor (T-D2-IN)
•
WARNING
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch, do not
• Immediately call your gas supplier from
TM
• If you cannot reach your gas supplier, call
- Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
If you have any questions, please
Models
110 Outdoor (T-KJr2-OS)
•
310 Outdoor (T-K4-OS)
•
510 Outdoor (T-D2-OS)
•
If the information in these
instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
use any phone in your building.
a neighbor's phone. Follow the gas
supplier's instructions.
the fire department.
call or write to:
500 Tennessee Waltz Parkway
Ashland City, TN 37015
Toll Free: 1-877-737-2840
