Summary of Contents for Life Fitness HAMMER STRENGTH PLLL2

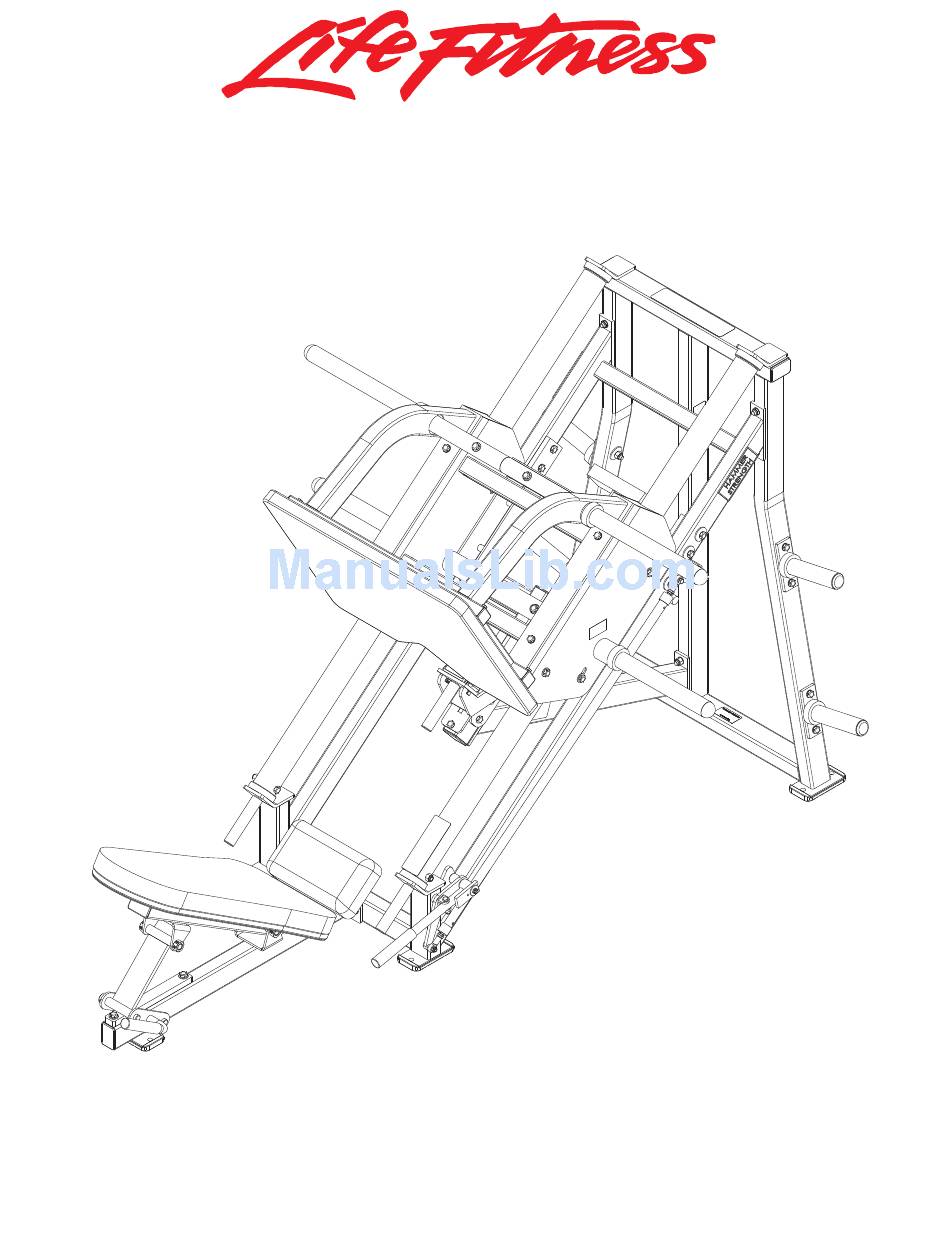

- Page 1 HAMMER STRENGTH PLLL2 PLATE LOADED LINEAR LEG PRESS Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
PLLL2 PLATE LOADED LINEAR LEG PRESS CONTENTS ________________________________________ COMPONENT ASSEMBLY COMOPONENT ASSEMBLY LEGEND REAR FRAME ASSEMBLY WEIGHT HORN ASSEMBLY MIDDLE FRAME ASSEMBLY STOP LINK ASSEMBLY HOOK STOP ADDEMBLY BOTTOM STOP ASSEMBLY TOP MOVEMENT ARM ASSEMBLY BOTTOM MOVEMENT ARM ASSEMBLY SEAT ASSEMBLY... -
Page 3: Component Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS COMPONENT ASSEMBLY ________________________________________ Page 3 SEE PAGE 4 FOR LEGEND... - Page 4 PLLL2 PLATE LOADED LINEAR LEG PRESS COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7693401 ASSY, PLLL2 Rear Frame 7694101 ASSY, PLLL2 MIDDLE FRAME 7698401 ASSY, PLLL2 BOTTOM MA 3239505 WSH, .500 IN-D ST ZN 3239305 1/2-13 X 1.25 UNS HEX FHB G5 ZN...
-
Page 5: Rear Frame Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS REAR FRAME ASSEMBLY- 7693401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7693501 WLDMT, PLLL2 REAR FRAME 7352301 CAP, END 2 X 3 3239314 1/2-13 X 3.50 UNS HEX FHB G5 ZN 3102801 NUT, NYLOCK 1/2-13 ST ZN 3239505 WSH, .500 IN-D ST ZN... -
Page 6: Weight Horn Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS WEIGHT HORN ASSEMBLY- 7760201 ________________________________________ ITEM NO. QTY. PART NO. DISCRIPTION 7762701 WEIGHT HORN 3119302 CAP, END 1.75 DIA RD 14-20 GA 7671601 RUBBER RING Page 6... -
Page 7: Middle Frame Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS MIDDLE FRAME ASSEMBLY- 7694101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7694201 WLDMT, PLLL2 MIDDLE FRAME 7444601 BUMBER, DONUT 7359701 SEATRACK FRONT 7695101 PLATE, PLLL2 STOP 3239316 1/2-13 X 4.00 UNS HEX FHB G5 ZN 3239505 WSH, .500 IN-D ST ZN... -
Page 8: Stop Link Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS STOP LINK ASSEMBLY- 7708701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 3237900 ROD END, METRIC FEMALE 7708801 WLDMT, PLLL2 LINK 3236901 NUT, M10 X 1.5 JAM Page 8... - Page 9 PLLL2 PLATE LOADED LINEAR LEG PRESS HOOK STOP ASSEMBLY- 7696201 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7696301 WLDMT, PLLL2 HOOK-STOP 3223304 3/8-16 X 1.75 HEX HEAD BOLT 3102802 NUT, NYLOCK 3/8-16 3248401 CAM FOLLOWER TORRINGTON YCR-20 Page 9...
-
Page 10: Bottom Stop Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS BOTTOM STOP ASSEMBLY- 7695701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7695801 WLDMT, PLLL2-BOTTOM STOP 3102507 WASHER, TYPE A PLAIN 3239306 1/2-13 X 1.50 UNS HEX FHB G5 ZN 3239505 WSH, .500 IN-D ST ZN... -
Page 11: Top Movement Arm Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS TOP MOVEMENT ARM ASSEMBLY- 7697601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7697701 WLDMT, PLLL2 TOP MA 7698301 BOARD, PLLL2 LINEXED 7767301 TUBE, PLLHP WEIGHT BAR 7352201 CAP, END 1-1/2 X 2 7671601 MM5 Ring... -
Page 12: Bottom Movement Arm Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS BOTTOM MOVEMENT ARM ASSEMBLY- 7698401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7698501 WLDMT, PLLL2 BOTTOM MA 3240301 ROLLER ASSY 3239319 1/2-13 X 4.75 UNS HEX FHB G5 ZN 3102801 NUT, NYLOCK 1/2-13 ST ZN... -
Page 13: Seat Assembly
PLLL2 PLATE LOADED LINEAR LEG PRESS SEAT ASSEMBLY- 7697101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7697201 WLDMT, PLLL2 SEAT 7709801 BUMPER, 1" STRIP 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN 3102507 WASHER, TYPE A PLAIN 3239317 1/2-13 X 4.25 UNS HEX FHB G5 ZN... -
Page 14: Image
PLLL2 PLATE LOADED LINEAR LEG PRESS IMAGE ________________________________________ Page 14...
