In these operating instructions, the designation “the tool” always refers to the PM 2-LG line laser. Always keep these operating instructions to- gether with the tool. Parts, operating controls and indicators 1...

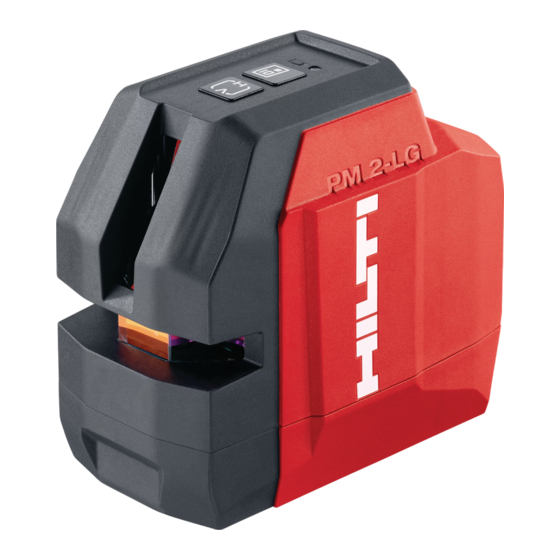

2 Description 2.1 Use of the product as directed The PM 2-LG is a self-leveling line laser designed for leveling and alignment work. The line laser projects two green laser lines (horizontal and vertical) and a line intersection point. The line laser can be operated by one person.
Laser beam Blinks twice every 10 The batteries are almost exhausted. seconds (pendulum not locked) or every 2 seconds (pendulum locked). Blinks five times and then Automatic power-off has been deac- remains on permanently. tivated (see section “Deactivating the automatic power-off function”. Blinks with a high frequency.
Likewise, Hilti h) Maintain the machine carefully. Check for mis- cannot rule out the possibility of interference with other alignment or binding of moving parts, breakage devices (e.g.
g) Do not attempt to open the batteries and do not 5.6 Liquids subject them to excessive mechanical stress. Under abusive conditions, liquid may leak from the bat- h) Do not use damaged batteries. tery. Avoid contact. If contact accidentally occurs, Do not mix old and new batteries.
Page 9
= twice the measured deviation in millimeters / ¹⁄₁₀ inch H = height of the door opening in meters 7.2.4 Procedure in the event of deviations In the event of finding deviations, please return the tool to a Hilti Measuring Systems Service Center for servicing.
The tool is set up on an excessively Set up the tool on the level. tion. inclined surface. NOTE If the steps listed here do not remedy the error, or if further errors occur, have the tool repaired at a Hilti Measuring Systems Service Center.
Most of the materials from which Hilti tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back old tools and appliances for recycling.
86916 Kaufering Deutschland We declare, on our sole responsibility, that this product complies with the following directives and standards: 2004/108/EC, 2011/65/EU, EN ISO 12100. Hilti Corporation, Feldkircherstrasse 100, FL‑9494 Schaan Paolo Luccini Edward Przybylowicz Head of BA Quality and Process Man-...
