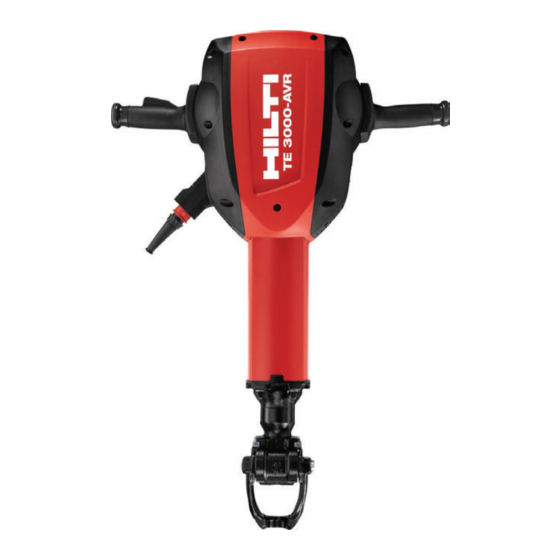

TE 3000 AVR
Operating instructions
Mode d'emploi
Manual de instrucciones
Manual de instruções
en
fr
es
pt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE3000-AVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hilti TE3000-AVR

  • Page 1 TE 3000 AVR Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções...
  • Page 6 TE-H28P SM 400 mm 500 mm TE-H28P FM 400 mm 500 mm TE-H28P SPM 80/400 mm 80/500 mm TE-H28P SPMA 125/450 mm TE-H28P SPI 500 mm TE-H28 400 mm TE STP 150 x 150 mm 200 x 200 mm...
  • Page 7: Table Of Contents

    ORIGINAL OPERATING INSTRUCTIONS TE 3000‑AVR Breaker 1 These numbers refer to the corresponding illustra- It is essential that the operating instructions tions. The illustrations can be found on the fold-out are read before the power tool is operated cover pages. Keep these pages open while studying for the first time.
  • Page 8: Description

    The power tool may be operated only when connected to a power supply providing a voltage and frequency in compliance with the information given on its type identification plate. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance.
  • Page 9 2.2 Chuck 28 mm hex. chuck 2.3 Switch On / off switch 2.4 Grips Grips incorporating AVR Active Vibration Reduction 2.5 Lubrication Permanent lubrication with separate lubrication chambers for the gearing and hammering mechanism. 2.6 Theft protection system (optional) The power tool may be equipped with the TPS Theft Protection System as an option. If the power tool is equipped with this feature, it can be unlocked and made ready for operation only through use of the corresponding TPS key.
  • Page 10: Accessories, Consumables

    TPS Theft Protection System with Company Card, Company Remote and TPS‑K key (optional) Use the Hilti chisels or other tools listed below. With these you will achieve higher performance and longer lifetime as the power tool and chisels have been optimized as a system.
  • Page 11: Technical Data

    4. Technical data Right of technical changes reserved. Rated voltage 120 V Rated current input 15 A Power tool TE 3000‑AVR 60 Hz Mains frequency 29.9 kg (65.92 lb) Weight of power tool Dimensions (L x W x H) 808 mm (31.81") x 610 mm (24.02") x 209 mm (8.23") 860/min Hammering frequency under load...
  • Page 12 power tool or these instructions to operate the 5.1.3 Personal safety power tool. Power tools are dangerous in the a) Stay alert, watch what you are doing and use hands of untrained users. common sense when operating a power tool. Do e) Maintain power tools.
  • Page 13 Some ex- a specially-prepared supply cord available from amples of these chemicals are: lead from lead- Hilti Customer Service. Check extension cords based paints, crystalline silica from bricks, con- at regular intervals and replace them if found crete and other masonry products and natural to be damaged.
  • Page 14: Before Use

    b) Ensure that the workplace is well ventilated. 5.2.6 Personal protective equipment Exposure to dust at a poorly ventilated workplace may result in damage to the health. c) If the work involves breaking right through, take the appropriate safety measures at the opposite side.
  • Page 15: Operation

    7. Operation 7.1.2 Removing the chisel DANGER Do not lay a hot insert tool down on flammable materials. This could cause the material to ignite, DANGER resulting in a fire. Always hold the power tool securely with both hands on the grips provided. Keep the grips dry, clean 1.
  • Page 16: Care And Maintenance

    Sections of the grip are made CAUTION from a synthetic rubber material. The power tool must always be checked by a Hilti Never operate the power tool when the ventilation specialist for internal or external damage whenever slots are blocked. Clean the ventilation slots carefully it has been dropped or fallen over.
  • Page 17: Troubleshooting

    To ensure that the power tool is always ready for use, it should be returned to Hilti for servicing in good time. are damaged or when the controls do not function 8.4 Maintenance faultlessly.
  • Page 18: Disposal

    NOTE If the fault cannot be eliminated by the measures listed above, have the power tool checked by Hilti Service. 10. Disposal Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled.
  • Page 19 Hilti Corporation LI-9494 Schaan Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com...
