OWNER'S MANUAL
Triathlon X-Class 610
Smart Technology Elliptical Trainer with Bluetooth
Model 6371

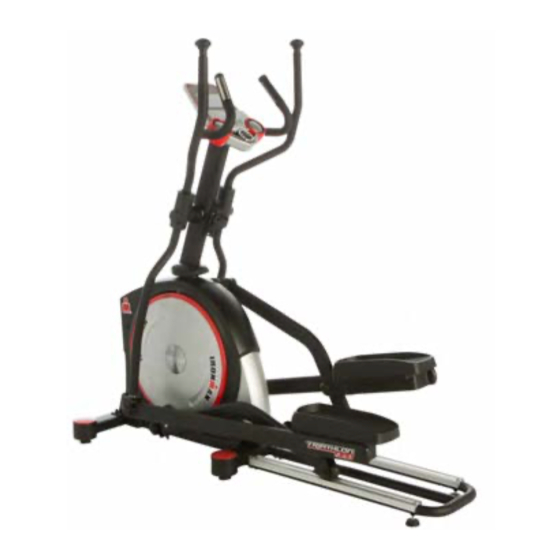

The specifications of this product may vary from this photo and are subject to change without notice.
IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon Corporation.
This product is licensed by the World Triathlon Corporation.
1

Advertisement

Table of Contents
loading

Related Manuals for Ironman Fitness triathlon X-Class 610

Summary of Contents for Ironman Fitness triathlon X-Class 610

  • Page 1 OWNER’S MANUAL Triathlon X-Class 610 Smart Technology Elliptical Trainer with Bluetooth Model 6371 The specifications of this product may vary from this photo and are subject to change without notice. IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon Corporation.
  • Page 2 6371.1-022615...

  • Page 3: Table Of Contents

    TABLE CONTENT OF CONTENTS SERVICE ------------------------------------------------------------------------ 4 LABEL PLACEMENT --------------------------------------------------------- 5 PRODUCT SAFETY ---------------------------------------------------------- 6 OVERVIEW DRAWING ------------------------------------------------------ 7 PARTS LIST -------------------------------------------------------------------- 9 BOX CONTENTS ------------------------------------------------------------- 11 ASSEMBLY --------------------------------------------------------------------- 13 COMPUTER -------------------------------------------------------------------- 23 - - - - - - - - - - - - - - - - - -...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-844-641-7922 Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number...

  • Page 5: Label Placement

    LABEL PLACEMENT Pour le service a la clientèle For customer assistance call: composer le: 1-844-641-7922 Numéro de série 1-844-641-7922 Serial number/ MADE IN TAIWAN /FABRIQU EN TAIWAN 8 am - 5 pm PST Du lundi au vendredi Mon - Fri 8:00 h - 17 h (HNP) SAFELY MOUNTING YOUR ELLIPTICAL MACHINE Monter sur l'exerciseur elliptique et en descendre...

  • Page 6: Product Safety

    PRODUCT SAFETY Basic precautions should always be followed, including the following safety instructions when using this equipment. Read all instructions before using this equipment. Read all the instructions in this manual and do warm up exercises before using this equipment. Before exercising and to avoid injuring your muscles, perform warm-up exercise for each muscle group is highly recommended.

  • Page 7: Overview Drawing

    OVERVIEW DRAWING...
  • Page 8 OVERVIEW DRAWING...

  • Page 9: Parts List

    PARTS LIST " 8 l i a " 8 l i a " 8 B27 C-ring ∅17 A09 Welded, Front Stabilizer Tube e l l Shaft ∅20 l i a Handlebar /Left Handlebar /Right " 6 " 6 " 4 "...
  • Page 10 PARTS LIST Washer ∅14 Washer ∅20.5 C07 Post Cover Left Post Cover Right Nut Cap M8 c i t Motor dlebar Cover A dlebar Cover B e l l l l o C22 Washer ∅17 Ø l i a...

  • Page 11: Box Contents

    BOX CONTENT BOX A (A01) Main Frame (A12) U Shape Guide Rail (A16) Stationary Handlebar (D02) Computer (D08)Adapter Lubricant 1 SET 1 SET 1 PCS 1 PCS 1 SET 1 PCS (C17/C18) Handrail Arm (C07/C08) Upright (C27) Water Bottle (A09) Front Stabilizer (A02) Upright Post Decorative Cover-A/B Post Decorative Cover...
  • Page 12 BOX CONTENT BOX X B C CONT TAINS S HAR RDWA & TO OOLS (B41)Screw w M8x25mm (B44) Bolt M8x20mm (B33)W Washer 5/16” ”x30x2.0T (B32)H Hexagon Hea ad Bolt M8x16mm (B40)Screw M5x16mm (B29) Nylon Nut M8x7.7T (B30)Cu urve Washer 28)Bolt M8x5 50mm x20x1.5T (T01) Hex Tool Phillips Screwdriver...

  • Page 13: Assembly

    ASSEMBLY 1. Remove Front Protection Bar Place a Styrofoam Block under the Main Frame (A01) for easier removal of the Front Protection Bar.This bar may be discarded. Loosen the Dome Nuts (B22) first and then the Bolts (B20) and Washers (B21) with the Hex Tool (T01) provided.
  • Page 14 ASSEMBLY 3. U Shape Guide Rail Installation Remove 6 Curve Washers M8 (B30) and 6 Bolts M8 (B13) from the Main Frame (A01) and use them to install the U Shape Guide Rail (A12) onto the 3 tubes of the Main Frame. IMPORTANT: After A12 is installed, tighten Bolts (B49) on the Aluminum Rail (F01).
  • Page 15 ASSEMBLY 5. Lubricating the Horizontal Axle and Crank Axle Apply some lubricant onto both horizontal axles of the Upright Post (A02) and both axles of the Crank (A11). Remark: Gently apply lubricant evenly on Upright Post (A02). Brush tool is recommended. Lubricant 6.Handrail Arm Installation Insert the Right Handrail Arm (A04) all the way onto the horizontal axle of Upright Post...
  • Page 16 ASSEMBLY 7. Pedal Installation Remove the 4 Screws (B23) from the Right Foot Pedal Tube (A06). Install Foot Pedal (C12) with the removed screws. Attach the Cushion Pad onto the Foot Pedal. Repeat this step for the left side (T01)Hex Tool with Phillips Screwdriver 8.
  • Page 17 ASSEMBLY 9. Handrail Arm Assembly Remove Bolt (B24), Washer (B52) and Nut (B29) from the Right Handrail Arm (A04) Put the Right Handrail Arm onto the Right Foot Pedal Tube (A06). Install with the previously removed hardware by inserting the Allen Wrench into the Bolt (B24) and tightening the Nut (B29) with the Tools (T01/T02).
  • Page 18 ASSEMBLY 10. Stationary Handlebar Installation Carefully, route both cables from Upright Post (A02) through the square hole of Stationary Handlebar (A16). Ensure the cables are not pinched or damaged during installation. Attach the Stationary Handlebar on the Upright Post with 2 Screws (B41) and tighten. Cable (T03)Allen Wrench (M5) (B41) Screw M8x25mm...
  • Page 19 ASSEMBLY 12. Computer Installation Remove 4 Screws (B17) from the back of the Computer (D02) Connect both wires from the Stationary Handlebar (A16) to the Computer. Use the 9 pin white socket port. Gently tuck the cables into the Stationary Handlebar and ensure the wires are not pinched.
  • Page 20 ASSEMBLY 13. Post Cover Installation Attach the Post Cover (C07, C08) onto Upright Post (A02) with 2 Screws (B40) (T01)Hex Tool with Phillips Screwdriver (B40) Screw M5x16mm 2PCS 14. Handlebar Cover Installation Attach Handlebar Covers (C17, C18) onto the Right Handrail Arm (A04) with 4 Screws (B40) Repeat this step for the left side.
  • Page 21 ASSEMBLY 15. Bottle Holder Installation Remove the 2 Screws (B45) from Upright Post (A02) Attach the Bottle Holder (C27) onto the Upright Post with the removed screws. (T01)Hex Tool with Phillips Screwdriver 16. AC Adaptor Installation Connect the AC Adaptor (D08) to the AC Cable Plug (D09) on the front of the Main Frame (A01)
  • Page 22 ASSEMBLY 17. Adjusting the Foot Pads Turn the Foot Pads (C05/C21) as necessary to ensure all 6 Foot Pads touch the floor. This will prevent the elliptical from wobbling during exercise and reduce noise.

  • Page 23: Computer

    COMPUTER Speaker input BUTTON FUNCTION: ON/OFF FAN Turn the fan on or o QUICK START To start or stop workout STOP UP/DOWN To select training mode or adjust function value RESET In stop mode, press the button to return to main menu. Press and hold for 2 seconds to reboot the computer and reset all values to 0.
  • Page 24 COMPUTER DISPLAY FUNCTION Function SettingRange Unit DisplayRange TIME 00:00~99:59 ±1;00:00~99:00 Minutes DISTANCE 0.0~99.99 ±1;00:00~99:00 CALORIES 0~9999 ±10;00:00~9990 PULSE 30~230 ±1; 30~230 SPEED 0.0~99.9 0~999 WATT 0~999 ±5; 10~350 OPERATING PROCEDURE 1.POWER ON/OFF – After connecting the power, the console will power on with a long beep sound, LCD display all segments and then enter into User Profile set up mode.
  • Page 25 COMPUTER 2.USER PROFILE Press UP/DOWN to select User # Press UP/DOWN to turn profile editing on or off If you choose EDIT ON, you can edit the profile values below. Use UP/DOWN and ENTER to input profile value of sex, age, height and weight. The console needs your profiles to better calcu- late the workout values 3.WORKOUT SELECTION...
  • Page 26 COMPUTER 3.2. Program Mode Press UP or DOWN to select between 12 different workout programs and then press ENTER to set up Target Time . Press START to start workout. Resistance levels can be adjusted during exercise by pressing UP or DOWN. Press STOP to pause the workout reading, and you can press START to continue the workout.
  • Page 27 COMPUTER 3.3 User Program User Program allows you to create your own workouts based on resistance level and time intervals. Press UP and DOWN to create the profile, press ENTER to input additional resistance level, then press and hold ENTER for 2 seconds to exit profile setting. Press START to start work out. Standard work out time is 20 minutes.
  • Page 28 COMPUTER 100%...
  • Page 29 COMPUTER 3.5 WATT Press UP and DOWN to setting WATT and Time target. Press START to start work out. Press STOP to pause the workout reading, and you can press START to continue the workout. Press RESET to return to main page 4.
  • Page 30 COMPUTER 5. Bluetooth Mode Enable Bluetooth on your smart device, search for and connect to the console (name is on the back of the console). When your smart device is connected to the console, the Bluetooth symbol will appear on the LCD. Please note: 1.

  • Page 31: Heart Rate Chest Belt

    HEART RATE CHEST BELT 1. For the most accurate readings, the transmitter belt must have direct contact with the skin. 2. For accurate readings, stay within 4 feet of the computer. 3. The belt will send your pulse to the computer. 4.

  • Page 32: Trouble Shooting & Maintenance

    TROUBLE SHOOTING & MAINTENANCE TROUBLESHOOTING Computer not working correctly Check to make sure the computer cable is connected securely. Check that the AC Adaptor is securely connected to the Power Supply Cable and to the electrical wall outlet. The elliptical trainer wobbles or shakes when in use Turn the adjustable leveler on the front stabilizer or U shape rail as needed to level the elliptical trainer.

  • Page 33: Warm Up

    WARM UP Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward.
  • Page 34 WARM UP Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward.

  • Page 35: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free fromdefects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. Paradigm’s obligation under this warranty applies to the following: COMPONENT LENGTH OF WARRANTY...

  • Page 36: Fax Form

    Paradigm Health & Wellness, Inc. PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ (Email Address) ____________________________________ SERIAL#: __________________________________________ MODEL#: __________________________________________ PURCHASE DATE: ______________________________________________...
