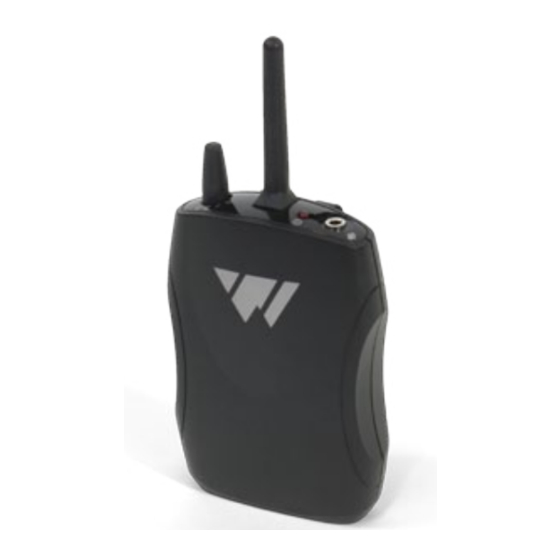

T863
Hearing Helper
Operating Instructions
1. Install AA batteries: Open the battery
compartment by lifting the tab on the
back of the transmitter with your finger.
To remove depleted batteries, pull up
on the fabric strip.
IMPORTANT: If non-rechargeable batteries are being installed, slide the battery selection
switch in the battery compartment to the "Alkaline" position. See figure 1. If installing
NiMH (or rechargeable) batteries, slide the battery selection switch to the "NiMH" position.
Figure 1: Battery selection switch
BATTERY SELECTION
BATTERY
COMPARTMENT
NOTE PROPER
POLARITY
Press the batteries into place over the fabric strip. Be sure to observe proper
polarity (+/-). Damage due to improper battery installation may void the warranty on
the product. Close the battery door. LED will flash when the batteries are getting
low; continue to use until the sound becomes weak or distorted, or the unit quits
operating, then replace or recharge batteries.
FM Transmitter
®
SWITCH
Instructions For Use and Care
Mic Adjust
–
AA
+
AA
+
–
A292
MAN 136E
Advertisement
Table of Contents
Related Manuals for Williams Sound Hearing Helpe T863
Summary of Contents for Williams Sound Hearing Helpe T863
-
Page 1: Operating Instructions
T863 Hearing Helper FM Transmitter ® Instructions For Use and Care Operating Instructions 1. Install AA batteries: Open the battery compartment by lifting the tab on the back of the transmitter with your finger. To remove depleted batteries, pull up on the fabric strip. -
Page 2: Microphone Jack
If the T863 Transmitter is equipped with rechargeable batteries, up to 12 units can be charged at one time in the optional CHG 3512 multi-charger. Refer to the charger instruction sheet for complete charging instructions. For ordering information, please contact Williams Sound at 800-843-3544. MAN 136E... -
Page 3: Belt Clip Installation
Microphone Gain Adjust If necessary, the microphone gain control located in the battery compartment on the back of the T863 transmitter, can be increased or decreased to meet the demands of specific listening applications. The microphone gain control in figure 3 , can be adjusted by using a tuning wand or small screwdriver. -
Page 4: Safety Information
Product Recycling: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center or return the product to the factory for proper disposal. -
Page 5: System Specifications
System Specifications R863 Receiver Dimensions: 155 mm H x 72 mm W x 30 mm T (6.1” H x 2.85” W x 1.2” T) Weight: 82 grams (2.89 oz.), no batteries Color: Black Material: ABS/Polycarbonate, shatter-resistant Battery Type: Two (2) AA 1.5 V Non-rechargeable Alkaline batteries (BAT 001), 100 mA nominal current drain, 20 hours approx. -
Page 6: Limited Warranty
Williams Sound products are engineered, designed and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the T863 Transmitter against defects in materials and workmanship for THREE (3) years. During the first three years from the purchase date, we will promptly repair or replace the T863 Transmitter.
