Williams Sound T1-216 Specification Sheet

ONE 2 ONE ™
Description:

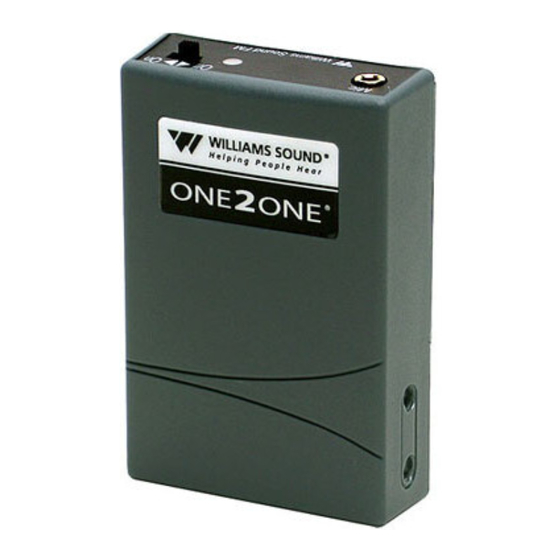

The PPA T1-216 is a narrowband, single-channel, body-pack style transmitter that operates on the
216 MHz bandwidth. The T1-216 will operate up to 100-300 feet and accommodate any number of
users with additional receivers. The T1-216 features an impact-resistant case and a belt clip for
hands-free operation. Each transmitter is frequency synthesized and crystal controlled for rock-solid
tuning. Each transmitter features drop-in charging points, which allows up to 16 units to be
charged at once in a single CHG 1600 multi-charger. The T1-216 is portable, requires no installation
and is available with a variety of microphone options.
Applications:
• Group Tours • Destination Marketing Organizations • Cruise Ships • Tourism Offices • University Tours
• Large-Scale Guided Attractions • Museum & Presentation Centers • Factory/Plant Tours
• Conferences Requiring Language Interpretation • Chambers of Commerce
T1-216 Transmitter:
Dimensions:
Weight:
Color:
Battery Type:
Operating Frequencies:
Stability:
Modulation:
RF Output:
Freq Response:
Signal-to-Noise Ratio:
Compressor:
Transmit Antenna:
Microphone:
Controls & Indicators:
Mic Connector:
Charging Contacts:
Approvals:
Warranty:
*90 days on accessories.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
©2007, Williams Sound Corp. MCAT 016C
FM Transmitter •
3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm)
4.4 oz (125 g) with batteries
Neptune blue, shatter-resistant polypropylene
Two (2) AA 1.5 V non-rechargeable Alkaline batteries
(BAT 001), 120 mA nominal current drain, 8 hours approx. life
(OR) two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026),
120 mA nominal current drain, 6 hours per charge approx.,
recharges in 14–16 hours, uses CHG 1600 Multiple
Battery Charger
216.325 MHz, standard (216.425, 216.625, 216.725 MHz
optional)
± .005%, crystal reference, PLL
Narrow-band FM, 10 kHz P-P, 100 µS pre-emphasis
1.5 mW typical
100 Hz to 10 kHz P-P, ± 3 dB at 1% max. THD
55-60 dB, with R1-216 Receiver
Compressor uses adjustable slope and noise gate
Integral with 39" microphone cord
Noise-cancelling, headset type, 39" cord, 3.5 mm mono
phone plug (MIC 044)
On/Off switch, slide-type; "On" Indicator LED
3.5 mm mono phone jack
Designed for use with CHG 1600 & CHG 200 Multiple Battery
Chargers
FCC, WEEE
5 years, parts and labor *
Model T1-216
1
Off On
Mic
Mic
FM
Jack
Williams Sound FM
T1-216 Top
T1-216 Top
Williams Sound
Williams Sound
®
Hearing Helper
®
Hearing Helper
T1-216 Front
T1-216 Front
On/Off
Switch
ON
Indicator
