- Page 1 IR T1 Small Area Infrared Transmitter USER MANUAL MAN 212e...
-
Page 2: Important Safety Instructions
• Be advised that different operating voltages require the use of different attachment plugs. Check the voltage in your area and use the correct type. • Use only the power supply provided by Williams Sound. Other power supplies may have similar specifications, but may not be equivalent in emissions ratings, in-rush current, etc. -
Page 3: Recycling Instructions

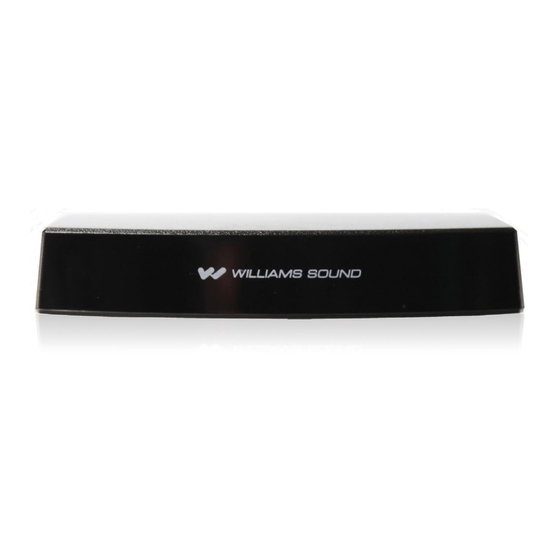

Important: Remember to point the transmitter towards the listening audience. The front is the surface with the Williams Sound logo as shown on the cover of this manual. See Figure 1. -
Page 4: Connections & Indicators
2. Plug the USB end of the “USB to micro USB cord” into the power supply. 3. Plug the micro USB end of the “USB to micro USB cable” into the IR T1. 4. Plug the power supply into an AC outlet. -
Page 5: Sleep Mode
The IR T1 will accept line level mono or stereo audio inputs. See figure 3 for audio input cable configuration. The IR T1 uses a limiter circuit to control the gain of line level audio for optimum transmission. The yellow Audio Indicator LED should stay on when when an adequate level of input audio is present. -
Page 6: Troubleshooting
• Make sure the IR T1 is plugged in. • Make sure the audio input is connected properly. Refer to figure 3. • Make sure an active and adequate level of audio signal is being sent to the IR T1 transmitter. -
Page 7: Infrared Transmitter Specifications
IR T01 Small Area Loop Infrared Transmitter Infrared Transmitter Specifications Model IR T1 Dimensions: Width: 5.65”(14.4 cm), Depth: 3.65”(9.3 cm), Height: 1.15”(2.9 cm) Weight: 8.3 oz (235 g) Color: Black Power Supply: TFP 055 – 100-240VAC 50/60Hz Input, 5VDC, 0.2A... -
Page 8: Limited Warranty
Sound warrants the IR T1 infrared listening system against defects in materials and workmanship for two (2) years. During the first two years from the purchase date, we will promptly repair or replace the IR T1 infrared listening system. Microphones, earphones, headphones, batteries, chargers, cables, carry cases, and all other accessory products carry a 90-day warranty.
