Pride Sundancer Owner's Manual

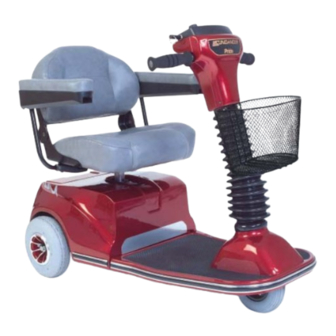

Pride sundancer mobility scooter.
Hide thumbs

Advertisement

Owner's Manual
The Ultimate In Style & Performance
®
Unit 106
Heyford Park Camp Road
Upper Heyford Oxfordshire OX25 5HA
www.pridemobility.com

Advertisement

   Also See for Pride Sundancer

   Summary of Contents for Pride Sundancer

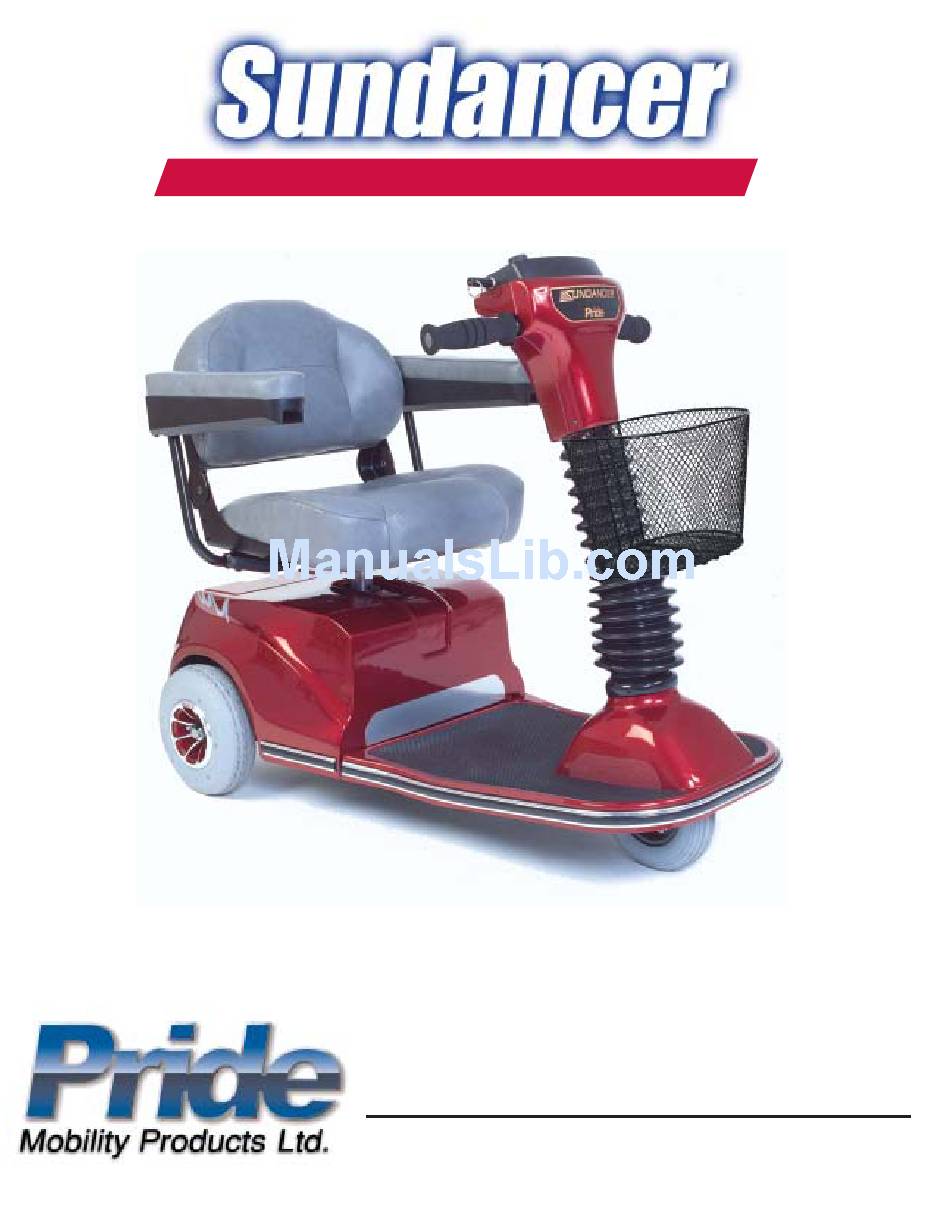

  • Page 1 Owner’s Manual The Ultimate In Style & Performance ® Unit 106 Heyford Park Camp Road Upper Heyford Oxfordshire OX25 5HA www.pridemobility.com...
  • Page 2 Using your Pride product safely depends upon your diligence in following the warnings, cautions, and instructions in this owner’s manual. Using your Pride product safely also depends upon your own good judgement and/or common sense, as well as that of your provider, caregiver, and/or healthcare professional.
  • Page 3: Table Of Contents

    III. SPECIFICATIONS ........................9 IV. DESCRIPTION .......................... 11 BATTERIES AND CHARGING .................... 16 VI. OPERATION ..........................20 VII. COMFORT ADJUSTMENTS....................22 VIII. DISASSEMBLY AND ASSEMBLY ..................24 IX. TROUBLESHOOTING ......................27 CARE AND MAINTENANCE ....................28 XI. WARRANTY ..........................29 Sundancer...
  • Page 4: Introduction

    Your understanding of these instructions is essential for the safe operation of your new Pride Scooter. Pride is not liable for damage to property or personal injury arising out of the unsafe use of a Pride Scooter. Pride is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to following the instructions and recommendations set forth in this manual or any other instructions or recommendations contained in other Scooter related literature issued by Pride or contained on the Pride Scooter itself.
  • Page 5 I N T R O D U C T I O N My Authorised Pride Provider Is: Name:_______________________________________________________________________________ Address:_____________________________________________________________________________ Quick Reference Information: Scooter Model:________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your warranty card or owner’s manual, write to us and we will be glad to send you a new one immediately.
  • Page 6: Safety

    Make certain that the seat is locked into place and that the key is removed from the key switch before getting on or off of your Sundancer, and make certain that the seat is in a locked position when you are operating your Scooter.
  • Page 7 S A F E T Y As you begin to use your Sundancer during your daily activities, you will encounter situations that may require some practice. Simply take your time as you operate your Scooter and you will soon be in full and confident control as you maneuver through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
  • Page 8 Pride conducted controlled incline testing with the Sundancer’s seat in the highest position, adjusted backward on the seat base to the farthest rearward position. This testing indicates that your Sundancer’s ability to travel up inclines is affected by your weight, your Scooter’s speed, your angle of approach to the incline, and your Scooter setup.
  • Page 9: Specifications

    (1") 1.5 cm 80˚ 39 cm - 44.5 cm (15.5" - 17.5") 8.8 cm (3.5") 3 cm (1.25") Figure 4. Sundancer Specifications 44.5 cm (17.5") 106.7 cm (42") 38 cm (15") 78.75 cm 78.75 cm 58 cm - 81 cm (31")
  • Page 10 Tray: 2.3 kg (5 lbs.) Front-to-rear Lockup: Lock pin and lever system Ground Clearance: 8.8 cm (3.25”) Cane/crutch holder, cup holder, front bumper, headlight, oxygen holder, power seat assembly, Optional Accessories: rear basket, rear bumper, rearview mirror, safety flag, taillight, walker holder Sundancer...
  • Page 11: Description

    D E S C R I P T I O N Your Sundancer is a motorized electric Scooter designed to enhance your personal mobility. It is an indoor/ outdoor Scooter that was designed to travel primarily on smooth surfaces such as sidewalks, roads, parking lots, floors, and driveways.
  • Page 12 Sundancer will come to an abrupt stop! Power Seat Switch (Optional) If your Sundancer is equipped with a power seat, this switch enables you to raise and lower the seat. For power seat adjustment directions, see VII. “Comfort Adjustments.”...
  • Page 13 Sundancer. The anti-tip wheels are at the rearmost part of your Sundancer. See figure 7. Refer to VIII. “Disassembly and Assembly” for instructions on removing the rear shroud.
  • Page 14 Allow a minute or so for your Sundancer’s electronics to “rest.” n Push in the reset button to reset the breaker. n If the breaker trips frequently, you may need to charge your batteries more often or have your Pride provider perform a 50-amp load test on your Sundancer’s batteries.
  • Page 15: Optional Accessories

    I V . D E S C R I P T I O N OPTIONAL ACCESSORIES For information concerning these optional accessories, see your authorized Pride provider. Oxygen Bottle Holder Cup Holder Walker Holder Rear Bumper Rear Basket Front Basket (square)
  • Page 16: Batteries And Charging

    3.5-amp charging system. Two important points to remember are: n Charge your Sundancer’s batteries with the supplied onboard battery charger prior to using it for the first time. n Keep your batteries fully charged to keep your Sundancer running smoothly.
  • Page 17 8 to 14 hours after daily use. 2. If you use your Sundancer once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time. 3. Keep your Sundancer’s batteries fully charged.
  • Page 18 What type and size of battery should I use? We recommend deep-cycle batteries that are sealed and maintenance free. Both sealed lead-acid (SLA) and gel cell are deep-cycle batteries that are similar in performance in your Sundancer. Do not use wet-cell batteries, which have removable caps.
  • Page 19 It may take a few days for the temperature of your Sundancer’s batteries to stabilize and adjust to their new room or ambient temperature.
  • Page 20: Operation

    Insert the key into the key switch. n With your hands on the handgrips, use your thumb to push the right throttle lever to disengage your Sundancer’s brakes and move forward; the electric brake automatically disengages and the Sundancer accelerates smoothly to the speed you set with the speed adjustment dial.
  • Page 21 Carefully get out of the seat and stand to the side of your Scooter. n You may, if you wish, leave the seat facing to the side to facilitate boarding your Scooter the next time you are going to operate it. Sundancer...
  • Page 22: Comfort Adjustments

    The seat can be repositioned to one of three different heights. See figure 10. 1. Remove the seat and shroud from your Sundancer. See VIII. “Disassembly and Assembly.” 2. Use the attached ring to pull and remove the ball detent pin from the seat post tower.
  • Page 23: Seat Rotation

    ARMREST ADJUSTMENT KNOBS FRONT-TO-BACK SEAT ADJUSTMENT You can reposition the Sundancer’s seat forward or rearward. See figure 12. 1. Remove the seat from your Sundancer. See VIII. “Disassembly and Assembly.” 2. Use a 7/16” wrench to remove the seat position adjustment screws.
  • Page 24: V I I I . D I S A S S E M B L Y A N D A S S E M B L Y

    2. Ensure the seat is locked into position, then lift the seat up and off of your Scooter. 3. Gently lift the rear shroud off of your Sundancer. If your Scooter is equipped with rear lights, you will not be able to fully remove the rear shroud until you perform step 4.
  • Page 25 10. Grab the handle grip on the tiller, push down on the release lever, and gently lower the tiller down to the center of the Sundancer chassis until it is fully lowered. 11. Push the cam locks forward and remove the ball detent pins. See figures 18 and 19.
  • Page 26 10. Plug the large, white front-to-rear connector from the front section of your Sundancer into the mating plug found on the control module cover on the utility tray at the rear of your Sundancer. The two orange dots present on both plugs should be adjacent to each other and enable quick plug mating.
  • Page 27: Troubleshooting

    Obtain a battery load tester at most any automotive parts control lever. store; follow the directions supplied with the load tester. If you experience any problems with your Sundancer that you are not able to solve, immediately contact your authorized Pride provider for information, maintenance, and service. Sundancer...
  • Page 28: Care And Maintenance

    M A I N T E N A N C E Your Sundancer requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride provider.
  • Page 29: Warranty

    This guarantee does not extend to those items which may need replacement due to normal wear and tear (tyres, belts, bulbs, upholstery, plastic shrouds, motor brushes, fuses, and batteries), or damage to the product caused by misuse or accident for which Pride or its agent cannot be held responsible. This warranty does not include labor or service calls.
  • Page 30 N O T E S Sundancer...
