REAR SECTION
The onboard battery charger, batteries, electronic controller module, main circuit breaker reset button, manual
freewheel lever, and the motor/transaxle assembly are located on the rear section of your Sundancer. The anti-tip
wheels are at the rearmost part of your Sundancer. See figure 7. Refer to VIII. “Disassembly and Assembly” for
instructions on removing the rear shroud.
ONBOARD
BATTERY
CHARGER

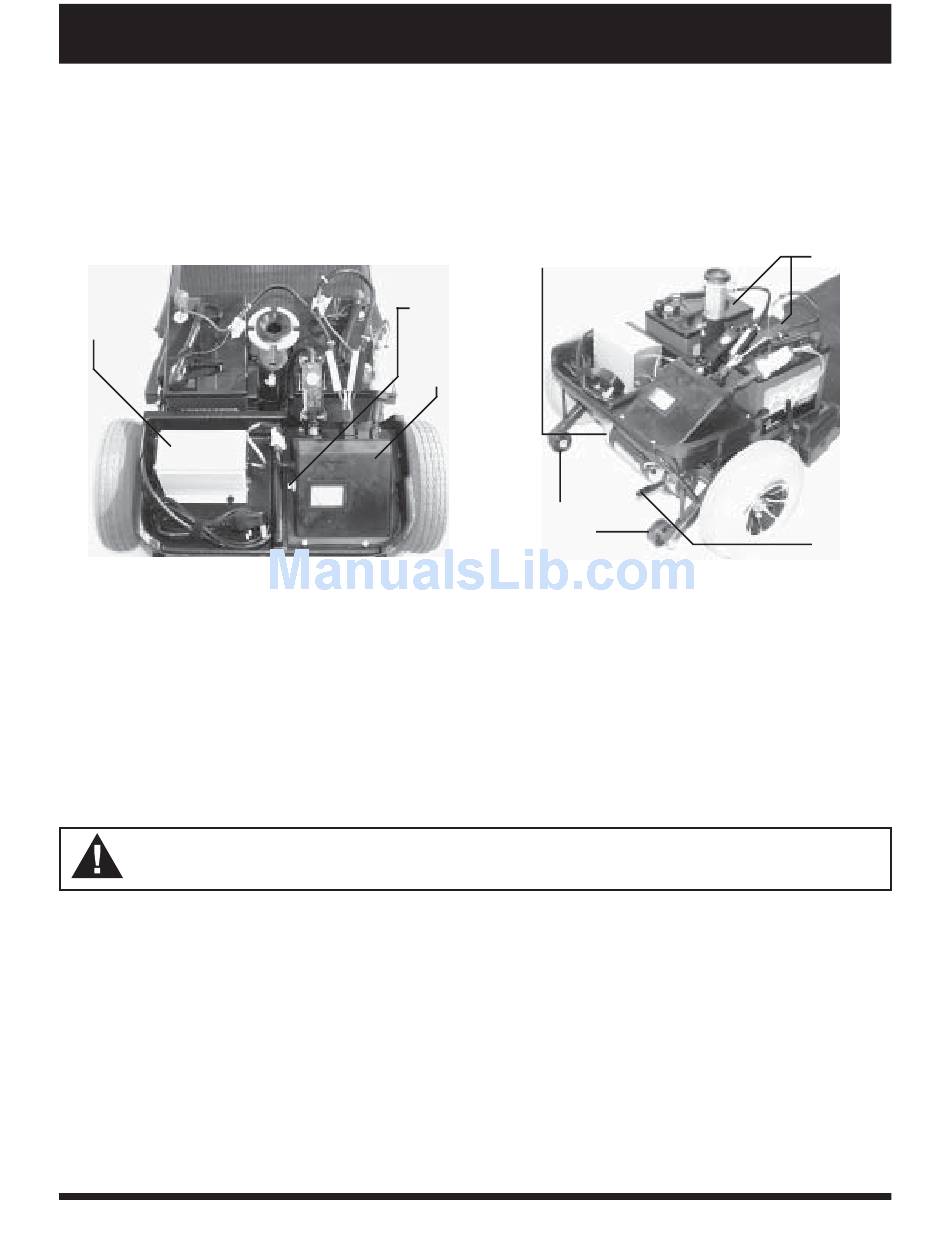

Figure 7. Rear Section
Motor/Transaxle Assembly
The motor/transaxle assembly is the electromechanical unit that converts the electrical energy of your Scooter’s
batteries into the controlled mechanical energy that drives the Sundancer’s wheels.
Electronic Controller Module
This module is located behind the batteries and at the forward right corner of your Sundancer’s rear section. The
controller module receives electrical signals from the console controls and sends power to the motor, the brakes,
and the optional lighting system.
WARNING! Do not expose the electronic controller module to moisture. If it does become exposed
to moisture, do not attempt to operate your Sundancer until it has thoroughly dried.
Batteries
The batteries store the electrical energy that powers your Sundancer. For directions on charging your batteries, see
V. “Batteries and Charging.”
Anti-tip Wheels
The anti-tip wheels are an integral and important safety feature of your Sundancer. Do not, under any circumstances,
remove the anti-tip wheels from your Sundancer.
Sundancer
I V .
D E S C R I P T I O N
MAIN CIRCUIT
BREAKER RESET
BUTTON
ELECTRONIC
CONTROLLER
MODULE
MOTOR/TRANSAXLE ASSEMBLY
ANTI-TIP
WHEELS
BATTERIES
MANUAL
FREEWHEEL
LEVER
