Compass Model 7HV Instruction Manual page 9

3

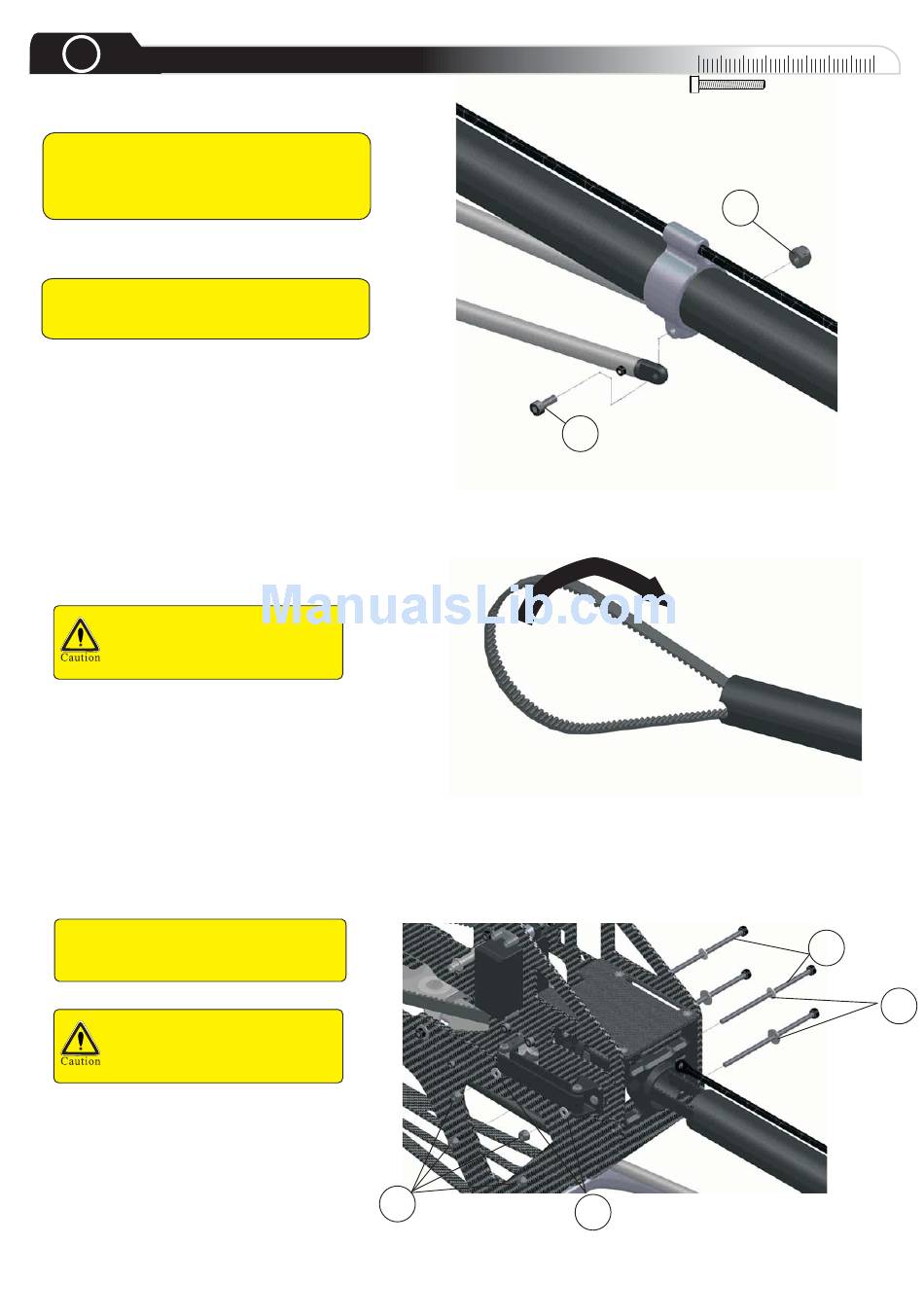

Boom & Tail Rotor
Tip
: Slide the tail boom clamp over the
boom. Unscrew one of the ball links on the
tail control rod. Screw it back on the
control rod after installing it.
Tip
: Just install the screw, struts and nut
temporary without tightening them to
much.
Twist the tail belt 90° to the
right before inserting it
between the idler pulleys.
Slide the Tail Boom through the tail
boom mount and between the idler
pulleys
Do not crimp the tail belt and
be sure that it is not turned in
the wrong direction or more
