Tail Servo Installation - Compass Model 7HV Instruction Manual

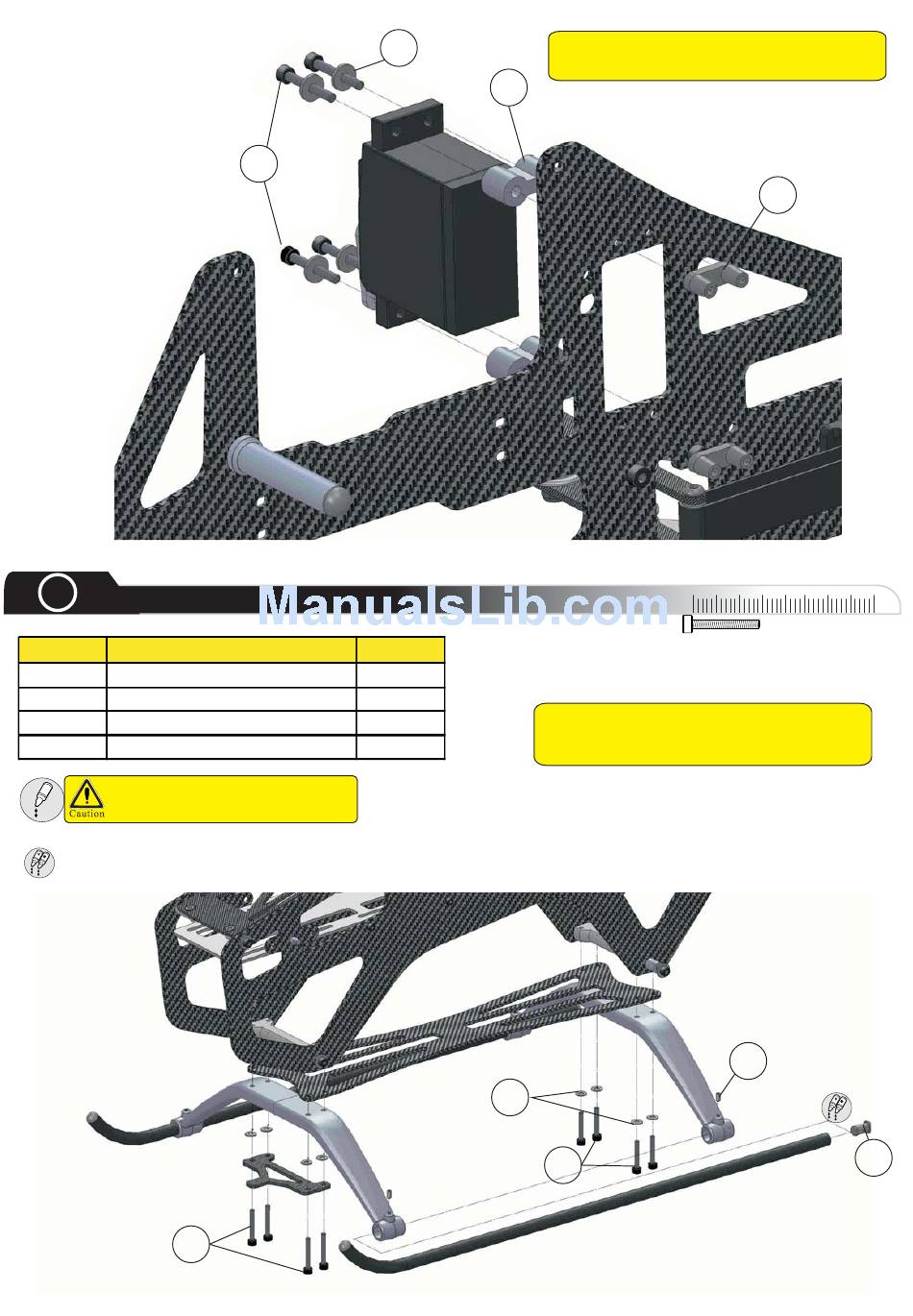

Tail Servo
Installation
2
Landing Gear
Pos Description
1 M3x20 Socket Head Bolt
2 3mm Washer
3 3x5mm Set Screw
4 Skid Caps
Use medium threadlock on all
screws going into metal parts
Use AB Glue
1
9
7
Qty
8
8
4
4
Tip
: Do not over tighten the four servo
screws as it may damage the plastic parts.
6
Tip
: Do not over tighten the four 3 x 5mm
set screws as it can damage the landing
struts.
2
1
8
0 10 30
20
3
40
4
