Suggested Equipment Position

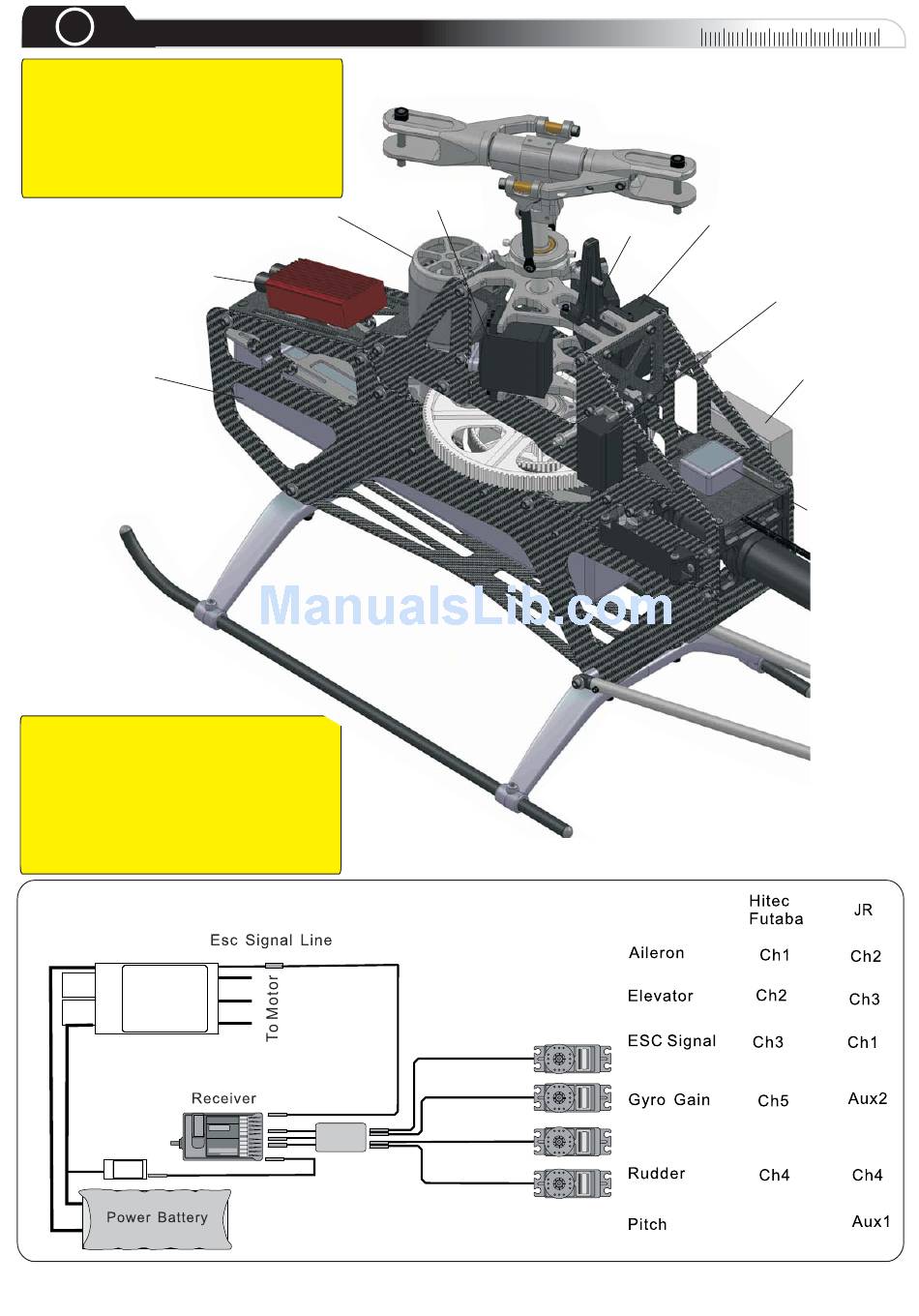

Take some time for the wiring.
Good fixing of the components
and wires is important for a safe
operation of your rc-equipment.
Read the following wiring tips
carefully.
Aileron
Brushless Motor
Elevator
Pitch
Esc
Rudder
12S Battery
Receiver
FBL Unit
Please read the manual of your
FBL-Unit, transmitter and
receiver very attentively. Each
FBL-Unit is different, follow the
manuals step by step and ask for
help if you have problems with the
programming and installation.
ESC
FBL
BEC
Ch6
