Multi-Wave PE653-PE953 Installation Guide
Section 1:
System Overview
The Intermatic Multi-Wave Pool/Spa PE653RC Wireless Control System brings wireless control to
a new level of simplicity and affordability. The following features make the system distinctive:
•
Easy to Use — with simple, push button controls and a clear, easy-to-read display panel
•
Everything You Need — includes the functionality and control called for in nearly every
installation.
•
Dependable — with Z-Wave
inexpensive repeaters that plug into available electrical outlets to help extend the RF signal
range of the entire system. Z-Wave technology eliminates intermittent signal problems
experienced with many other systems.
•
Cost Efficiency — a superior system, easier to install and maintain, with better
dependability, and at a cost that's competitive with any other system available.

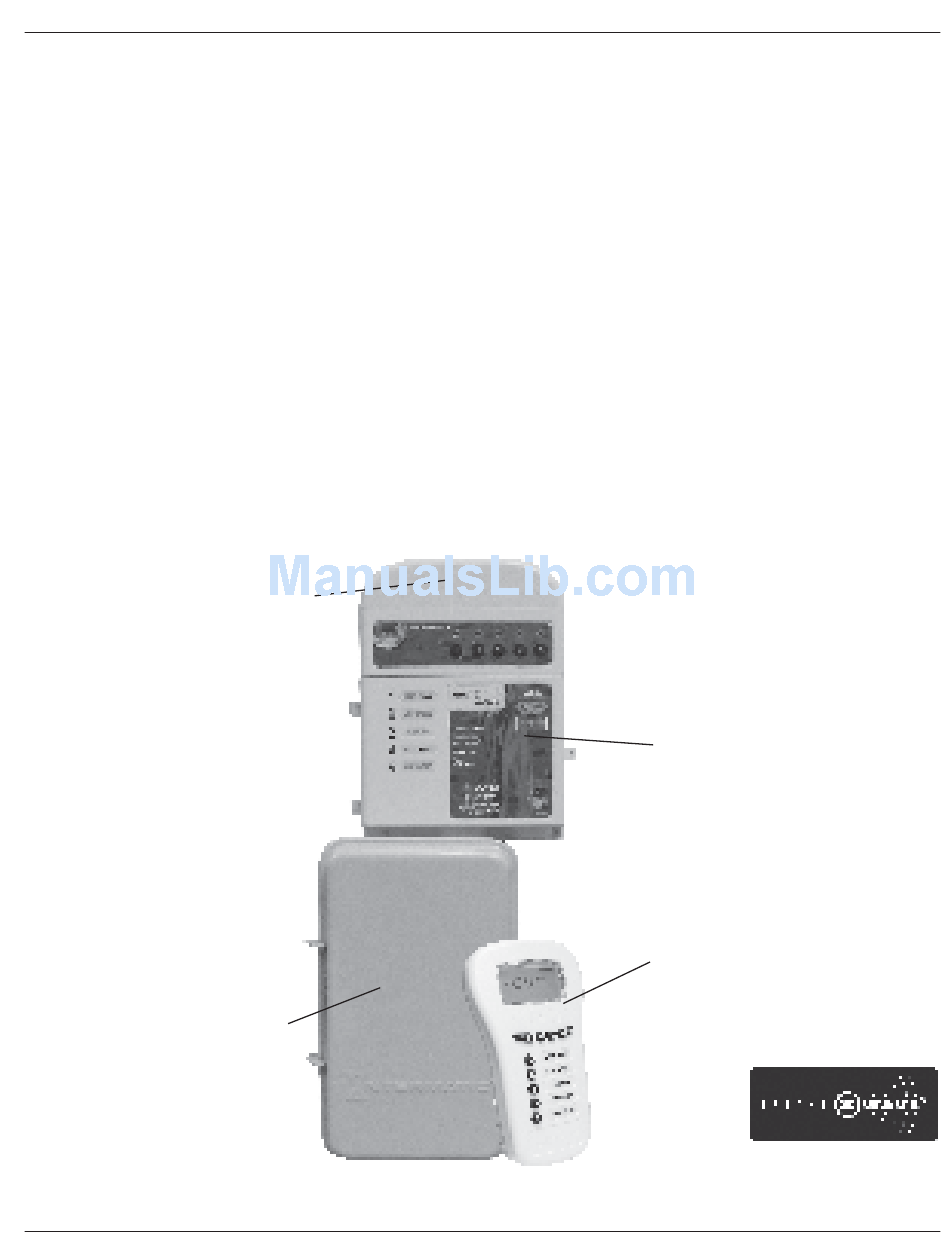

The standard configuration for the Multi-Wave PE653RC Pool/Spa Wireless Control System
configuration is shown in Figure 1-1. You can order individual components for a custom
configuration or system as indicated.
Receiving Device (PE653)
Antenna can be remotely located
using a Standard Cat 5 Ethernet
cable with RJ45 plugs.
Internal selector switch for
120 / 240 VAC operation
Spare 0.10 Amp Fuse
Offers timer capability and can
control up to five preprogrammed
configurable circuits.
Metal Indoor/outdoor enclosure
provides for easy and secure
mounting and a large space for
conduit wire connections.
technology that lets you expand your system with
®
Figure 1-1
Copyright © 2010 Intermatic, Inc.
Two-wire connection (RS485) for
control of variable-speed motors
Terminals for two-wire
connections to remote
temperature sensors
Weatherproof outdoor enclosure
can be mounted directly to an
existing enclosure.
Approved snap-in wiring
separator for use with low
voltage heater control circuit
Hand-Held Controller (PE953).
Additional units can be
ordered separately.
Z-Wave is a registered trademark of
Sigma Designs and/or its subsidiaries.
