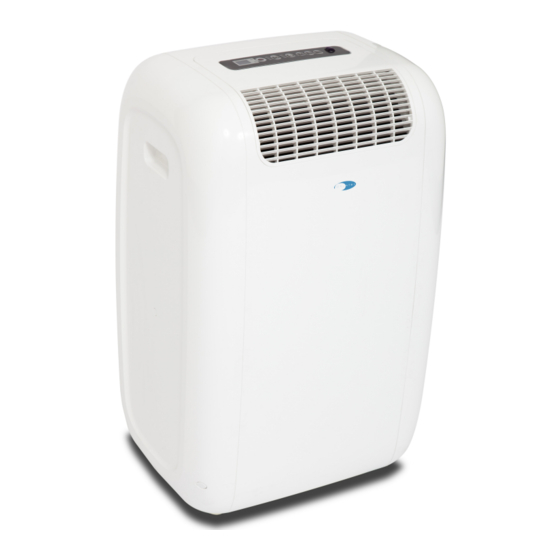

- Page 1 WHYNTER COOLSIZE 10000 BTU COMPACT PORTABLE AIR CONDITIONER Model # : ARC-101CW INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE DISPOSAL INFORMATION SAFETY PRECAUTIONS INTRODUCTION / TECHNICAL DATA PARTS IDENTIFICATION 6 - 7 CONTROL PANEL INSTALLATION 9 - 11 OPERATION INSTRUCTIONS 12 - 13 REMOTE CONTROL CARE AND MAINTENANCE TROUBLESHOOTING 16 - 17 WARRANTY INFORMATION... -
Page 3: Disposal Information
Please follow the instructions provided in this user guide to obtain the very best performance from your portable air conditioner and take full advantage of the many features your portable air condi- tioner offers you. We trust that your Whynter air conditioner will provide the performance and relia- bility that we stand for. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN USING YOUR AIR CONDIITIONER, FOLLOW THESE BASIC WARNING PRECAUTIONS: Before the appliance is used, it must be properly positioned and installed as detailed in this manual. Do not under any circumstances cut or remove the third (ground) prong from the power cord ... -
Page 5: Introduction / Technical Data
INTRODUCTION / TECHNICAL DATA HOW IT WORKS The Whynter compact CFC-free, lead-free, and energy efficient 10,000 BTU portable air condi- tioner, helps you stay cool while working with better environmental standards and reducing ener- gy consumption. This compact portable air conditioner, specially designed to be mobile, can be easily setup in almost any indoor location and is most commonly used in data closets / server rooms, bedrooms, classrooms and garages / workshops. -
Page 6: Parts Identification
PARTS IDENTIFICATION Control Panel Front Air Vent / Louvers Handle Casters (four) Air Filter Air Intake Upper Drain Port Air Exhaust Condenser Air Intake Lower Drain Port Power Cord... - Page 7 PARTS IDENTIFICATION ACCESSORY IMAGE ACCESSORY DESCRIPTION QUANTITY Exhaust Hose 1 piece Window slider kit 1 set Fixture 1 piece Screws 4 pieces Hose connectors 2 pieces Cover 1 piece Remote control 1 piece Operating Conditions Mode Room Temperature Cool Higher than 64°F Higher than 60°F Dehumidify Leakage-Current Detection and Interruption (LCDI)
-
Page 8: Control Panel
CONTROL PANEL LCD Display Power Button Timer Button Remote Sensor Mode Control Timer / Temperature Set Control Fan Speed Button Indication symbols on LCD : Cooling mode High Fan speed Display set temperature Dehumidifying mode Stop display Medium Fan speed Display timer setting: Auto Switch On/Off Fan only mode Low Fan speed... -
Page 9: Installation
INSTALLATION WARNING: NEVER OPERATE THE AIR CONDITIONER WITHOUT THE AIR FILTER Your Whynter portable air conditioner is equipped with a washable pre-filter and an Activated Carbon Filter. The washable pre-filter removes large particles such as dust, pet hair and dander. - Page 10 4. Pull the clip to secure the hose connector. Only extend the both hoses to the necessary length. We do not recommend extending more than 9' long. If you are interested in purchasing an additional 5’ exhaust hose, please contact info@whynter.com for retail sales infor- mation.
-
Page 11: Installation
5. Cut the foam seal to the length and seal the open gap between the top window sash and outer window sash. Show in Fig. 6d. **If you are interested in purchasing optional accessories, please contact info@whynter.com for retail sales infor- mation. -
Page 12: Operation Instructions
OPERATION INSTRUCTIONS BEFORE USING YOUR APPLIANCE Remove the exterior and interior packing Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation SWITCHING ON/OFF THE AIR CONDITIONER The appliance can be switched ON or OFF by pressing the POWER button on the control panel or the ON/OFF but- ton on the remote control... -
Page 13: Operation Instructions
OPERATION INSTRUCTIONS TIMER (DELAYED SWITCH ON / OFF) FUNCTION This function mode enables a delayed switch ON or delayed switch OFF of the air conditioner. The time (hours) de- lay can be set, enabled and disabled. The timer is adjustable between 1 - 24 hours. SETTING SWITCH OFF TIMER With the air conditioner operating in any function mode, press the Timer button. -
Page 14: Remote Control
REMOTE CONTROL The portable air conditioner can be switched on by the remote control. To transmit signals from the remote con- trol to the air conditioner, point the front part of the remote handset towards the control panel on the air condi- tioner. -
Page 15: Care And Maintenance
Dry thoroughly before re-inserting the filters. NOTE: The activated carbon filter is not washable. It should be replaced every 2-3 months or as needed. Please contact info@whynter.com for retail sales information WARNING! Never operate the air conditioner without the filter in place CLEANING THE AIR CONDITIONER ... -
Page 16: Troubleshooting
The internal water reservoir is full Drain water from the air conditioner Possible loose internal connection. Please contact Whynter for service The room temperature is outside of This unit is designed to work in ambi-... - Page 17 TROUBLESHOOTING Problem Possible Causes Solutions Windows or doors are open Close all windows and doors The unit has worked for a long There are too many people in the You may need additional cooling or time, but the room is not cold enough room another air conditioner...
-
Page 18: Warranty Information
THREE YEAR WARRANTY ON COMPRESSOR This Whynter portable air conditioner is warranted, to the original owner within the 48 continental states, for one year from the date of purchase against defects in material and workmanship under normal use and service.
Need help?
Do you have a question about the ARC-101CW and is the answer not in the manual?
Questions and answers

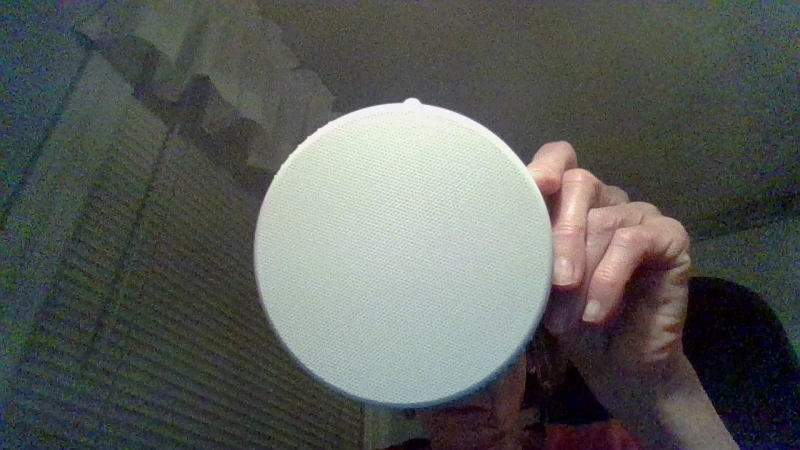

What is the "cover" part for on the fixture?
