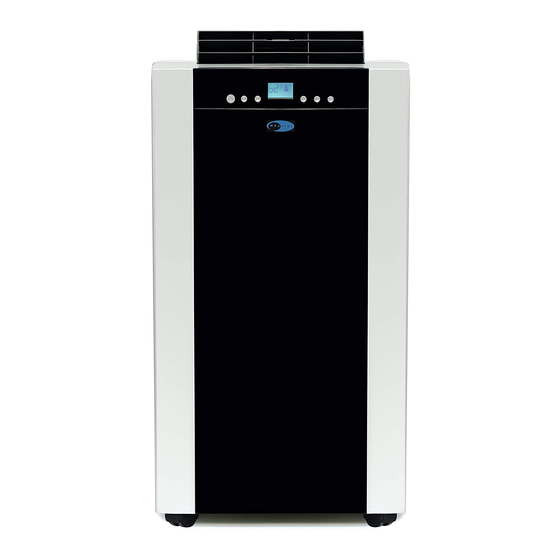

Whynter ARC-14SH Instruction Manual

Whynter eco-friendly 14,000 btu portable air conditioner with heater

Hide thumbs Also See for ARC-14SH:

User manual (13 pages)

Instruction manual (20 pages)

Instruction manual (22 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the ARC-14SH and is the answer not in the manual?

Questions and answers

Summary of Contents for Whynter ARC-14SH

Page 1 WHYNTER ECO-FRIENDLY 14,000 BTU PORTABLE AIR CONDITIONER WITH HEATER MODEL# : ARC-14SH Instruction Manual Congratulations on your new WHYNTER product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY PRECAUTIONS IDENTIFICATION OF ACCESSORIES IDENTIFICATION OF PARTS OPERATING YOUR AIR CONDITIONER INSTALLATION INSTRUCTIONS 9-10 AIR FILTERS INSTALLATION OPERATION INSTRUCTIONS 12-13 WATER DRAINAGE REMOTE CONTROL CARE AND MAINTENANCE TECHNICAL DATA TROUBLESHOOTING 18-19 WARRANTY INFORMATION P a g e...
Page 3: Introduction
We trust that your Whynter air conditioner will provide the performance and reliability that we stand for.
Page 4: Safety Precautions
Your safety and the safety of others are very important to us. To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions. SAFETY PRECAUTIONS Before the portable air conditioner is used, it must be properly positioned and installed as detailed in this manual.
Page 5: Operating Condition
 Keep fingers out of the air intakes and air outlets.  The unit is an electrical appliance. To avoid injury from electrical shock do not operate it with wet hands, while standing on a wet surface or while standing in water. Do not use it in outdoors or in wet conditions.
Page 6: Identification Of Accessories
IDENTIFICATION OF ACCESSORIES IMAGE ACCESSORY NAME QUANTITY Exhaust hose 2 pieces Fixture 2 pieces Screws 8 pieces Hose connector 4 pieces 1 set Window slider kit Cover 2 pieces Remote control 1 piece P a g e...
Page 7: Identification Of Parts
IDENTIFICATION OF PARTS Front 1. Air vent 2. Control panel Rear 3. Evaporator air intake / air filter 4. Air intake hose 5. Air exhaust hose 6. Casters 7. Drain port 8. Power cord P a g e...
Page 8: Control Panel Overview
OPERATING YOUR AIR CONDITIONER Before you begin, thoroughly familiarize yourself with the control panel, remote control and all of the functions. Follow the symbol for the desired function. The unit can be controlled by the unit control panel alone or with the remote control. CONTROL PANEL Timer Power Control...
Page 9: Installation Instructions
4. Only extend the exhaust hoses to the necessary length. We do not recommend extending the exhaust hose more than 9' long. If you are interested in purchasing an additional 5’ exhaust hose please contact info@whynter.com for retail sales information. P a g e...
Page 10 Window kit Installation When you use this air conditioner unit, hot air must be exhausted out of the room to complete the air exchange of the condenser. When the unit is operating in dehumidifying and fan-only mode, no exhaust is required. Your window kit has been designed to fit most standard vertical and horizontal windows.
Page 11: Air Filters Installation
AIR FILTERS INSTALLATION Your Whynter portable air conditioner is equipped with a washable Pre-Filter and an Activated Carbon Filter. The washable Pre-Filter removes large particles such as dust, pet hair and dander. The Activated Carbon filter is designed to remove smoke and other odor. It is recommended you replace the Activated Carbon filter every 2-3 months or as needed.
Page 12: Operation Instructions
OPERATION INSTRUCTIONS  BEFORE USING YOUR PORTABLE AIR CONDITIONER  Remove the exterior and interior packaging.  Before connecting the unit to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
Page 13 HEAT MODE  In this mode, the air conditioner heats the room. To activate this function mode, press the Mode Control button until the indicator comes on. When the heating mode is set, the compressor will start in approximately 3 minutes. NOTE: In heating mode, cold air is exhausted from the outdoor exhaust port and the exhaust hose must be connected to exhaust out the cold air.
Page 14: Water Drainage
WATER DRAINAGE During the process of cooling, some water will be extracted from the air into the unit. Most of this water is used to cool and exhausted to the outside. If the unit is operated in high humidity or low temperature environment, water will collect in the reservoir inside the unit.
Page 15: Remote Control
REMOTE CONTROL The portable air conditioner can be switched on by the remote control. NOTE:  Other appliances in the same room controlled by a remote control (TV, radio, stereo, etc.), may cause interferences.  Electronic and fluorescent lamps may interfere with the signal transmissions between the remote control and the air conditioner.
Page 16: Care And Maintenance
CARE AND MAINTENANCE IMPORTANT:  Switch off the air conditioner and disconnect the plug from the power outlet  Drain water by removing the drain plug.  Always transport the air conditioner in an upright position only. CLEANING THE PRE-FILTER ...
Page 17: Technical Data
TECHNICAL DATA Model ARC-14SH Cooling capacity 14,000 BTU Heating capacity 13,000 BTU Power supply 115v/ 60Hz Maximum power input 1250 Watts Cooling 1200 Watts Heating Maximum input 10.8 Amps Cooling 10.5 Amps Heating Dehumidifying capacity 101 Pts / Day Thermostat 61°F to 89°F...
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solutions The portable air Power failure / outage. Restore the power supply. conditioner does not turn on The automatic switch, line Flip the switch / change the fuse / turn the fuse, or breaker has been breaker back on.
Page 19 Windows or doors are open. Close all windows and doors. The unit has worked for a long time, but the There are too many people in You may need additional cooling or another room is not cold the room. air conditioner. enough There is direct sunshine into Close curtains or blinds and try to minimize...
Page 20: Warranty Information
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY.
