Arm Height And Azimuth; Connecting To The Preamplifier/Amplifier - VPI Scout Jr. Setup And Instruction Manual

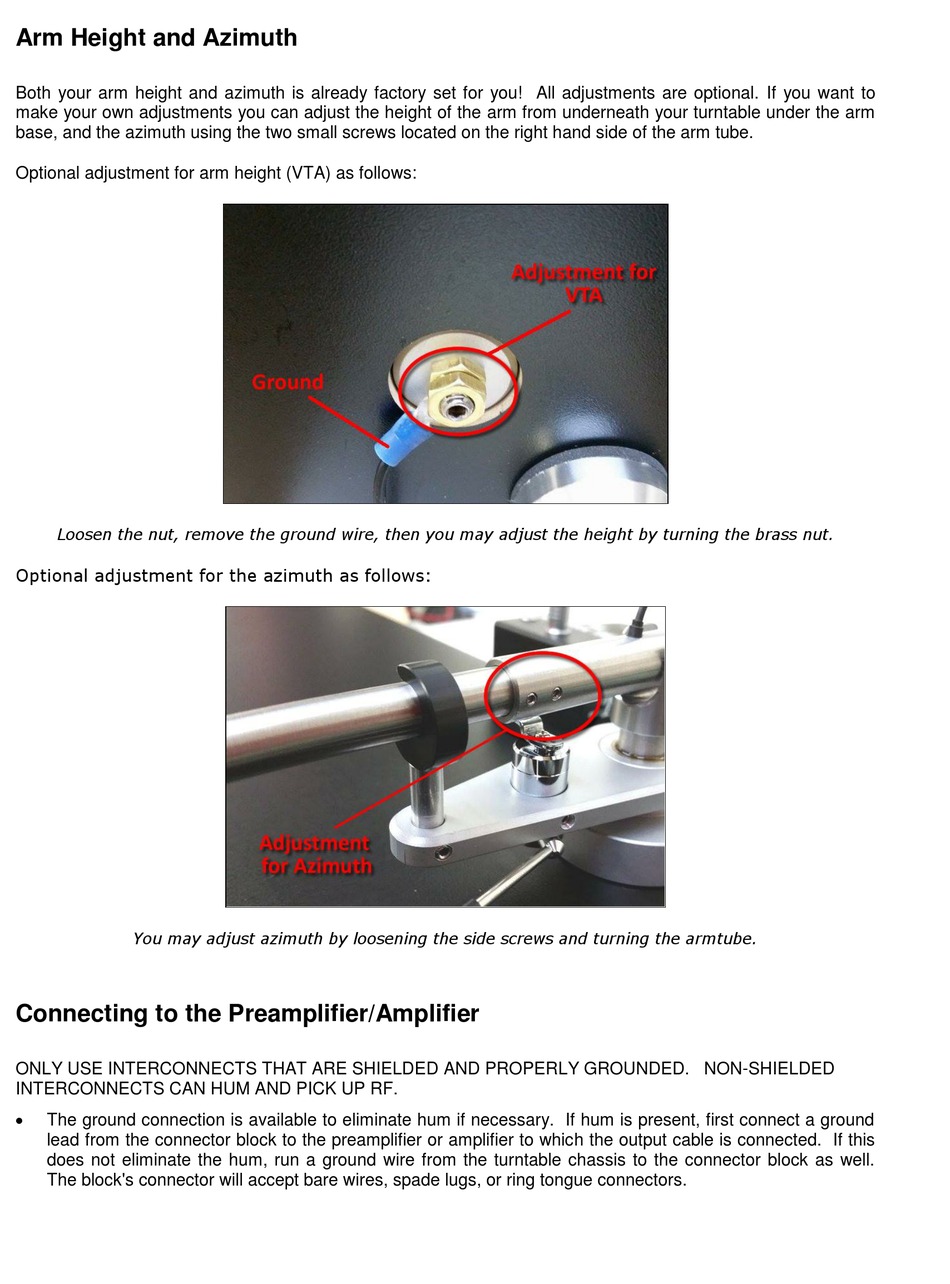

Arm Height and Azimuth

Both your arm height and azimuth is already factory set for you! All adjustments are optional. If you want to
make your own adjustments you can adjust the height of the arm from underneath your turntable under the arm
base, and the azimuth using the two small screws located on the right hand side of the arm tube.
Optional adjustment for arm height (VTA) as follows:
Loosen the nut, remove the ground wire, then you may adjust the height by turning the brass nut.
Optional adjustment for the azimuth as follows:
You may adjust azimuth by loosening the side screws and turning the armtube.

Connecting to the Preamplifier/Amplifier

ONLY USE INTERCONNECTS THAT ARE SHIELDED AND PROPERLY GROUNDED. NON-SHIELDED
INTERCONNECTS CAN HUM AND PICK UP RF.

The ground connection is available to eliminate hum if necessary. If hum is present, first connect a ground
lead from the connector block to the preamplifier or amplifier to which the output cable is connected. If this
does not eliminate the hum, run a ground wire from the turntable chassis to the connector block as well.
The block's connector will accept bare wires, spade lugs, or ring tongue connectors.
