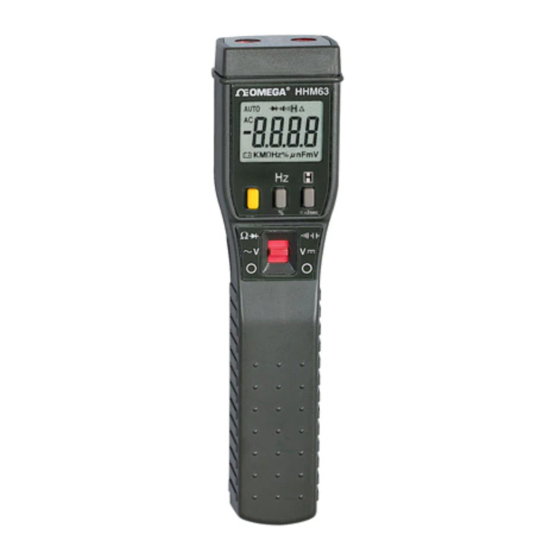

- Page 1 OMEGA...
-
Page 3: Safety Information
SAFETY INFORMATION The following safety information must be observed to insure maximum personal safety during the operation at this meter: 1. Do not use the meter if the meter or test leads look damaged, or if you suspect that the meter is not operating properly. 2. -
Page 4: Specifications
SPECIFICATIONS Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 3200. Analog bar graph: 32 segments with measurements 12 times per second. Polarity: Automatic, (-) negative polarity indication. Overrange: "OL" mark indication. Low battery indication: The " "... - Page 5 DC Voltage (50Hz - 400Hz) Ranges 320mV, 3.2V, 32V, 320V, 600V Accuracy ±0.25%rdg + 1digit Input impedance 320mV: >1000MW ; 3.2V: 11MW , 32V to 600V: 10MW Maximum input 600VDC or AC rms AC Voltage (50Hz - 400Hz) Ranges 3.2V, 32V, 320V, 600V Accuracy ±0.75%rdg + 4digits Input impedance...
-
Page 6: Diode Test
Resistance (effective reading above 100 digits) ) ) ) ) Ranges 320W , 3.2KW , 32KW , 320KW , 3.2MW , 32MW Resolution 320W : 0.1W ; 3.2KW : 1W ; 32KW : 10W ; 320KW : 100W ; 3.2MW : 1KW ; 32MW : 10KW Accuracy 320W : ±0.3%rdg + 3dgts 3.2KW to 320KW : ±0.3%rdg + 3dgts... -
Page 7: Operation
Continuity beeper Range 320W Resolution 0.1W Audible indication <20W ±5W Test current <0.7mA Input protection 500VDC or AC rms OPERATION Before taking any measurements, read the Safety Information Section. Always examine the instrument for damage, contamination (excessive dirt, grease, etc.) and defects. Examine the test leads for cracked or frayed insulation. If any abnormal conditions exist do not attempt to make any measurements. -
Page 8: Manually Selecting A Range
Manually Selecting a Range The meter also has a manual range mode. In manual range, you select and lock the meter in a range. To manually select a range: Press [RANGE] button to hold the selected range. The symbol is displayed. Subsequently pressing the [RANGE ] button will select each range in sequence from the lowest to highest range. -
Page 9: Voltage Measurements
Auto Power-down mode: If unused for about 10 minutes, the tester will power-down automatically. Press any of the three button switches to resume power-on mode. Voltage Measurements 1. Connect a red test probe to the "VW " jack and the black test lead to the "COM" jack. -
Page 10: Resistance Measurements
Resistance Measurements 1. Set the Function switch to the " W " position. 2. Turn off power to the circuit under test. External voltage across the compo- nents causes invalid readings. 3. Connect a red test probe to the "VW " jack and the black test lead to the "COM" jack. -
Page 11: Continuity Measurements
4. Touch probes to the diode. A forward-voltage drop is about 0.6V (typical for a silicon diode). 5. Reverse probes. If the diode is good, "OL" is displayed. If the diode is shorted, a value near 0mV will be displayed. 6. -
Page 12: Maintenance
MAINTENANCE WARNING Remove test leads before changing batteries or fuse or performing any servicing. Battery Replacement Power is supplied by four 1.5V (AAA size) batteries. The " " appears on the LCD display when replacement is needed.To replace the batteries, remove the screw from the back of the meter and lift off the battery cover case. - Page 14 It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
- Page 15 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA...Of Course! HEATERS TEMPERATURE pH/CONDUCTIVITY PRESSURE/STRAIN AND FORCE DATA ACQUISITION ENVIRONMENTAL MONITORING AND CONTROL FLOW/LEVEL M-2871/0799...
