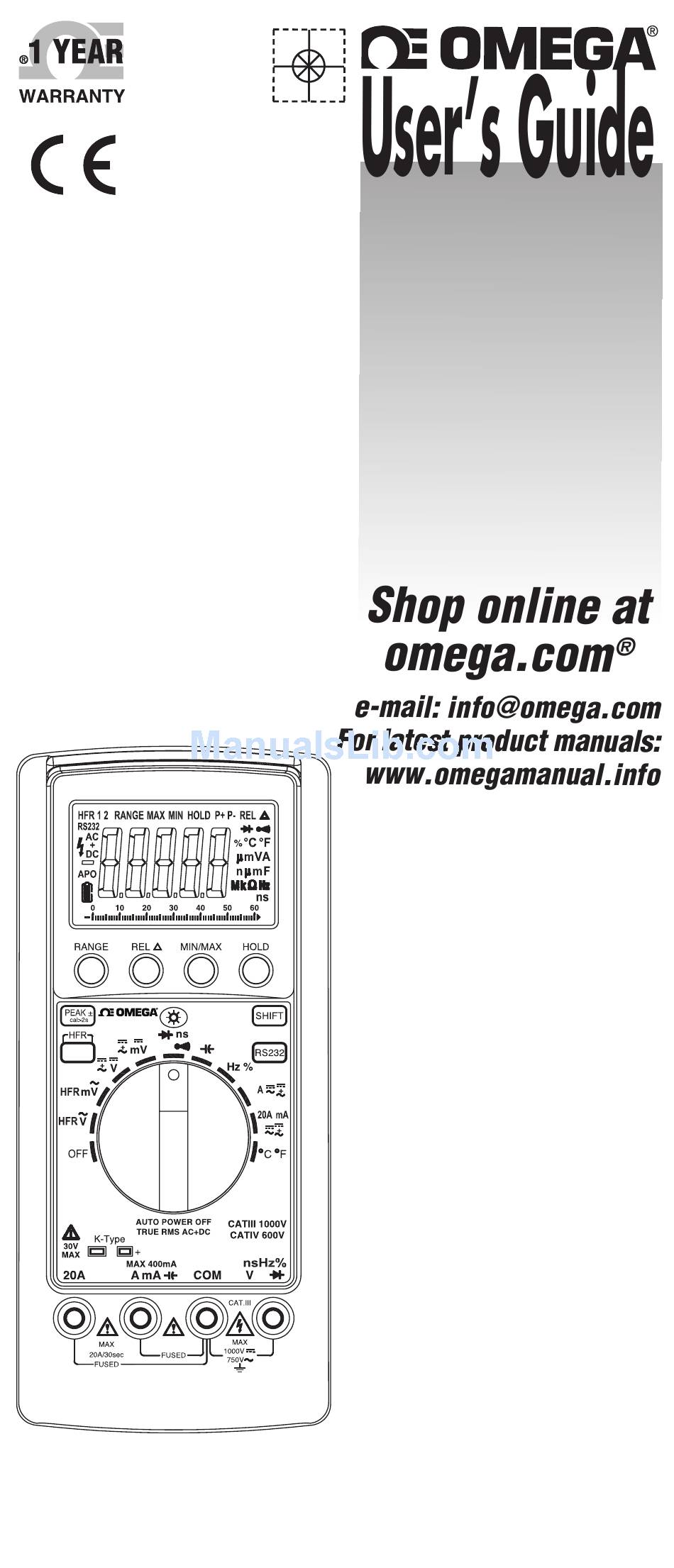

Page 1: Digital Multimeter
MADE IN TAIWAN HHM9007R Digital Multimeter Ω µ Ω µ HHM9007R Digital Multimeter... - Page 2 For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, human applications.
-
Page 3: Unpacking And Inspection
INTRODUCTION This manual contains information and warnings that must be followed to ensure safe operation and retain the meter in safe condition WARNING READ "SAFETY INFORMATION" BEFORE USING THE METER. This Digital Insulation Camp Meter is a handheld 6000-count instrument that is designed for use in the laboratory, field servicing, at home, and any circumstance where high current measurement is required. - Page 4 1. Read these operating instructions thoroughly and completely before operating your meter. Pay particular attention to WARNINGS that will inform you of potentially dangerous procedures. The instructions in these warnings must be followed. 2. Always inspect your meter, test leads and accessories for any sign of damage or abnormality before every use.
-
Page 5: Safety Information
SAFETY INFORMATION Cleaning Wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents. Dirt or moisture in the terminals can affect readings. Safety: Conforms to IEC/EN 61010-1, IEC/EN 61010-2-033, CAT III 1000V, CAT IV 600V, Class II, Pollution degree 2 Indoor use. -
Page 6: Instrument Layout
INSTRUMENT LAYOUT RANGE MIN/MAX HOLD HHM9007R ± SHIFT Digital cal>2s Multimeter Hz % (6000 or RS232) AUTO POWER OFF CATIII 1000V TRUE RMS AC+DC CATIV 600V K-Type MAX 400mA CAT.III 1000V 20A/30sec FUSED 750V FUSED... - Page 7 1. V Hz%ns , Voltage, Ohms, Frequency, Duty cycle, Conductance, Diode Input Terminal This is the positive input terminal for Voltage, Ohms, Frequency, Duty cycle, Conductance, Diode measurements. Connection is made to it using the red test lead. 2. COM Common Terminal This is the negative (ground) input terminal for all measurement modes.
- Page 8 11. HOLD Button (1) Press [HOLD] button to toggle in and out of the Data Hold mode. In the data hold mode, the "HOLD annunciator is displayed and the last reading is held on the display. (2) Press [HOLD] button again to release the hold and current readings are once again displayed.
-
Page 9: How To Make Measurements
Other Functions Auto Power off 1. Auto power off: approx. 30 minutes. 2. After auto power off, change range position of the rotary knob to turn the meter back on again. Cancellation Of Auto Power Off Feature: Press and hold the (MAX/MIN) button while rotating function switch from off to any position to turn the meter on. -
Page 10: Continuity Measurements
and make the voltage measurement reduce the range setting if set too high until a satisfactory reading is obtained. 6. After completing the measurement, turn off power to the circuit / device under test, discharge all capacitors and disconnect the meter test leads. 7. -
Page 11: Diode Tests
DIODE TESTS 1. Set the Function/Range switch to the " / / ns" position. Use the "SHIFT" button to select the " " diode test. 2. Turn off power to the circuit under test. External voltage across the components causes invalid reading. 3. -
Page 12: Frequency Measurements
FREQUENCY MEASUREMENTS 1. Set the Function/Range switch to the "Hz/% " position. Use the "SHIFT" button to select the Hz Frequency test. 2. Connect the red test lead to the "V " jack and the black test lead to the "COM" jack. 3. -
Page 13: Specifications
SPECIFICATIONS Display: 60000 counts, 60 segments analog bargraph. Polarity: Automatic, (-) negative polarity indication. • ver range Indication: (OL) or (-OL) is displayed. • Low Battery Indication: When change a new battery for the meter, the LCD will show the battery capacity with full status ( ). - Page 14 DC Volts Range Resolution Accuracy lnput lmpedance 600mV 0.01mV 0.1mV ± (0.08% red+5d) 600V 10mV 1000V 100mV Overload protection: 1000V DC or 750V AC RMS AC Volts (True RMS) Resolu Accuracy lnput Range -tion (45~2kHz )/HFR2 lmpedance 600mV 0.01mV ± (1.0% red+20d) 45~500Hz ±...
- Page 15 Current DC Current Range Resolution Accuracy 600µA 0.01µA 6000µA 0.1µA ± (0.5% red+10d) 60mA 1µA 400mA 10µA ± (1.0% red+10d) ± (2.0% red+10d) AC Current (True RMS) Resolution Accuracy Range 600µA 0.01µA 6000µA 0.1µA ± (1.5% red+20d) 60mA 1µA 400mA 10µA ±...
-
Page 16: Continuity Test
Resistance Range Resolutio n lnput Accuracy 0.01 ± ( 0.3% -3.0Vdc red+20d ) ± ( 0.3% red+10d ) 600k -1.2Vdc ± (1.0% red+10d ) 60Mv ± (3.0% red+20d ) Overload protection: 600V DC or 600V AC RMS Continuity Test Audible Open Response Range... -
Page 17: Duty Cycle
Capacitance (6000 counts) Resolution Range Accuracy 0.001nF ± (3.0% red+30d) 60nF 0.01nF 600nF 0.1nF 6µF 0.001µF ± (3.0% red+10d) 60µF 0.01µF 600µF 0.1µF 1µF ± (5.0% red+10d) Overload protection: 600V DC or 600V AC RMS Tem perature Resol Sensor Range Accuracy -ution type... -
Page 18: Maintenance
Frequency Rang Resolutio Trigger Accuracy Leve1 60Hz 0.001Hz 600Hz 0.01Hz 6kHz 0.1Hz > 1.5V 60kHz ± (0.1% red+10d ) 600kH 10Hz 6MHz 100Hz > 2.5V <5.0V 10MHz 1kHz Minimum lnput Range: > 6Hz Minimum Pulse Width: > 100ns Duty cycle limits: > 30% and < 70% Overload protection: 600V DC or 600V AC RMS MAINTENANCE Maintenance consists of periodic cleaning and... - Page 19 BATTERY AND FUSE REPLACEMENT WARNING TO AVOID ELECTRICAL SHOCK, DISCONNECT THE TEST LEADS AND ANY INPUT SIGNALS BEFORE REPLACING THE BATTERY. REPLACE ONLY WITH SAME TYPE OF BATTERY. 1. Disconnect test leads from any live source, turn the rotary switch to OFF, and remove the test leads from the input terminals.
-
Page 20: Warranty Disclaimer
In no event shall OMEGA be liable for consequential, incidental or special damages. CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component”... -
