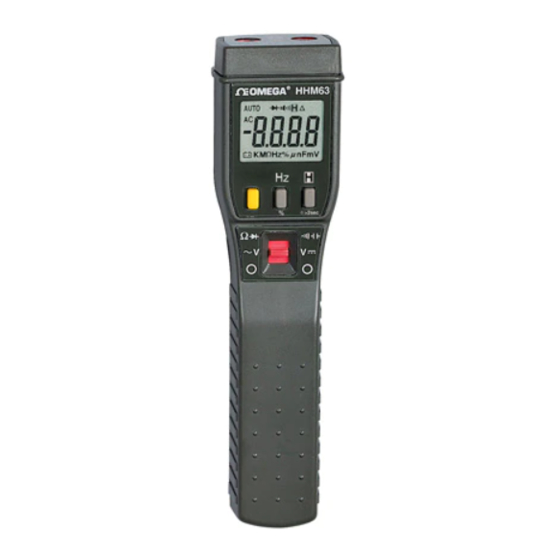

Summary of Contents for Omega HHM63C

  • Page 1 OMEGA...

  • Page 3: Safety Information

    SAFETY INFORMATION The following safety information must be observed to insure maximum personal safety during the operation at this meter: 1. Do not use the meter if the meter or test leads look damaged, or if you suspect that the meter is not operating properly. 2.

  • Page 4: Specifications

    SPECIFICATIONS Display: Liquid crystal display (LCD) with a maximum reading of 2500. Polarity: Automatic, positive implied, negative polarity indication. Overrange: "OL"or "-OL" is displayed. Low battery indication: The " " is displayed when the battery voltage drops below the operating level. Measurement rate: 2.5 times per second, nominal.
  • Page 5 DC VOLTS Ranges 250mV,2.5V,25V,250V,600V Resolution 100µV Accuracy ±(0.25%rdg + 5dgts) on 250mV range ±(0.25%rdg + 1dgt) on other ranges Input impedance >10MW Overload & protection 600VDC or AC rms AC VOLTS (50Hz - 500Hz) Ranges 2.5V,25V,250V,600V Resolution Accuracy ±(0.75% of reading + 4dgts) on 2.5V to 600V Input impedance >10MW Overload &...

  • Page 6: Diode Test

    Accuracy ±(0.3%rdg + 3dgts) on 250W range ±(0.3%rdg + 1dgt) on 2.5KW to 2.5MW ranges ±(3.5%rdg + 4dgts) on 25MW range Open circuit volts 0.4Vdc Overload protection 500VDC or AC rms CONTINUITY Audible indication <100W Overload protection 500VDC or AC rms DIODE TEST Accuracy ±(3.0%rdg + 3dgts)
  • Page 7 FREQUENCY (Autoranging) Ranges 5.000Hz,50.00Hz,500.0Hz,5.000KHz Resolution 0.001Hz Accuracy ±(0.05%rdg + 2dgts) Sensitivity 1.0V rms min Alternating Pulse or SINE wave signal on all range Overload protection 500VDC or AC rms DUTY CYCLE (2Hz to 1kHz) Ranges 10% to 90% Resolution 0.1% Accuracy ±5dgts @ 2Vrms min Alternating Pulse signal Pulse Width...

  • Page 8: Operation

    OPERATION Before taking any measurements, read the Safety Information Section. Always examine the instrument for damage, contamination (excessive dirt, grease, etc.) and defects. Examine the test leads for cracked or frayed insulation. If any abnormal conditions exist do not attempt to make any measurements. Auto Power-down mode If unused for about 30 minutes, the tester will power-down automatically.

  • Page 9: Frequency Measurements

    SELECT Function Button (DC/AC),(W W W W W / The SELECT Function button is Yellow in color. Press it to toggle to the alternate function (AC, Audible continuity, Diode and capacitance) shown in Yellow on the meter face. Voltage Measurements 1.

  • Page 10: Duty Cycle Measurements

    Duty Cycle Measurements 1. Set the Function/Range switch to the ACV position, and then press Hz-% button toggle the voltage/frequency/duty cycle mode. 2. Connect the red test lead to the "VW " jack and the black test lead to the "COM" jack.

  • Page 11: Diode Tests

    Diode Tests 1. Set the Function/Range switch to W W W W W / position. 2. Remove power from the equipment under test. 3. To toggle the W /continity/diode/capacitance modes, press SELECT switch. 4. Touch probes to the diode. A forward-voltage drop is about 0.6V (typical for a silicon diode).

  • Page 12: Capacitance Measurements

    Capacitance Measurements 1. Set the Function/Range switch to W W W W W / position. 2. Remove power from the equipment under test. 4. To toggle the W /continity/diode/capacitance modes, press SELECT switch. 5. Dischange capacitors before trying to measure it. 6.

  • Page 13: Battery Replacement

    MAINTENANCE WARNING Remove test leads before changing batteries or fuse or performing any servicing. Battery Replacement Power is supplied by four 1.5V (AAA size) batteries. The " " appears on the LCD display when replacement is needed.To replace the batteries, remove the screw from the back of the meter and lift off the battery cover case.
  • Page 14 OMEGA's Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective it will be repaired or replaced at no charge. However, this WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of being damaged as a result of excessive corrosion;...
  • Page 15 It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
  • Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA...Of Course! HEATERS TEMPERATURE pH/CONDUCTIVITY PRESSURE/STRAIN AND FORCE DATA ACQUISITION ENVIRONMENTAL MONITORING AND CONTROL FLOW/LEVEL M-2895/0799...
