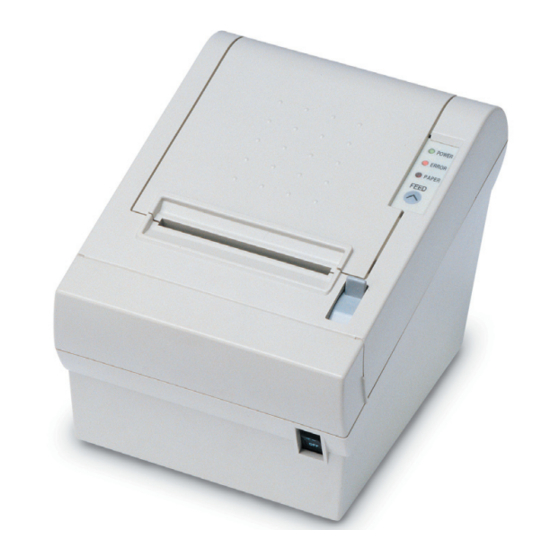

TRP-100
Receipt Printer User's Manual
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRP-100 and is the answer not in the manual?

Questions and answers

Related Manuals for AURES TRP-100

Summary of Contents for AURES TRP-100

  • Page 1 TRP-100 Receipt Printer User’s Manual All specifications are subject to change without notice...

  • Page 3: Table Of Contents

    TRP-100 User’s Manual TABLE OF CONTENTS 1. Parts Identifications 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the roll paper 2.4 Dip switch setting 3. Control panel and other functions 3.1 Control panel 3.2 Error Indicating...

  • Page 4: Setting Up The Printer

    TRP-100 User’s Manual TRP-100 User’s Manual 2. Setting Up the Printer 2-2. Connecting the Cables You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below : 2-1.
  • Page 5 TRP-100 User’s Manual TRP-100 User’s Manual 2-2-1. Interface Connector Centronics Parallel Interface SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0~7 Input/Output Data bit Transmitted 0~7 ACK- Output Data receiving completed. BUSY Output Impossible to print of data receiving. Output...

  • Page 6: Loading The Roll Paper

    TRP-100 User’s Manual TRP-100 User’s Manual 2-3. Loading the Roll Paper 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less...

  • Page 7: Dip Switch Setting

    TRP-100 User’s Manual TRP-100 User’s Manual 5. Be sure to note the correct direction that the paper comes off the roll. 2-4. Dip Switch Setting The printer is set up at the factory to be appropriate for almost all users. On the other hand, offers some more settings for users with special requirements.
  • Page 8 TRP-100 User’s Manual TRP-100 User’s Manual 2-4-2. Parallel Interface Specification 2-4-4. USB Interface Specification DIP Switch Set 1 Function DIP Switch Set 1 Function FUNCTION DEFAULT FUNCTION DEFAULT Hexadecimal HEXDUMP NORMAL Hexadecimal HEXDUMP NORMAL Bi-Parallel mode DISABLED ENABLED Print Density...
  • Page 9 TRP-100 User’s Manual TRP-100 User’s Manual ♣CAUTION: 2-4-5. Wi-fi Specification Turn off the printer while removing the DIP switch cover to prevent an electric short, which can DIP Switch Set 1 Function damage the printer. FUNCTION DEFAULT Hexadecimal HEXDUMP NORMAL 1.

  • Page 10: Control Panel And Other Functions

    TRP-100 User’s Manual TRP-100 User’s Manual ♣CAUTION: 3. Control panel and other functions. 3-1. Control panel When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. You can control the basic paper feeding operations of the printer with the button on the control If the top cover is still stuck, please follow the steps to release the papers from jamming.

  • Page 11: Self Test

    TRP-100 User’s Manual TRP-100 User’s Manual 4. Self Test 5. Hexadecimal Dump The self-test lets you know if your printer is operating properly. It checks the control circuits, This feature allows experienced users to see exactly what data is coming to the printer. This can printer mechanisms, print quality, ROM version and DIP switch settings.

  • Page 12: Specifications

    TRP-100 User’s Manual TRP-100 User’s Manual (8) Overall dimension 6. Specifications Appendix A : Specifications 6-1. General Specifications (1) Printing Method Direct line thermal printing. (2) Print speed 150mm/sec. (Approx 35.4LPS) (3) Dot density 180 DPI (Hor / Ver) 180 / 180 (0.141mm / 0.141mm dot) 203 DPI (Hor / Ver) 203 / 180 (0.125mm / 0.141mm dot)

  • Page 13: Auto Cutter Specifications

    TRP-100 User’s Manual TRP-100 User’s Manual 6-2. Auto Cutter Specifications ♣Important! (1) Cutting Frequency Max. 30 cuts per minute When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. (2) Thickness of paper 0.065 ~ 0.1 mm...

  • Page 14: Black Mark Specifications

    TRP-100 User’s Manual TRP-100 User’s Manual 6-8. Black Mark specifications 7. Command List Command Function REMARKS Horizontal tab Print and line feed Print and carriage return Print and return to standard mode(in page mode) Cancel print data in page mode...
  • Page 15 TRP-100 User’s Manual Command Function REMARKS ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image...
  • Page 16 Rev. 2.0...
