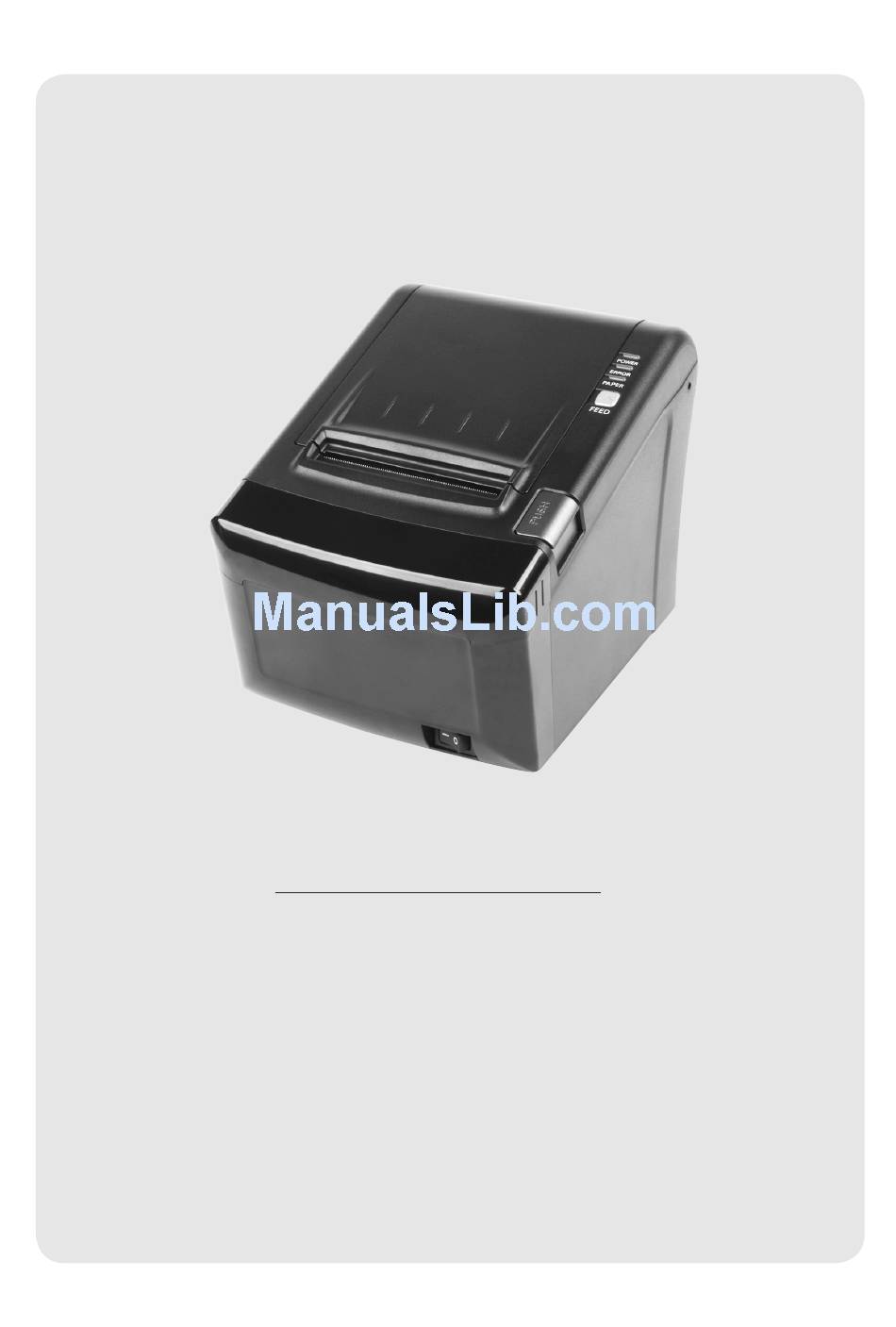

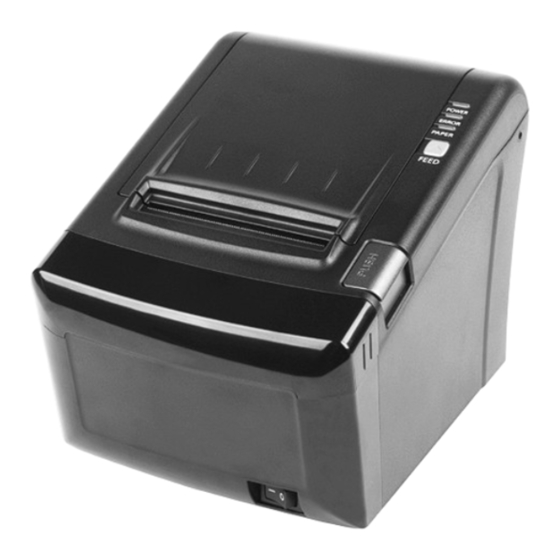

MODEL : TRP100-III
Receipt Printer User's Manual
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRP100-III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AURES TRP100-III

Summary of Contents for AURES TRP100-III

  • Page 1 MODEL : TRP100-III Receipt Printer User’s Manual All specifications are subject to change without notice...
  • Page 2 A software tool is available to configure the printer settings on AURES technical website: www.aures-support.fr...

  • Page 4: Table Of Contents

    Table of Contents 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the roll paper 2.4 Adjustment of paper width 3. Control panel and other functions 3.1 Control panel 3.2 Error Indicating 4. Self Test 5.

  • Page 5: Parts Identifications

    1. Parts Identifications PRINTER COVER Open this cover to load or replace a paper. CONTROL PANEL Features LED indicators to indicate printer status and switches to operate the printer. POWER SWITCH COVER OPEN PUSH BUTTON Used to turn on/off Push down this button to power to the printer.

  • Page 6: Setting Up The Printer

    2. Setting Up the Printer 2-1. Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. The Printer User's Manual Roll Paper Adaptor(Option) Interface Cable(optional)

  • Page 7: Connecting The Cables

    2-2. Connecting the Cables All cables connect to the connector panel on the back of the printer which is shown below: PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR INTERFACE CONNECTOR INTERFACE CONNECTOR (USB) For connection to a For connection of the Connects to peripheral host computer.
  • Page 8 2-2-1. Interface Connector <D-SUB 25 Female Serial> <Centronics Parallel> <USB “B” Type> <Ethernet> USB Interface Signal Description DATA- Printer transmit data line DATA+ Printer transmit data line System Ground Serial Interface SIGNAL DESCRIPTION Output Printer transmit data line RS-232C level Input Printer receive data line RS-232C level 4, 20...
  • Page 9 Centronics Parallel Interface SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0~7 Input/Output Data bit Transmitted 0~7 ACK- Output Data receiving completed. BUSY Output Impossible to print of data receiving. Output Paper empty SELECT Output Printer status for ON/OFF line AUTO FEED- Input Paper auto feed signal...
  • Page 10 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing. SIGNAL DESCRIPTION Signal GND Drawer kick-out drive signal 1 Output Drawer open/close signal...

  • Page 11: Loading The Roll Paper

    2-3. Loading the Roll Paper Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. ♣Turn off power switch. 1.
  • Page 12 5. Note the correct direction that the paper comes off the roll: 6. Pull out a small amount of paper as shown. Then, close the cover. 7. Tear off the paper as shown.
  • Page 13 ♣CAUTION: When the paper cutter is jammed, the top cover might be stuck closed. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the paper jam. 1.

  • Page 14: Adjustment Of Paper Width

    2-4. Adjustment of paper width 1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow. 2. Tight the screw after adjusting the Paper Guide. 3. Pull the edge of paper once the paper roll is installed correctly and close the Paper Cover.

  • Page 15: Control Panel And Other Functions

    3. Control panel and other functions 3-1. Control panel You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights let you to monitor the printer’ s status. Control Panel POWER ERROR PAPER...

  • Page 16: Self Test

    4. Self Test The self-test lets you know if your printer is operating properly. It checks the control circuits, printer mechanisms, print quality, ROM version and DIP switch settings. This test is independent of any other equipment or software. Running the self test 1.

  • Page 17: Hexadecimal Dump

    5. Hexadecimal Dump This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands.

  • Page 18: Printer Cleaning

    6. Printer cleaning If the interior of the printer is dusty, printing quality can be lowered. In this case, follow the instructions below to clean the printer. ♣Note : 1. Make sure to turn the printer power off prior to cleaning 2.

  • Page 19: Specifications

    7. Specifications ♣ Important! When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. Be careful about installing the printer in an area where there is electrical noise. Take the appropriate measure to protect against electrostatic AC line noise, etc.
  • Page 20 (8) Overall dimension...

  • Page 21: Auto Cutter Specifications

    7-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute (2) Thickness of paper 0.065 ~ 0.09 mm (3) Cutter Life 1.5 million cuttings (if the paper thickness is between 65 and 80µm) 7-3. Interface RS232 Serial Interface, Centronics Parallel Interface(IEEE1284), USB Interface, Ethernet Interface(100Mbps) 7-4.

  • Page 22: Environmental Requirements

    7-5. Environmental Requirements (1) Operating Temperature 5°C to 40°C Humidity 10% to 90% RH (without condensation) (2) Transport/Storage (except paper) Temperature -20°C to 60°C Humidity 10% to 90% RH (without condensation) 7-6. Reliability (1) MCBF 50 million lines (based on an average printing rate of 12.5% with paper thickness in the range 65µm to 75µm) 35 million lines (based on an average printing rate of 12.5% with paper thickness in the range 76µm to 150µm)

  • Page 23: Command List

    8. Command List Command Function REMARKS Horizontal tab Print and line feed Print and carriage return Print and return to standard mode(in page mode) Cancel print data in page mode DLE EOT Real-time status transmission DLE ENQ Real-time request to printer DLE DC4 Generate pulse at real-time ESC FF...
  • Page 24 Command Function REMARKS ESC t Select character code table ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS /...
  • Page 25 TE120 Series Rev. A 7/12...
