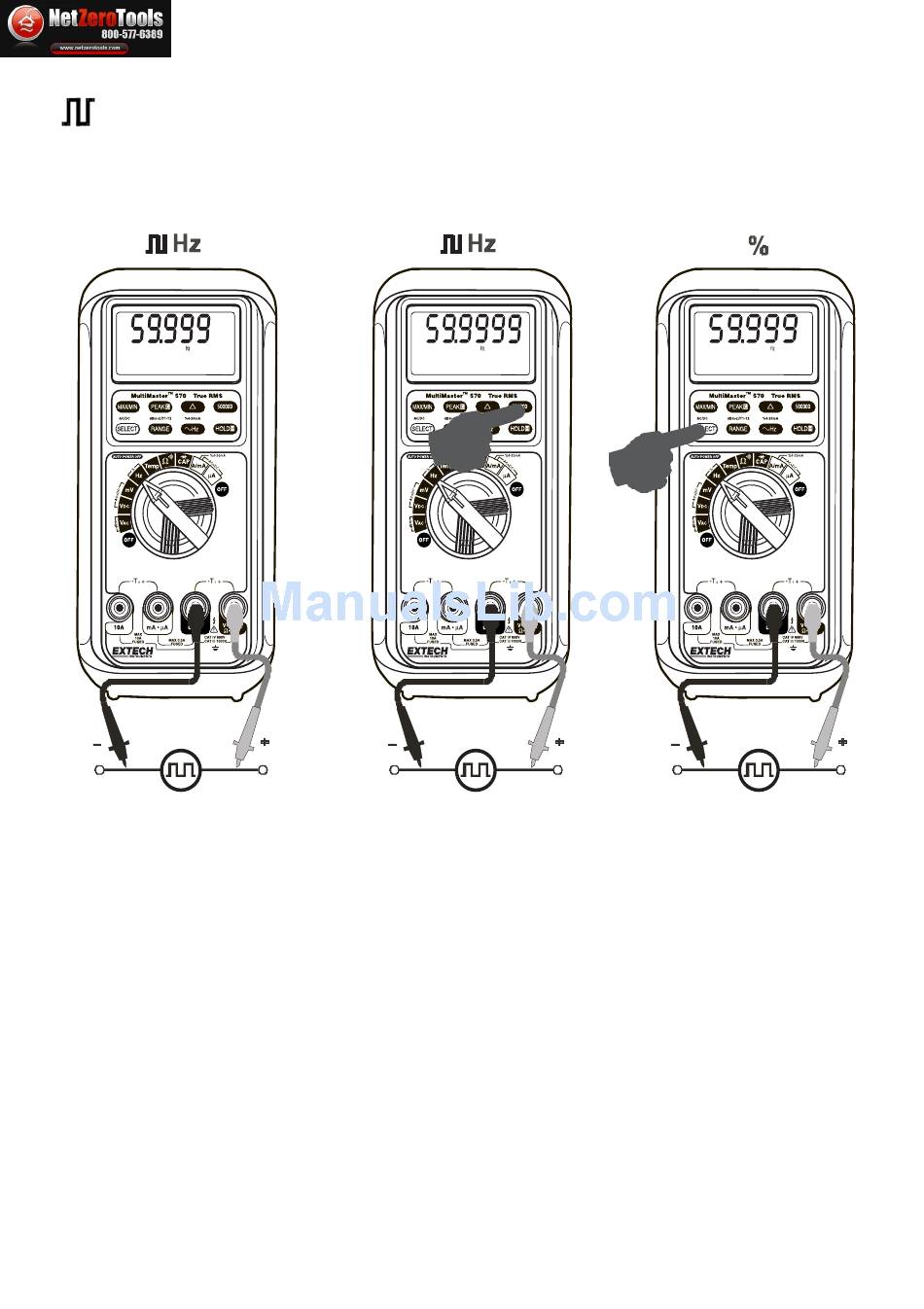

Hz Logic Level Frequency and % Duty Cycle functions
Press SELECT button momentarily to toggle between Hz and % (duty cycle) readings. The new
setting will be saved automatically to the non-volatile memory as power up default. Press 500000
button momentarily to toggle between 5 full digits and 6 full digits Hz readings.
A
Note: Unlike the Line Level Frequency measuring function as previously stated, this Logic Level
Frequency function is set only at the highest input sensitivity for measuring digital type electronic
signals.
V1.1 8/12
netzerotools.com
A
8
netzerotools.com
A
MM560A-MM570A-EU-EN
