Simoco SPR180 User Manual

TNM-U-E-0102, Issue 1.3

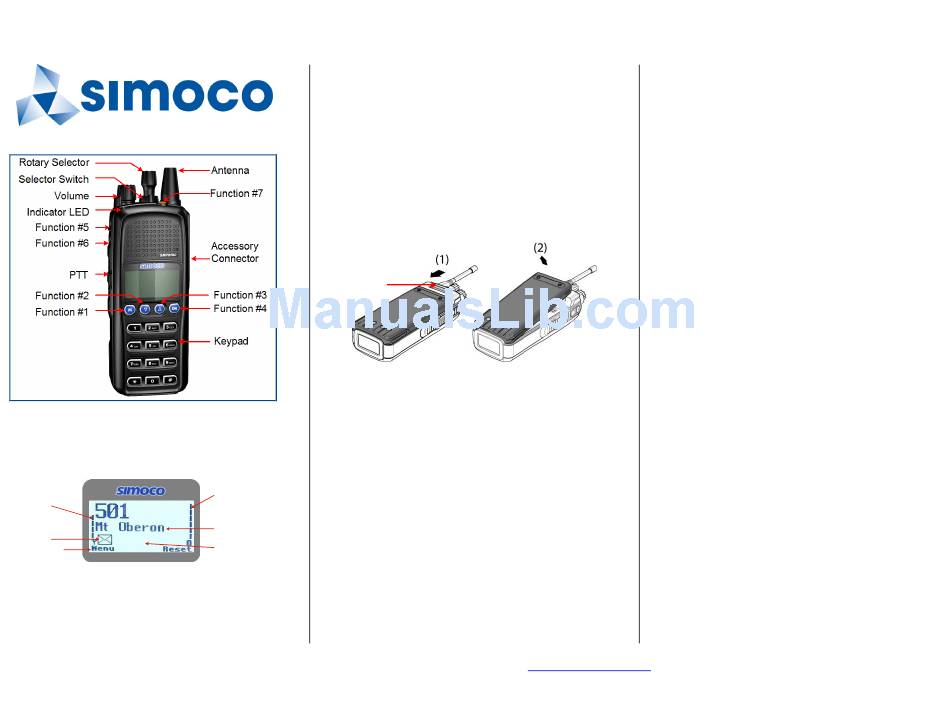

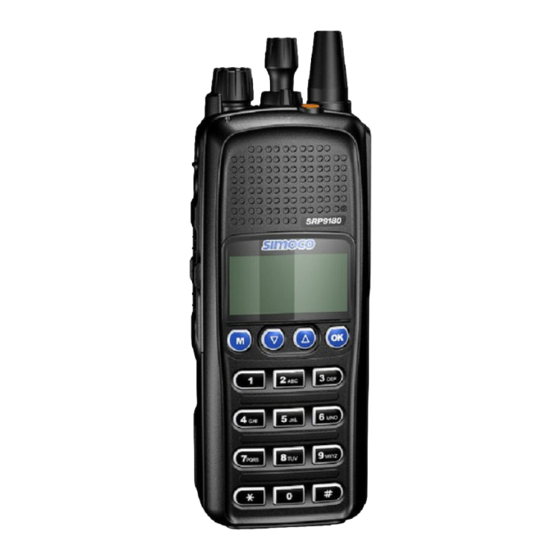

SRP9180 PORTABLE RADIO
Note.
The SRP9180 Series has two variants, one with a key
pad (SRP9180) and one without (SRP9170).
T D
YPICAL ISPLAY
Layout varies with radio mode.
Signal
Strength
Message
Indicator
Key Labels
O M
PERATIONAL ODE
The SRP9170/80 Radio can be configured as a conventional
(PMR) mode, Trunked Radio mode (TMR), P25 Digital Mode
or a combination of modes as a multi mode radio.
© Simoco 2013
K
EYS
With the default configuration, the Menu navigates through the
features of the Radio. The Up/Down keys move through the
entries in each menu. The OK key selects the entry. The F4
key (Back) returns to the previous level. These four keys are
also re-configurable if required.
Function Keys 5, 6 and 7 can be programmed to any of the
functions listed in the field programmer.
B
EFORE
Before operating the Radio:
Ensure that a fully charged battery is fitted to the radio. Ensure
that the antenna is firmly secured.
B
ATTERY
Latch
To remove battery: Slide latch down (1) and lift out (2).
To fit battery: Seat lower end first (2) and push battery top in.
Battery condition is shown on the Display. If the battery is low
the battery symbol flashes, the status LED flashes red and an
audible warning sounds.
S
WITCH
To turn the radio on, turn the rotary volume control until it
clicks. A welcome message is displayed and the top LED
illuminates green for 2 seconds. Adjust the volume control to
about mid position.
Battery Level
T R
O ECEIVE
PMR/P25 Conv:
Alphanumeric
Up/Down keys (hold down either key for fast scroll).
Display
If the channel is busy, the status LED flashes yellow.
Icon Area
On radios with selective signalling, only the calls relevant to
you are heard.
TMR/P25 Trunk: The radio will automatically find the local
trunked base (if within range). When in range, the radio will
display the network name as configured by the dealer.
Press the PTT to answer a call in most cases (config.
dependant).
Simoco Group, Field House, Uttoxeter Old Road, Derby DE1 1NH
Tel: +44 (0) 1332 375500. Fax: +44 (0) 1332 375501.
U
SE
O T R
N HE ADIO
C
ALLS
Select the required channel using the
www.simocogroup.com/emea
T M A C
O AKE ALL
Select the required channel (PMR/P25 Conv.) or called
party/Talk group (TMR/P25 Trunk) with the Up/Down keys.
For TMR only, set up the call by pressing the PTT briefly. Two
short beeps will indicate the call is connected, or a low long
beep will indicate call failure.
Press and hold the PTT button and speak into the microphone
to transmit (wait for Grant tone in P25).
Release the PTT button to end the transmission.
transmitting, the status LED is illuminated red.
When Function Key 7 is programmed as an Alarm Key,
pressing the key automatically runs a pre-programmed alarm
sequence. To reset the Radio after an alarm call, switch the
radio off and then on.
P A H
ROBLEMS ND INTS
The SRP9170/80 Radio is a high quality reliable product. In
the unlikely event of a problem, please check the following
points before contacting your supplier:
If the Radio fails to work, check that the battery is charged and
correctly fitted and that the radio is switched on. If the radio
does not receive or send calls, check that the antenna is
correctly fitted and the volume is turned up.
Check that there is sufficient signal strength at your position
using the signal strength indicator on the LCD display, if not
move to an area where the signal strength is adequate.
If the Radio displays an error message at switch on, please
refer to your supplier.
C O Y R
ARE F OUR ADIO
To keep your Radio clean use a slightly DAMP soft cloth for all
exterior surfaces - DO NOT use chemical, aerosol or abrasive
cleaners.
To ensure efficient operation, the battery contacts should be
periodically cleaned with a soft damp cloth.
Batteries must be disposed of in accordance with your local
Health & Safety Regulations. DO NOT incinerate or dispose of
as normal waste.
A
CCESSORIES
A wide range of accessories are available, contact your
supplier for details.
For greater operational functional detail, refer to the SRP9180
TMR (TNM-U-E-0089), PMR (TNM-U-E-0088) or P25 (TNM-U-
E-0091) User Manuals.
