Episode ES-600C-IC-5 Owner's Manual

SETTINGS

• After the speaker is installed, set the switch on the
front of the speaker to the desired loudness for each
location. Note 70V and 100V settings.
• In a non 70V or 100V system, set the switch to
16Ω (ohm) setting.
CAUTION: Do not set it to 16Ω in a 70V or 100V system, as it will damage the speaker.

GRILL INSTALLATION

Insert the grill into the speaker. Make sure it is secure and flush with the speaker frame.

OPTIONS

PIVOTING TWEETER ASSEMBLY

• The pivoting tweeter assembly can be directed to focus the sound where desired.
• Two common options are:
- Point it directly at the listening area for a more pointed sound source.
- Reflect if off hard surfaces for a more diffused sound field.

PAINTING

The grill and frame can be painted to match the ceiling color. Only paint the grill when it has been
removed from the speaker. The grill should be painted with great care taken not to clog the fine holes
with paint. Options of painting are:
• Spray paint ('dust') several thin layers instead of a few thick layers.
• Use a 'dry' brush or roller to minimize the amount of paint applied in each layer.

TROUBLESHOOTING

Episode® speakers are designed to function trouble-free. Most problems that occur are due to simple
issues. If you have trouble, please check the list of simple fixes below. If the problem persists, contact
Episode Customer Service at 1.866.838.5052.
NO SOUND
• Verify that there is audio coming from the source selected. Select another source if necessary.
• Ensure that any power amplifiers are turned on and connected properly.
• Check any connections at other devices, such as a volume control. Temporarily bypass
the control if needed.
• Check wire connections at each speaker not producing sound for good contact to bare
wire, not wire insulation.

WARRANTY

Limited Lifetime Warranty
Episode commercial Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor
Lifetime
repairs on all components found to be defective in material or workmanship under normal conditions of use.
This warranty shall not apply to products which have been abused, modified or disassembled. Products to
be repaired under this warranty must be returned to SnapAV or a designated service center with prior
notification and an assigned return authorization number (RA).
ES-600C-IC-5 ES-600C-IC-6
OWNER'S MANUAL >>
ES-600C-IC-5 • ES-600C-IC-6
Welcome to Episode . We appreciate your purchase and are committed to providing
®
the highest quality products possible.

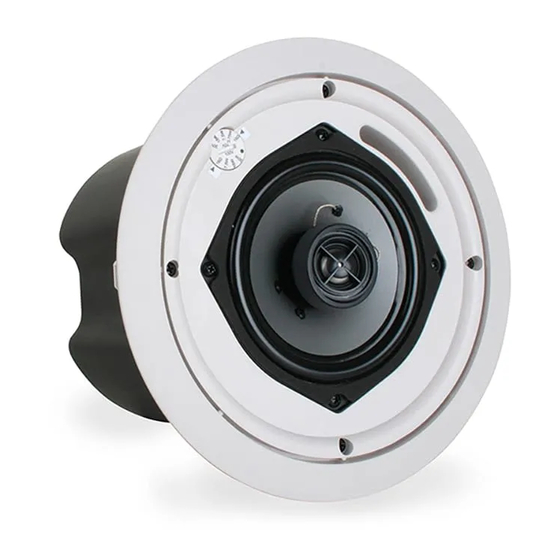

The Episode in-ceiling commercial models are a superb choice for 70V/100V music
®
distributed-line systems. They have been designed with advanced technological
components that allow for high performance and a lifetime of enjoyment.
Complies with UL 1480 and UL 2043 listings.
COMMERCIAL SPEAKERS
