- Page 1 Made for iPhone 5, iPhone 5s, iPhone 5c, iPad (4th generation), iPad Air, iPad mini, iPod touch (5th generation) DgT 650 USER MANUAL...
-
Page 2: Table Of Contents
Index Intro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 4: Intro

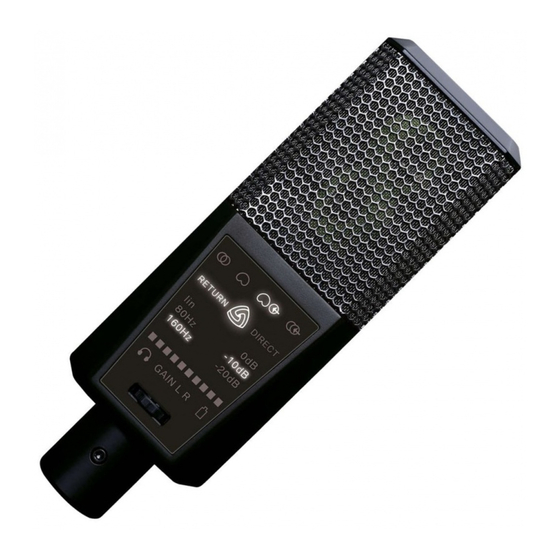

Plug in and record your guitar, synthesizer, mixing desk or any other line output-equipped device via the brea- kout box. You can even plug any MIDI input device directly into your DGT 650’s own 5-pin MIDI jack ... You see, this is way more than a simple USB microphone: it’s your Digital Multi-Tool. - Page 5 Features Top applications XY stereo capsule arrangement for authentic Home studio and live recording recordings of any acoustic event Mobile / outdoor recording Switchable to cardioid polar pattern Sample and demo recording Hi-Z stereo line-in (6.3 mm, ¼ inch) for directly Podcasts and YouTube productions connecting your instruments Illuminated user interface for quick and easy...
-
Page 6: Recording Modes
Recording Modes We’ve built four different recording modes into your DGT 650 to make it the most versatile USB microphone in the world, serving you as a true digital multi-tool. Since we’ll need to refer to those different modes later on in this user manual (and because we think they’re really cool), we’d like to briefly introduce them to you here:... -
Page 7: Setup
Connect the DGT 650 to the breakout box and the breakout box to the USB port. Download and install the drivers – please follow the onscreen instructions. To use the DGT 650 with your preferred sequencer / digital audio workstation, refer to the software manual. Download the Control Center at www .lewitt-audio .com/DgT-Series/DgT-650/Downloads... -
Page 8: User Interface
Return Monitor the output of your PC, Mac or iOS device Direct Monitor the input of the DGT 650 without any latency High-pass filter Use these filters to get rid of unwanted low frequencies like wind, footsteps, structure-borne noise, ... - Page 9 Displays a value for some settings the dedicated charging port to a PC’s USB port, but like headphone gain, input gain, and others. there’s no need to do so, since the DGT 650 will then be charged via the data connection. I/O gain...
-
Page 10: Operating The Microphone
The headphone symbol is lit. Rotate the jog dial to change the output volume. ATTENTION: Your DGT 650 has a professional, built-in headphone amp. Be sure to check your gain settings befor using headphones, the signal can be very loud. Honestly, we mean it - this can seriously harm your ears. - Page 11 Cardioid Mode selected Gain L R will be lit. Rotate the jog dial to change the gain. Singer/Songwriter Mode selected Gain L will be lit first. This lets you set the gain for the left channel – in this mode, it’s the cardioid microphone. Press the jog dial; Gain R will now be lit. This lets you change the gain of the right channel –...
-
Page 12: Tech Data
Tech Data general Resolution 24 Bit Microphone Acoustical operating principle Sample rates pressure gradient transducer, permanently polarized, 44.1 kHz // 48 kHz // 96 kHz XY-stereo Recording modes Transducer Ø 1: left / right = microphone X/Y 2 x 17 mm / 0.67 inch 2: left / right = microphone cardioid 3: left / right = stereo line-in Polar pattern... - Page 13 Dimensions 40 dB gain, no attenuators 138 x 52 x 36 mm, 5.43 x 2.04 x 1.42 inch Sensitivity: -5.6 dBFS Limiting spl: 100 dB Net weight Self-noise: 22.5 dB, 18 dB (A) 310 g, 10.9 oz Line-in Sensitivity, SPL, Self-noise Input impedance 0 dB gain, no attenuators >...
-
Page 14: Saftey Guidelines
Saftey guidelines The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress and force. To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures. -
Page 15: Warranty
To avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will not be serviced. Freight charges have to be covered by the owner of the product. -
Page 16: Regulatory Information
Please bring this device to a local recycling center at the end of its life time. LEWITT GmbH declares under its sole responsibility that DGT 650 complies with the European directive Manufacturers signature: 2004/108/EC and 2006/95/EC. The product has been...
