Summary of Contents for Lewitt LTS 240 Diversity C
- Page 1 MORE LIVE INTO YOUR SHOW . LTS 240 Diversity C+D...
- Page 2 LTS 240 Diversity C+D Introduction Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling and its proper usage. Reasonably priced, sophisticated and yet easy-to-use wireless vocal systems which deliver solid, distortion-free sound and excel in a variety of semi-professional studio and live applications.
- Page 3 In short, the LTS 240 Diversity C and the LTS 240 Diversity D systems offer everything that users expect from versatile, modern and durable entry-level wireless systems.

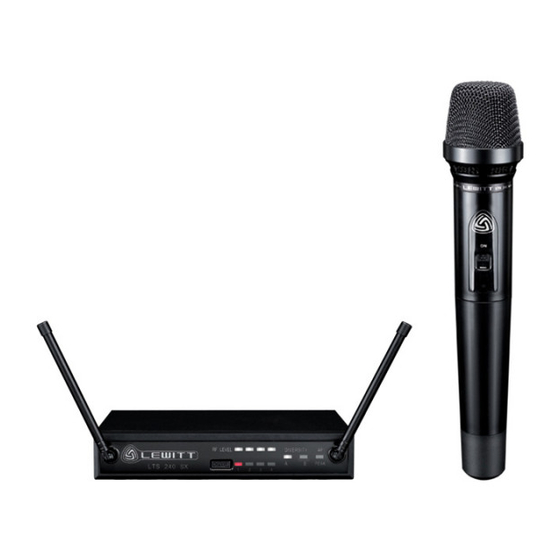

- Page 4 Features / Top applications Features ·LTS 240 Diversity C and Diversity D wireless systems are a top choice for ambitious entry-level users and performances in various acoustic environments ·The LTS 240 Diversity C set includes one handheld transmitter featuring a quality condenser capsule and a half-rack receiver with a sturdy metal housing ·The LTS 240 Diversity D set includes one handheld transmitter featuring a quality dynamic capsule and...
-
Page 5: User Interface
LTS 240 Diversity C+D Using the mic User-interface Receiver front ① Antenna A ② Antenna B ③ RF signal level LED meter ④ Audio signal level LED meter ⑤ Channel selection push button ⑥ Channel selection LED indicator ⑦ Active antenna indicator Receiver back ⑧... -
Page 6: Quick Start
LTS 240 Diversity C+D Using the mic Quick start 1. Connect the power supply to mains and the receiver ⑧. We recommend to secure the power cable with the security latch ⑨ on the backside of the receiver. 2. Make sure that the volume of your mixer is turned down before you connect the receiver via a balanced or unbalanced cable. - Page 7 LTS 240 Diversity C+D Using the mic Tech data Hints Dimensions 1 In order to prevent feedback (howling): ·Lower the volume. ·Place the microphone so that it is not pointed to the speaker and that there is a sufficient distance between the microphone and the speaker.
- Page 8 LTS 240 Diversity C+D Tech data Tech data Transmitters ·Transmission principle: ·Dimensions: UHF, FM, diversity 50 dia. x 262 mm · Directional pattern: cardioid 1,96 dia. x 10,3 inch ·Available channels: ·Net weight: 4 selectable channels 258 g ·Modulation: FM (25 kHz max. deviation), 9,1 oz.
- Page 9 LTS 240 Diversity C+D Accessories Accessories Power Supply AA Batteries LTS 40 MCs...
- Page 10 LTS 240 Diversity C+D Cautions Cautions · The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress and force. ·To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
-
Page 11: Warranty
While under warranty period, defective products may be returned to the authorized LEWITT dealer together with original proof of purchase. To avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will not be serviced. -
Page 12: Regulatory Information
LEWITT GmbH declares under its sole responsibility that WEEE note: Electronic waste has to be collected separately. Please bring LTS 240 Diversity D and LTS 240 Diversity C comply with the European this device to a local recycling center at the end of its life time. - Page 13 Mooslackengasse 17 1190 Vienna AUSTRIA info@lewitt-audio.com...
