- Page 1 Made for iPhone 6s, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone 5, iPhone 5s, iPhone 5c, iPad (4th generation), iPad Air, iPad mini, iPod touch (5th generation) DGT 450 USER MANUAL...
-
Page 2: Table Of Contents
Index Intro ..................Features . -
Page 4: Intro

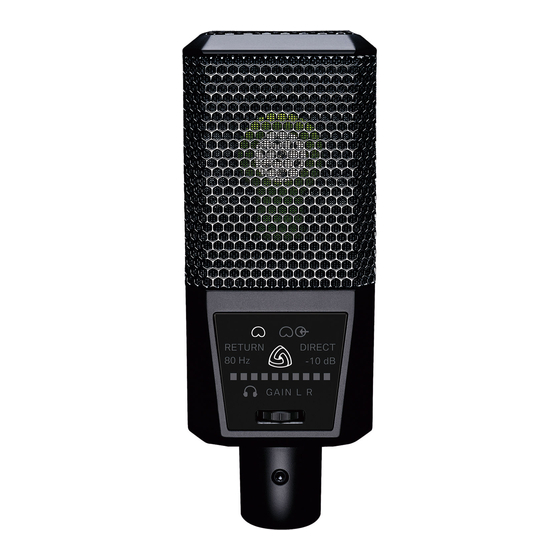

Intro Thank you for choosing a LEWITT DGT 450! In brief: It’s one of the most capable USB microphone on the market. It’s compatible with Windows, Mac and even iOS devices. It can be used to record vocals, instruments, ambient sound, samples, podcasts and more. -
Page 5: Features
Features Top applications Professional small diaphragm capsule for authentic Home studio and live recording recordings of any acoustic event Sample and demo recording Switchable to cardioid polar pattern Podcasts and YouTube productions Illuminated user interface for quick and easy Mobile / outdoor recording handling even in dark environments Streaming Recording with iPhone, iPod touch or iPad... -
Page 6: Recording Modes
Recording Modes We’ve built two different recording modes into your DGT 450 to make it more versatile, we’d like to briefly introduce them to you here: Cardioid Mode Best used for vocal recording or other applications where you need good rear rejection. -
Page 7: Setup
Connect the DGT 450 to the USB port. Download and install the drivers – please follow the onscreen instructions. To use the DGT 450 with your preferred sequencer / digital audio workstation, refer to the software manual. Download the Control Center at www.lewitt-audio.com/DGT-Series/DGT-450/Downloads... -
Page 8: User Interface
Return Monitor the output of your PC, Mac or iOS device Direct Monitor the input of the DGT 450 without any latency High-pass fi lter Use these fi lters to get rid of unwanted low frequencies like wind, footsteps, structure-borne noise, ... - Page 9 Decrease the gain or change the pre-attenuation setting. USB // use the dedicated USB port as power supply for the DGT 450. As long as it‘s connected to a PC‘s USB port, it will be powerd via the data connection.
-
Page 10: Operating The Microphone
The headphone symbol is lit. Rotate the jog dial to change the output volume. ATTENTION: Your DGT 450 has a professional, built-in headphone amp. Be sure to check your gain settings befor using headphones, the signal can be very loud. Honestly, we mean it - this can seriously harm your ears. - Page 11 Recording Mode The selected recording mode symbol is lit. Rotate the jog dial to change the recording mode if a Breakout Box is connected to the DGT 450. Press the jog dial to switch to the next setting. Monitoring Mode Use the jog dial to blend between tape return monitoring and direct monitoring .
-
Page 12: Tech Data
Tech Data Front to back ratio @ 1kHz ≥ 15 dB (A) Microphone Analog gain range Acoustical operating principle 0 to 44 dB pressure gradient transducer, permanently polarized, XY-stereo Microphone self noise (0 dB gain) ≤ 25 dB (A) Transducer Ø 17 mm / 0.67 inch Limiting SPL (0 dB gain) ≥... - Page 13 Dimensions Frequency response 138 x 52 x 36 mm 20 to 20,000 Hz 5,43 x 2,04 x 1,42 inch Operating principle Net weight Mono line input 310 g, 10.9 oz Analog gain range Compatible Platforms 0 to 12dB Apple and PC OS X (10.6 and up) , Windows XP , 7, 8 and 8.1 Headphones Output power...
-
Page 14: Saftey Guidelines
Saftey Guidelines The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress and force. To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures. -
Page 15: Warranty
To avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will not be serviced. Freight charges have to be covered by the owner of the product. -
Page 16: Regulatory Information
Please bring this device to a local recycling center at the end of its life time. LEWITT GmbH declares under its sole responsibility that DGT 450 complies with the European directive Manufacturers signature: 2004/108/EC and 2006/95/EC. The product has been...
