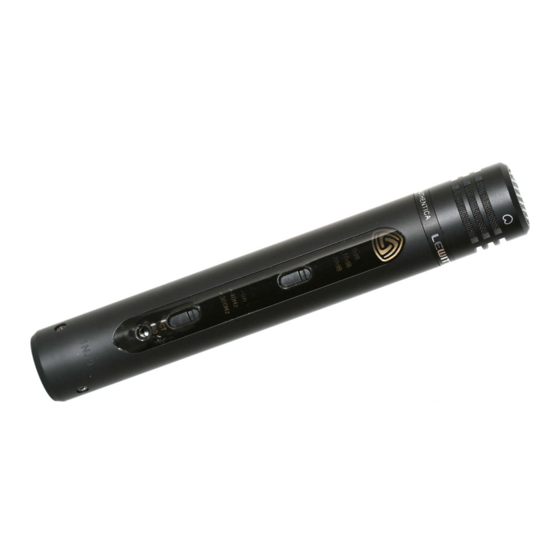

Lewitt LCT 140 Manual
Hide thumbs Also See for LCT 140:

Advertisement

Quick Links

www.lewitt-audio.com
EMPHASIZE
THE
GENUINE
IN
YOUR
SOUND.
LCT 140

Advertisement

loading
Need help?

Need help?

Do you have a question about the LCT 140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lewitt LCT 140

  • Page 1 EMPHASIZE GENUINE YOUR SOUND. LCT 140...
  • Page 2 LCT 140 Introduction Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling and its proper usage. With the LCT Authentica Series, LEWITT introduces a new generation of highly versatile wired condenser microphones that all aim for setting new benchmarks of technology, sound quality and user-friendliness in both professional studio recording and onstage use.
  • Page 3 Thanks to its uniform cardioid pickup pattern that effectively suppresses off-axis sound, a wide dynamic range of 124 dB and its very low self-noise, the LCT 140 adds transparency and distortion-free detail to every sound recording. Its transformerless output design makes it immune to electromagnetic interference.
  • Page 4 LCT 140 Features / Top applications Features · Neutral frequency response for natural reproduction ·Cardioid polar pattern for effective background noise rejection ·Wide dynamic range of 124 dB and very low self-noise level ·3-position switchable pre-attenuation pad (0 dB, 10 dB, and 20 dB) for handling extremely high sound pressure levels (SPLs) ·Illuminated user interface for quick and easy handling even in dark environments...
  • Page 5: User Interface

    LCT 140 Using the mic User-interface ① Illuminated attenuation indications High-pass filter indications ·The currently active high-pass setting is illuminated. ② Recessed attenuation slide switch ③ Illuminated high-pass filter indications Setting a high-pass filter ④ Recessed high-pass filter slide switch ·High-pass filters can be set by adjusting the recessed slide...
  • Page 6: Tech Graph

    LCT 140 Tech data 3 dB / unit Tech graph Dimensions dB ref. 1 V / Pa...
  • Page 7 LCT 140 Tech data Tech data ·Pre-attenuation pad: ·Acoustical operating principle: pressure gradient transducer, 10 dB, 20 dB, switchable ·Bass cut filter slope: permanently polarized 12 dB / octave at 40 Hz ·Transducer Ø: 17 mm 6 dB / octave at 300 Hz ·Rated impedance:...
  • Page 8 LCT 140 Accessories Accessories LCT 40 Ws DTP 40 Mts DTP 40 Lb...
  • Page 9 LCT 140 Cautions Cautions · The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress and force. ·To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
  • Page 10: Warranty

    While under warranty period, defective products may be returned to the authorized LEWITT dealer together with original proof of purchase. To avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will not be serviced.
  • Page 11: Regulatory Information

    LCT 140 Regulatory information LEWITT GmbH declares under its sole responsibility that LCT 140 complies WEEE note: Electronic waste has to be collected separately. Please bring with the European directive 2004/108/EC. The product has been tested this device to a local recycling center at the end of its life time.
  • Page 12 Mooslackengasse 17 1190 Vienna AUSTRIA info@lewitt-audio.com...
