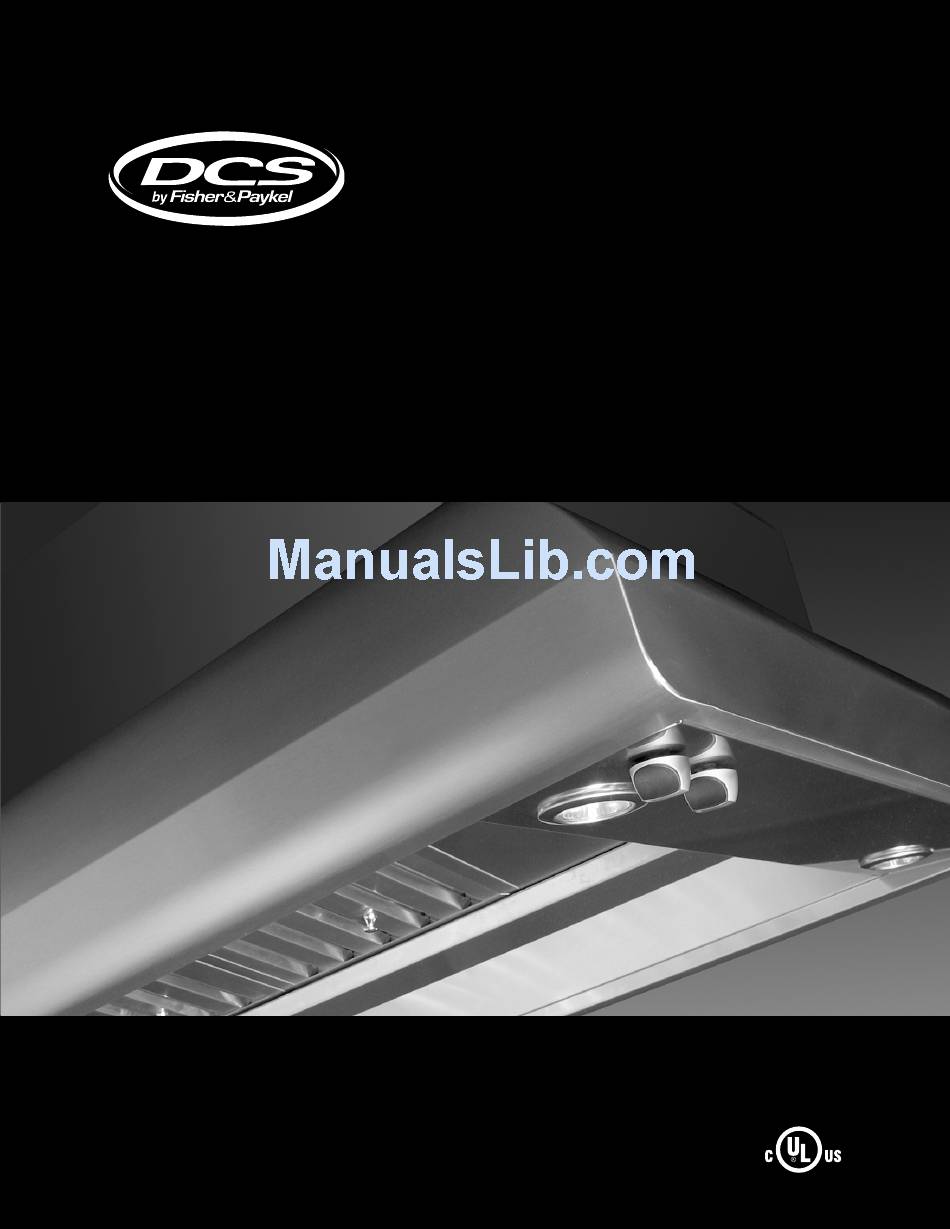

THE PROFESSIONAL ISLAND VENT HOOD
Use and Care Guide
MODELS:
IVS40
IVS52

Advertisement

loading
Need help?

Need help?

Do you have a question about the IVS40 and is the answer not in the manual?

Questions and answers

Related Manuals for DCS IVS40

Summary of Contents for DCS IVS40

  • Page 1 THE PROFESSIONAL ISLAND VENT HOOD Use and Care Guide MODELS: IVS40 IVS52...
  • Page 2 SERIAL NUMBER NOTE: Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. DCS by Fisher & Paykel is not responsible for shipping damage. DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

  • Page 3: Table Of Contents

    A MESSAGE TO OUR CUSTOMERS SAFETY WARNING: Turn off power circuit at service panel and lock out panel, before wiring this appliance. Requirement: 120 V AC, 60 Hz. 15 A Branch Circuit WARNING To reduce the risk of injury to persons in the event of a rangetop grease fire, observe the following: Turn burner off first.

  • Page 4: Safety Practices

    SAFETY PRACTICES AND PRECAUTIONS WARNING: To reduce the risk of a range top grease fire: A) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oil slowly on low or medium settings. B) Always turn hood “ON”...

  • Page 5: Use And Care

    USE AND CARE LIGHT Fig. 01 FAN CONTROL Turn to LO, MED, HI or MAX as needed. Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid. It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.
  • Page 6 USE AND CARE BLOWER The motor is operated by a four-speed control switch. You may change the speed of the motor depending on the amount of grease and smoke you are creating while cooking. ALWAYS USE THE MAX SETTING WHEN GRILLING. FILTERS AND DRIP TRAYS These hoods have reusable stainless steel grease baffles and drip trays.

  • Page 7: Care And Maintenance

    CARE AND MAINTENANCE TO CLEAN HOOD SURFACE I For general care, wipe the outside of the stainless steel with sudsy water or household cleaners such as Fantastic® or Formula 409®, rinse well and dry with clean soft cloth to avoid water marks.

  • Page 8: How To Obtain Service

    Is the circuit breaker tripped or the fuse blown? Is there a power outage in the area? For warranty service, contact DCS Customer Care Representative at (888) 936-7872. Before you call, please have the following information ready: Model Number (located on the inside of the top panel on the left, behind the rear back...

  • Page 9: Warranty

    WARRANTY LIMITED WARRANTY When you purchase a new DCS Ventilation Product for personal or consumer use you automatically receive a One year Limited Warranty covering parts and labor for the entire product, and a Five year Limited Warranty on the switches and motor (parts only) for servicing within the 48 mainland United States, Hawaii, Washington D.C and Canada.
  • Page 10 Please read your Use and Care Guide. If you then have any questions about operating the Product, need the name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at: TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com.
  • Page 11 Fisher & Paykel Appliances, Inc. 5900 Skylab Road, Huntington Beach, CA 92647 Customer Care: 888.936.7872 Fax: 714.372.7003 www.dcsappliances.com As product improvement is an ongoing process, we reserve the right to change specifications or design without notice. Nous améliorons constamment ses produits et se réserve le droit de modifier les spécifications ou la conception de ses produits sans aucun préavis.

This manual is also suitable for:

Ivs52
