Fantasy RC
DECORATIVE FUEL EFFECT GAS FIRE
User Instructions
These instructions should be read by the user before operating the
appliance and retained for future reference
Model No. GRDC**RN & GRDP**RN is only for use on Natural Gas
(G20) at a supply pressure of 20 mbar in G.B. / I.E.
** denotes trim/fret variant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fantasy RC and is the answer not in the manual?

Questions and answers

Related Manuals for Global Fires Fantasy RC

Summary of Contents for Global Fires Fantasy RC

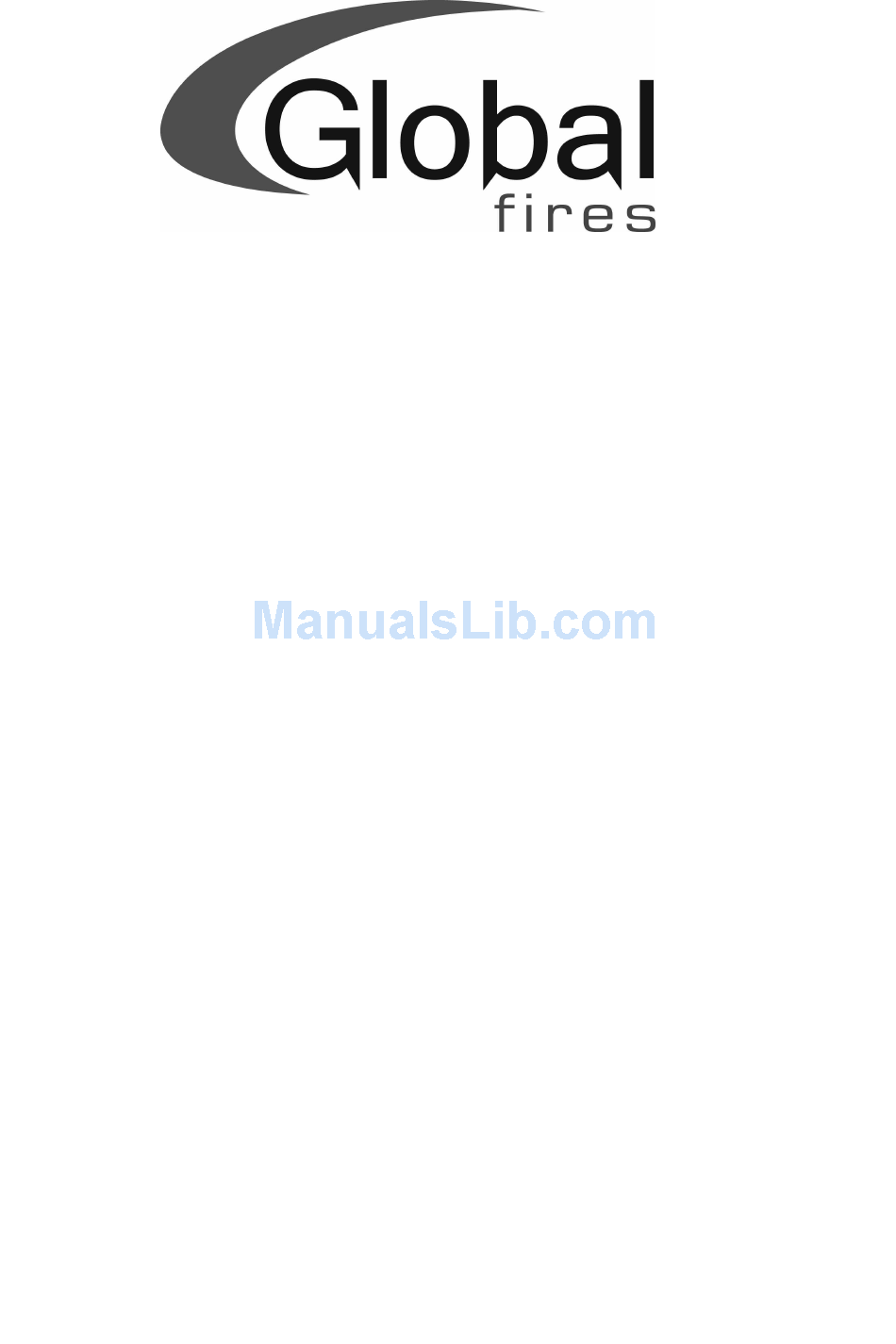

  • Page 1 Fantasy RC DECORATIVE FUEL EFFECT GAS FIRE User Instructions These instructions should be read by the user before operating the appliance and retained for future reference Model No. GRDC**RN & GRDP**RN is only for use on Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.

  • Page 2: Installation Information

    INSTALLATION INFORMATION CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed in accordance with the rules in force only by a competent (e.g. GAS SAFE Registered) Installer in G.B, and in accordance with the installation instructions and the Gas Safety (Installation and Use) Regulations 1998.

  • Page 3: Important Safety Information

    ABOUT YOUR NEW FANTASY PEBBLE GAS FIRE The Fantasy range of pebble fuel-bed gas fires incorporates a unique and highly developed fuel bed which gives the realism of a loose pebble layout combined with realistic flames and glow. The use of durable ceramic material in the construction of the fuel-bed components ensures long and trouble free operation.

  • Page 4: Spillage Monitoring System

    It is important that this appliance is serviced at least once a year by a GAS SAFE registered gas installer ( in G.B.) and that during the service the fire is removed from the fire opening and the flue pipe visually checked for debris or blockages which must be removed.
  • Page 5 OPERATING THE FIRE USING THE REMOTE CONTROL HANDSET The Remote control handset generates an infrared signal, which will be received by the sensor situated at the front right of your fire, behind the ashpan cover. This infrared signal requires direct line of sight from the handset to the sensor on the fire to ensure good operation.
  • Page 6 TURNING THE PRODUCT OFF IN THE UNLIKELY EVENT OF A REMOTE HANDSET MALFUNCTION. In the unlikely event of the remote control handset malfunctioning (or if lost or broken) after the appliance has been turned on, the fire can be turned off via the emergency shut off switch on the right hand control panel. Press and hold the emergency shut off switch until the fire shuts down.

  • Page 7: Cleaning The Fuel-Bed

    CLEANING - WARNING Before attempting any cleaning operation ensure that the fire has been allowed to fully cool. The trims are easily replaced by re-positioning them on the fire and pushing it back onto the magnets. Black painted metal parts should be gently cleaned with a damp cloth.

  • Page 8: Re-Assembling The Ceramics And Fuel Bed

    RE-ASSEMBLING THE CERAMICS AND FUEL BED (PEBBLE FUELBED MODELS) NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc.
  • Page 9 Pick pebbles A to E and arrange along the the front rail, ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See fig. 5 below) Fig. 5 Pebble C Pebble D Pebble E Pebble A Pebble B...
  • Page 10 Select pebbles K, L & M and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. (See fig. 7 below) Fig. 7 Pebble J Pebble N Pebble L Pebble K Pebble M Select the two small pebbles (J &...

  • Page 11: Re-Assembling The Fuel Bed

    RE-ASSEMBLING THE FUEL BED (COAL FUELBED MODELS) NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc.
  • Page 12 Fit five of the large sized coals onto the front ceramic rail, ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See fig. 12 below) Fig. 12 Select four of the large coals and arrange behind the front row of coals, ensuring that flame paths as indicated below are not interupted.
  • Page 13 Select three of the large coals and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. (See fig. 14 below) Fig. 14 Select the two small coals and position to fill the gaps at each end of the third row of coals, as shown.
  • Page 14 Select the remaining four coals and position along the rear edge of the fuelbed (see fig. 16 below) Fig. 16 The exact position and fit of the coals may be finely adjusted to give the most pleasing and random appearance. Warning : Use only the coals supplied with the fire.

  • Page 15: User-Replaceable Parts

    USER REPLACEABLE PARTS The only user replaceable parts on this fire are the fuelbed components and pebbles which may be replaced as described in the above section. Replacement of any other parts must be carried out by a competent person such as a GAS SAFE registered gas installer.
