Karara
DECORATIVE FUEL EFFECT GAS FIRE
Installation, Maintenance & User Instructions
Hand these instructions to the user
Model No's GSRC**MN, GSRP**MN & GSRD**MN are for use on
Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.
** denotes trim & fret variant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Karara and is the answer not in the manual?

Questions and answers

Related Manuals for Global Fires Karara

Summary of Contents for Global Fires Karara

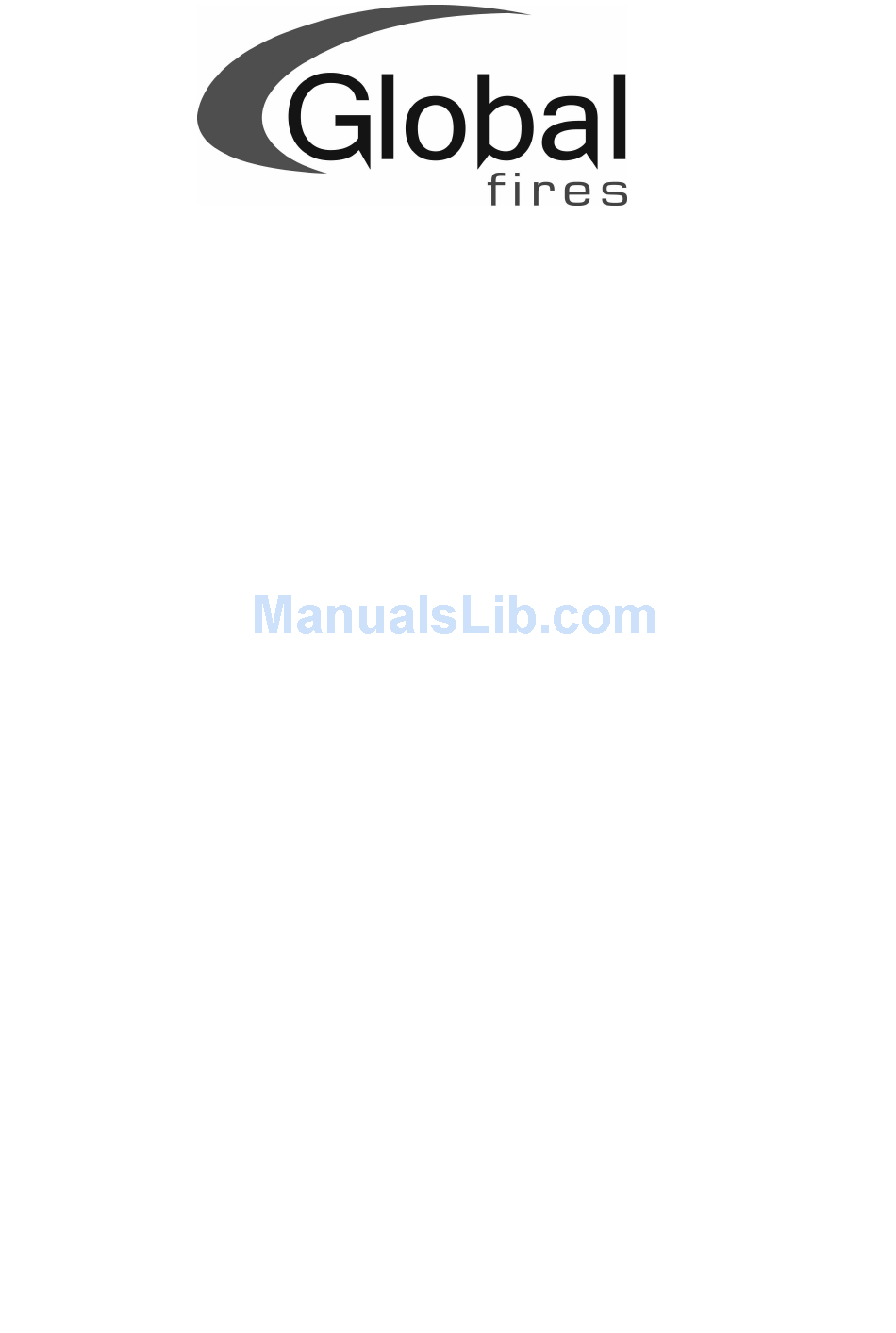

  • Page 1 Karara DECORATIVE FUEL EFFECT GAS FIRE Installation, Maintenance & User Instructions Hand these instructions to the user Model No’s GSRC**MN, GSRP**MN & GSRD**MN are for use on Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.

  • Page 2: Table Of Contents

    CONTENTS Section 1 Information and Requirements PAGE Appliance Information Conditions of Installation Flue and chimney suitability Fireplace / surround suitability Shelf position Chimney inspection Fire place opening / catchment space Fitting to Chair bricks Precast Flues Metal Flue boxes 1.10 Hearths 1.11 Spillage Monitoring System...

  • Page 3: Information And Requirements

    SECTION 1 INFORMATION AND REQUIREMENTS APPLIANCE INFORMATION Model GSRC**MN, GSRP**MN & GSRD**MN Gas Type Main injector (1 off) Size 440 Burner Type Aeromatic Self Vitiating Tubular Burner Max. Gross Heat Input : 6.5 kW Min. Gross Heat Input & Ignition Rate : 2.2 kW Cold Pressure : 20.0 +/-1.0 mbar...

  • Page 4: Conditions Of Installation

    INSTALLATION REQUIREMENTS CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed only by a GAS SAFE Registered Installer, in accordance with these installation instructions and the Gas Safety (Installation and Use) Regulations 1998 as amended. Failure to install appliances correctly could lead to prosecution.

  • Page 5: Fireplace / Surround Suitability

    FIREPLACE / SURROUND SUITABILITY The fire must only be installed on a hearth it must not be installed directly onto carpet or other combustible floor materials. The fire is suitable for fitting to non-combustible fire place surrounds and propri- etary fire place surrounds with a temperature rating of at least 150 o c. If a heating appliance is fitted directly against a wall without the use of a fire surround or fire place all combustible material must be removed from behind the trim.

  • Page 6: Fire Place Opening / Catchment Space

    There must be no leakage of smoke through the structure of the chimney during or after the smoke pellet test and it is important to check inside upstairs rooms adjacent to the chimney / flue. Check the chimney pot / terminal and general condition of the brickwork or masonry.
  • Page 7 Table A - Installation Depth Requirements for a Global Karara being installed into a brick built chimney, requiring 12.0 litres of debris collection volume (fig. 2). Opening Width (mm) Minimum Depth Required (mm) 330 (minimum opening width) 440 (maximum opening width) For example, if the appliance was to be fitted into a 400mm wide opening, the depth required would be 135mm.

  • Page 8: Fitting To Chair Bricks

    1.7 FITTING TO FIREPLACES WITH EXISTING CHAIRBRICKS AND CONVENTIONAL BRICKBUILT CHIMNEYS This appliance is suitable for use in fireplaces fitted with an existing chairbrick without the need for removal of the chairbrick, providing the minimum depth of the fireplace exceeds 175mm. If the depth is less than 175mm then the chairbrick must be removed.

  • Page 9: Hearths

    1.10 HEARTHS This appliance must only be installed on to a concrete or non-combustible hearth. The hearth material must be a minimum thickness of 12mm with the top surface at least 50mm above the floor. The hearth must be fitted symmetrically about the fire opening and have a minimum width of 760mm and a minimum projection of 300mm forwards from the fire opening.

  • Page 10: Installation Of Fire

    SECTION 2 INSTALLATION OF FIRE UNPACKING THE FIRE Carefully lift the fire out of the carton. Remove the loose item packaging carefully from the front of the appliance. Check the contents as listed :- Packing Check List - Coal Fuelbed Models 1off Fire box / burner assembly 1off...
  • Page 11 Proceed as follows :- Remove the two screws at the bottom of the control panel. See fig. 3 below Fig. 3 2 burner retaining screws The base of the burner unit can now be lifted, lift the two retaining tabs on the burner brackets from the back of the firebox, allowing the burner to be removed.
  • Page 12 Whilst the fire box is still in position, decide which side the gas supply is to enter the fire from. If concealed pipe work is required plan the pipe run to enter the fire box through one of the openings in the sides or rear of the fire box below the fuelbed support panel and connect to the isolating / inlet elbow.
  • Page 13 IMPORTANT : Sealing of the Gas Inlet Apertures In line with current GAS SAFE regulations, it is imperative that the gas supply inlet aperture that is utilised during the installation is sealed with the grommet as supplied in the loose items pack. The product is manufactured with 3 knock out gas inlets in the firebox wrap to allow a left hand, right hand or rear gas inlet supply to the inlet elbow.
  • Page 14 There is a choice of methods of fixing the firebox which are provided to enable the installer to deal with any type of installation. The preferred method of fixing which is suitable for almost all situations is the cable fixing method which is described in the following section in detail. The fire may be secured using the cable method as described below, or alternatively, in installations where the cable method is not suitable (eg.
  • Page 15 Position the fire carefully on the (protected) surface of the hearth and reach into the fire opening. Thread each of the cables vertically downwards through the pair of fixing eyes on the same side of the fire. Thread the free end of the cables through the corresponding circular hole on each side of the lower rear of the fire.

  • Page 16: Gas Tightness And Burner Pressure

    Before making the final gas connection, thoroughly purge the gas supply pipework to remove all foreign matter, otherwise serious damage may be caused to the gas control valve on the fire. The other firebox fixing method is as follows :- In installations where the cable method is not suitable (e.g.

  • Page 17: Assembling Fuel Bed And Commissioning

    continue to hold the control knob for a few seconds then turn to the full- on position. Check that the gas pressure is 20.0 mbar (+/- 1.0mbar) 8.0 in w.g.(+/- 0.4 in w.g.) Turn off the fire, remove the manometer and refit the pressure test point screw.
  • Page 18 Position the front row of four loose coals along behind the first row of coals, ensuring that the flame paths as indicated are not interupted. See Fig. 11 below Fig. 11 Fit the remaining three coals onto the ribs in the fuelbed as shown below, ensuring that the rear flame paths as indicated are not interupted See Fig.

  • Page 19: Assembling The Ceramics And Fuelbed (Pebble Models)

    The exact position and fit of the coals may be finely adjusted to give the best appearance. Warning : Use only the coal set supplied with the fire. When replacing the coals remove the old coals and discard them. Fit a complete set of coals of the correct type.
  • Page 20 Position the front row of four large loose pebbles along behind the first row of pebbles, ensuring that the flame paths as indicated are not interupted. See Fig. 14 below Fig. 14 Beige Pebbles to be Positioned as shown Fit the three small pebbles onto the ribs in the fuelbed as shown below, ensuring that the rear flame paths as indicated are not interupted.

  • Page 21: Assembling The Ceramics And Fuelbed (Driftwood Models)

    To ensure that the release of fibres from these R.C.F (Refractory Ceramic Fibre) articles is kept to a minimum, during installation and servicing we recommend that you use a HEPA filtered vacuum to remove any dust accumulated in and around the appliance before and after working on the appliance.
  • Page 22 Position the piece of driftwood with the letter “A” stamped onto the bottom face of it in the position at the left-hand side of the fuelbed matrix. Ensure the positioning grooves as shown are on the top face of the piece of driftwood. See Fig. 17 below. Fig.
  • Page 23 Position the piece of driftwood with the letter “C” stamped onto the bottom face of it in the position at the right-hand side of the fuelbed matrix. Ensure the positioning grooves as shown are on the top face of the piece of driftwood. See Fig. 19 below. Fig.
  • Page 24 Position the piece of driftwood with the letter “E” stamped onto the bottom face of it in the position at the front centre of the fuelbed matrix. Ensure this piece of driftwood is located into the groove on driftwood piece “C” . See Fig. 21 below. Fig.
  • Page 25 Position the piece of driftwood with the letter “G” stamped onto the bottom face of it in the across the left hand side of the fuelbed matrix, locating into the grooves on driftwood pieces “A” & “B”. See Fig. 23 below.
  • Page 26 IMPORTANT INFORMATION REGARDING FUELBED POSITION ON COAL, PEBBLE & DRIFTWOOD MODELS. Before continuing with the installation, ensure that the fuelbed is located behind the locating tabs as shown below in Fig. 24, not on top of the locating tabs as shown in Fig. 25 Fig.

  • Page 27: Fitting The Trim

    FITTING THE TRIM Models supplied with three piece trim a) Fit the 2 side pieces of the trim by overlapping the lips of the trim over the side lips of the firebox, and securing with the magnets provided b) Fit the top piece of the trim by overlapping the lips of the trim over the lips of the firebox and over the 2 side trims.

  • Page 28: Lighting The Appliance

    LIGHTING THE APPLIANCE (All models) Turn on the gas isolation tap. Depress the control knob and turn anti-clockwise to the position marked ignition / low rate. Hold in the control knob for a few seconds to purge the pipe work. Continue to hold-in the control knob and press the igniter button.
  • Page 29 If there is an extractor fan fitted any where in the vicinity of the appliance, or in adjacent rooms the spillage test should be repeated with the fan running on maximum and all interconnecting doors open. After ensuring that the fire is safe to use it should be left on high position to fully warm up.

  • Page 30: Maintenance

    SECTION 4 MAINTENANCE Servicing Notes Servicing should be carried out annually by a competent person such as a GAS SAFE registered engineer. This is a condition of the BFM Europe guarantee schemes. The service should include visually checking the chimney and fire opening for accumulations of debris and a smoke test to check for a positive up-draught in the chimney.

  • Page 31: Removal Of The Control Tap

    Removing the Control Tap from the fire. 4.3.1 Remove the burner assembly as in section 4.1. 4.3.2 Pull the control knob off the control tap spindle. 4.3.3 Loosen and remove the two gas pipe retaining nuts from the control tap and release the ends of the gas pipes from the control tap body. Remove the push in thermocouple from the end of the control tap.

  • Page 32: Conditions Of Installation / About Your New Gas Fire

    SECTION FIVE - USER INSTRUCTIONS 5.1 Installation Information Conditions of Installation It is the law that all gas appliances are installed only by a competent (e.g. GAS SAFE Registered) Installer, in accordance with the installation instructions and the Gas Safety (Installation and Use) Regulations 1998. Failure to install appliances correctly could lead to prosecution.

  • Page 33: Important Safety Information

    About your Global Karara The Global Karara Multiflue range of coal, pebble & driftwood fuel-bed gas fires incorporates a unique and highly developed fuel bed which gives the realism of a loose coal or pebble layout combined with realistic flames and glow. The use of durable ceramic material in the construction of the fuel-bed components ensures long and trouble free operation.

  • Page 34: 5.2 Operating The Fire

    The ceramic fuel-bed remains hot for a considerable period after use and sufficient time should be allowed for the fire to cool before cleaning etc. The fire must only be operated with the trim and fret supplied with the fire. 5.2 Operating the Fire The controls are located behind the ashpan cover which is situated below the fret or contemporary ashpan cover.

  • Page 35: Assembling The Coal Fuelbed

    ASSEMBLING THE FUEL-BED - Coal Fuelbed Model NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc.
  • Page 36 Fit the remaining three coals onto the ribs in the fuelbed as shown below, ensuring that the rear flame paths as indicated are not interupted See Fig. 28 below. Fig. 28 The exact position and fit of the coals may be finely adjusted to give the best appearance.

  • Page 37: Assembling The Pebble Fuelbed

    ASSEMBLING THE FUEL-BED - Pebble Fuelbed Model NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc.
  • Page 38 Fit the three small pebbles onto the ribs in the fuelbed as shown below, ensuring that the rear flame paths as indicated are not interupted. See Fig. 31 below. Fig. 31 Beige pebbles to be positioned as indicated The exact position and fit of the pebbles may be finely adjusted to give the best appearance.

  • Page 39: Assembling The Driftwood Fuelbed

    ASSEMBLING THE FUEL-BED - Driftwood Fuelbed Model NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc.
  • Page 40 Position the piece of driftwood with the letter “B” stamped onto the bottom face of it in the position at the centre of the fuelbed matrix. Ensure the positioning grooves as shown are on the top face of the piece of driftwood. See Fig. 34 below. Fig.
  • Page 41 Position the piece of driftwood with the letter “D” stamped onto the bottom face of it in the position at the right-hand side of the fuelbed matrix. Ensure this piece of driftwood is located into the groove in the front right hand side of the fuelbed matrix . See Fig. 36 below. Fig.
  • Page 42 Position the piece of driftwood with the letter “F” stamped onto the bottom face of it in the across the centre of the driftwood pieces “A”, “B” & “C”. Ensure this piece of driftwood is located into the groove’s on the top face of driftwood pieces A, B &...
  • Page 43 Warning : Use only the driftwood set supplied with the fire. When replacing the driftwood remove the old driftwood pieces and discard them. Fit a complete set of driftwood pieces of the correct type. Do not fit additional driftwood or any driftwood pieces other than a genuine replacement set. To ensure that the release of fibres from these R.C.F (Refractory Ceramic Fibre) articles is kept to a minimum, during installation and servicing we recommend that you use a HEPA filtered vacuum to remove any dust...
  • Page 44 IMPORTANT INFORMATION REGARDING FUELBED POSITION ON BOTH COAL, PEBBLE & DRIFTWOOD MODELS. Before continuing with the installation, ensure that the fuelbed is located behind the locating tabs as shown below in Fig. 40, not on top of the locating tabs as shown in Fig. 41 Fig.

  • Page 45: Cleaning The Fire

    5.6 Cleaning - WARNING Before attempting any cleaning operation ensure that the fire has been allowed to fully cool. The Brass fret that was supplied with the fire (dependent upon model chosen) is real brass and therefore will discolour with use and should be cleaned with a proprietory metal polish.
  • Page 46 Place ashpan cover under fret assembly and centralise. PLEASE NOTE : TO INCREASE CUSTOMER CHOICE, SOME MODELS WITHIN THIS RANGE ARE NOW SUPPLIED WITH A FRET DIRECTLY BY THE RETAILER, AND ONLY THE TRIM IS FACTORY SUPPLIED. THEREFORE, PLEASE CONSULT YOUR RETAILER FOR ADVICE ON FITTING AND CLEANING INSTRUCTIONS FOR THESE TYPES OF FRETS.
