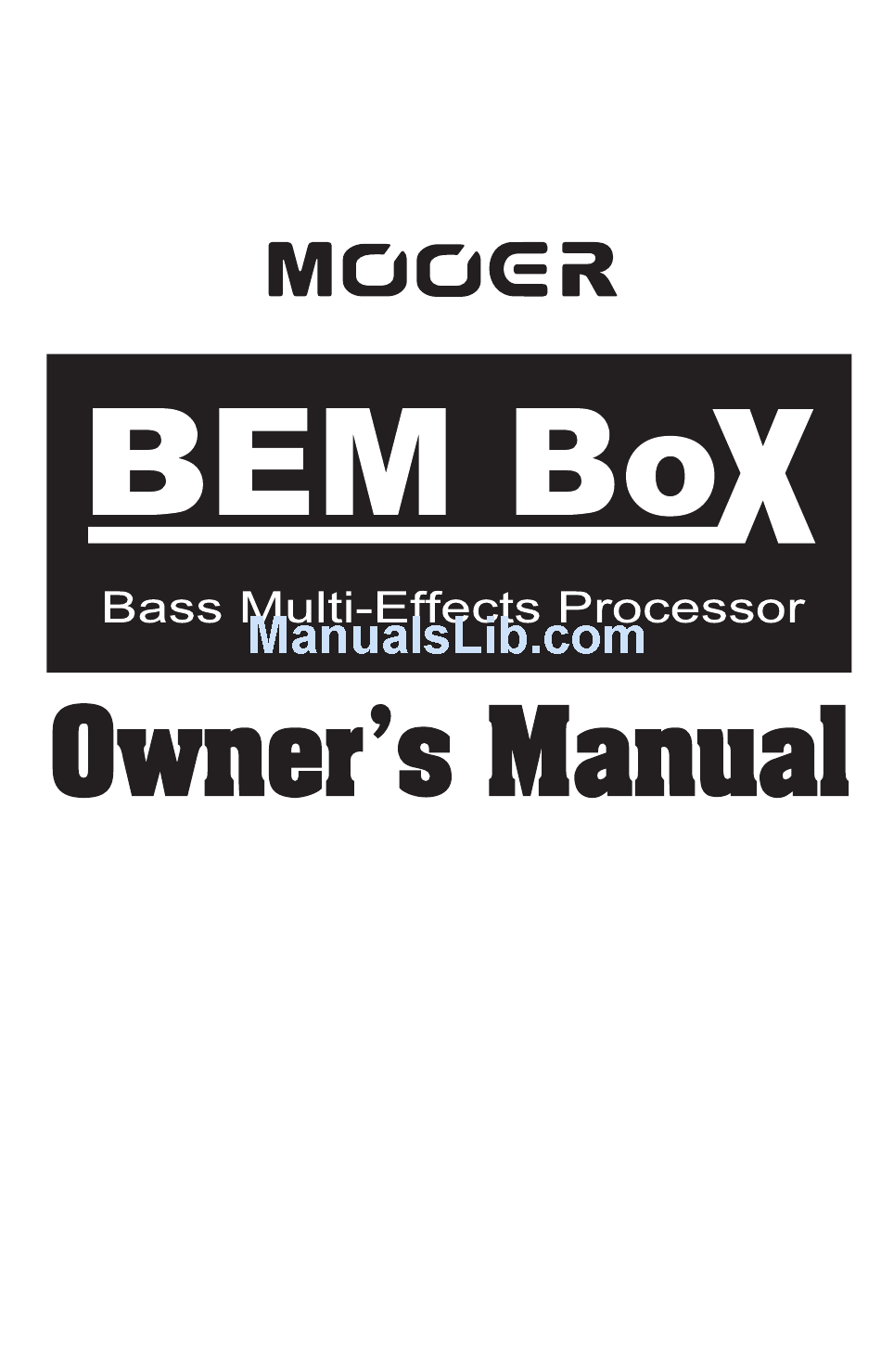

Mooer BEM BoX Owner's Manual

Mooer BEM BoX Owner's Manual

Bass multi-effects processor

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEM BoX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mooer BEM BoX

  • Page 2: Table Of Contents

    Contents Precautions ............02 Items Explanation ..........03 Main Features ............04 Battery Operation ..........04 Panel Instruction ...........05 Connections ............07 Operation ...............08 ..........08 Patch Selecting ..........09 Drum Rhythm Tuner ..............10 ..........11 Expression Pedal Patch Editing ............13 Patch Storing/Copying ........15 .....16 Patch Pre-Select Recall Function Factory Reset ...........17 Effects Explanation...
  • Page 3: Precautions

    Precautions * PLEASE READ CAREFULLY BEFORE PROCEEDING * Power Supply Please connect the designated AC adapter to an AC outlet of the correct voltage. Please be sure to use only an AC adapter which supplies 9V DC, 300 mA, center minus. Unplug the AC power adapter when not using or during electrical storms.
  • Page 4: Items Explanation

    A patch is comprised of information about the on/off status and effect parameter settings used in each module. Bank A bank is a group of ten patches. BEM Box has 8 banks, labelled with numbers 0 to 3 (unchangeable preset banks) and letters A to d (editable user banks).
  • Page 5: Main Features

    AA battery (x4) power supply Battery Operation 1. Turn off the BEM Box and open the battery holder on the bottom. 2. Insert 4 AA batteries and close the battery holder. Note: When the batteries are getting low, the display will show to indicate this situation.
  • Page 6: Panel Instruction

    Panel Instruction...
  • Page 7 EXP. PEDAL LED: Indicates the status of the expression pedal. INPUT Jack: 1/4” mono audio jack, for connecting bass. When operating BEM Box on batteries, plugging bass cable into this jack will turn on the unit. OUTPUT [PHONES] Jack: 1/4” stereo audio jack, for connecting headphone or bass amplifier.
  • Page 8: Connections

    Connections AC adapter Bass amplifier Bass amplifier Bass Headphones...
  • Page 9: Operation

    Adjusting the master volume Set the Module Selector to [PLAY], rotate [VALUE] knob to adjust the master volume of BEM Box (when setting up the master volume, LED display will show the current level). The range of master volume is...
  • Page 10: Drum Rhythm

    Drum Rhythm Selecting Drum Rhythm Type Set the Module Selector to [RHYTHM], LED display will show the rhythm type firstly, and then rotate the [VALUE] knob to select the rhythm type ( Adjusting Drum Rhythm Volume Set the Module Selector to [RHYTHM], LED display will show the rhythm type firstly, and then press [VALUE] button once, at that time, LED displays the...
  • Page 11: Tuner

    Play one bass string at a time, and adjust the bass pitch as LED’s instruction. Quit Tuner When in tuning mode, press both [PATCH –] and [PATCH +] footswitches together or anyone of these 2 footswitches to quit tuning state. BEM Box will return to PLAY mode.
  • Page 12: Expression Pedal

    Volume Control If the [EXP. PEDAL] LED is not lighted up, the expression pedal will be a volume pedal for controlling the master level of BEM Box. Effect Control If the [EXP. PEDAL] LED is lighted up, the expression pedal will be an expression pedal for controlling the effect’s parameter which...
  • Page 13 Pedal Reset The responsivity of the expression pedal on BEM Box can be reset as necessary. If the effect change seems insufficient when pushing the pedal down, or if the volume or tone changes excessively even when the pedal is only lightly pushed, or if it’s hard to switch the...
  • Page 14: Patch Editing

    Patch Editing Select Effect Module Set the Module Selector to the effect module which you want to edit, the available setting options are listed below: 01.PATCH LEVEL (Para) 02.PEDAL (Para) 03.COMP/WAH (Type & Para) 04.DRIVE (Type) 05.GAIN (Para) 06.EQ (Type & Para) 07.NR/CAB (Type &...
  • Page 15: Adjusting The Patch Level

    Patch Editing Change Setting Press [VALUE] knob to change effect/parameter type ahead, hold and rotate [VALUE] knob to change effect/parameter type ahead (clockwise) or backwards (anticlockwise), rotate [VALUE] knob to set a new value of the effect type or parameter. As long as the selected item’s value changes, a dot (.) will appear in the bottom right of the display.
  • Page 16: Patch Storing/Copying

    Patch Storing/Copying Enter Storing Mode Set the Module Selector to [STORE] to enter storing mode, the display will show the current editing patch’s number. Storing/Copying Patch When in [STORE] mode, press [VALUE] button once to do the storing, the patch’s number on the display will begin to flash, at that time, rotate [VALUE] knob or press [PATCH -] / [PATCH +] footswitch to...
  • Page 17: Patch Pre-Select Recall Function

    To use this function, conform to the following instructions: 1. Before power on, hold down the [PATCH +] footswitch, and then power to the BEM Box, will appear on the display and last flashing for 3 seconds, it indicates setting up to Patch Pre-Select function successfully.
  • Page 18: Factory Reset

    Factory Reset Factory Reset function will initialize all setting of BEM Box. All the user patches will be erased and overwritten by the preset patches. To do the factory reset, conform to the following instructions: Before power on, set the Module Selector to [PLAY], hold down the...
  • Page 19: Effects Explanation

    Effects Explanation General Instruction BEM Box has 8 effect modules, 55 types of effect in total, can offer up to 8 simultaneous effects (NR/CAB module can offer 2 effects at a time). Each effect module has several different effect types, only one type can be selected at a time.
  • Page 20: Drive Module

    Effects Explanation This effect varies wah sound according to picking intensity. Sense Wah The parameter’s value controls the Sensitivity. This effect varies wah sound by controlling the expression pedal. Pedal Wah The parameter’s value controls the Central Frequency This mark means the parameter can be controlled by the expression pedal if corresponding type was chosen in PEDAL module.
  • Page 21 Effects Explanation EQ Module Type Name Display Effect Explanation This controls the bottom band of the equalizer, the central frequency is 70Hz. The parameter ’s value controls the Gain. This controls the middle band of the equalizer, the central frequency is 450Hz.
  • Page 22: Delay Module

    Effects Explanation MODULATION Module Type Name Display Effect Explanation This effect creates a shining dimensional sound. The parameter’s Chorus value controls the Depth. This effect produces an undulating and floating feeling sound. The Flanger parameter’s value controls the Depth. This effect produces another kind of flanger sound. The parameter’s Talk Flanger value controls the Depth.
  • Page 23: Specification

    Effects Explanation/ Specification REVERB Module Type Name Display Effect Explanation Simulates the acoustics of a Room. The parameter’s value controls Room the Reverb’s Level. Simulates the acoustics of a Chamber. The parameter’s value Chamber controls the Reverb’s Level. Simulates the acoustics of a concert Hall. The parameter’s value Hall controls the Reverb’s Level.
  • Page 24: Troubleshooting

    Troubleshooting Can not power on Check power connection. ------ Make sure the power is connected correctly. Check the adapter. ------ Make sure the adapter’s type is DC9V/300mA/center minus. When using battery, check whether the cable is inserted entirely to the INPUT jack.
  • Page 25: Appendix

    Appendix Patch List Patch Patch Name Pedal Assign Patch Patch Name Pedal Assign Space Solo Volume Pure Hall Volume Modulation Depth Thick Chorus Funky Filter Volume Volume Bass Drive Nice Vib Volume Tremolo Bass Metal Saw Modulation Rate Volume Modulation Depth Old Drive Volume Little Weird...
  • Page 26: Drum Rhythm List

    Drum Rhythm List Drum Rhythm List Type Time Signature Default Tempo 8Beat1 120 BPM 8Beat2 120 BPM 8Beat3 120 BPM 8Beat4 120 BPM 8Beat5 120 BPM 16Beat1 120 BPM 16Beat2 120 BPM 16Beat3 120 BPM 16Beat4 120 BPM 16Beat5 120 BPM 3/4Beat 120 BPM 6/8Beat...
  • Page 27 MOOER AUDIO CO.,LTD www.mooeraudio.com...
