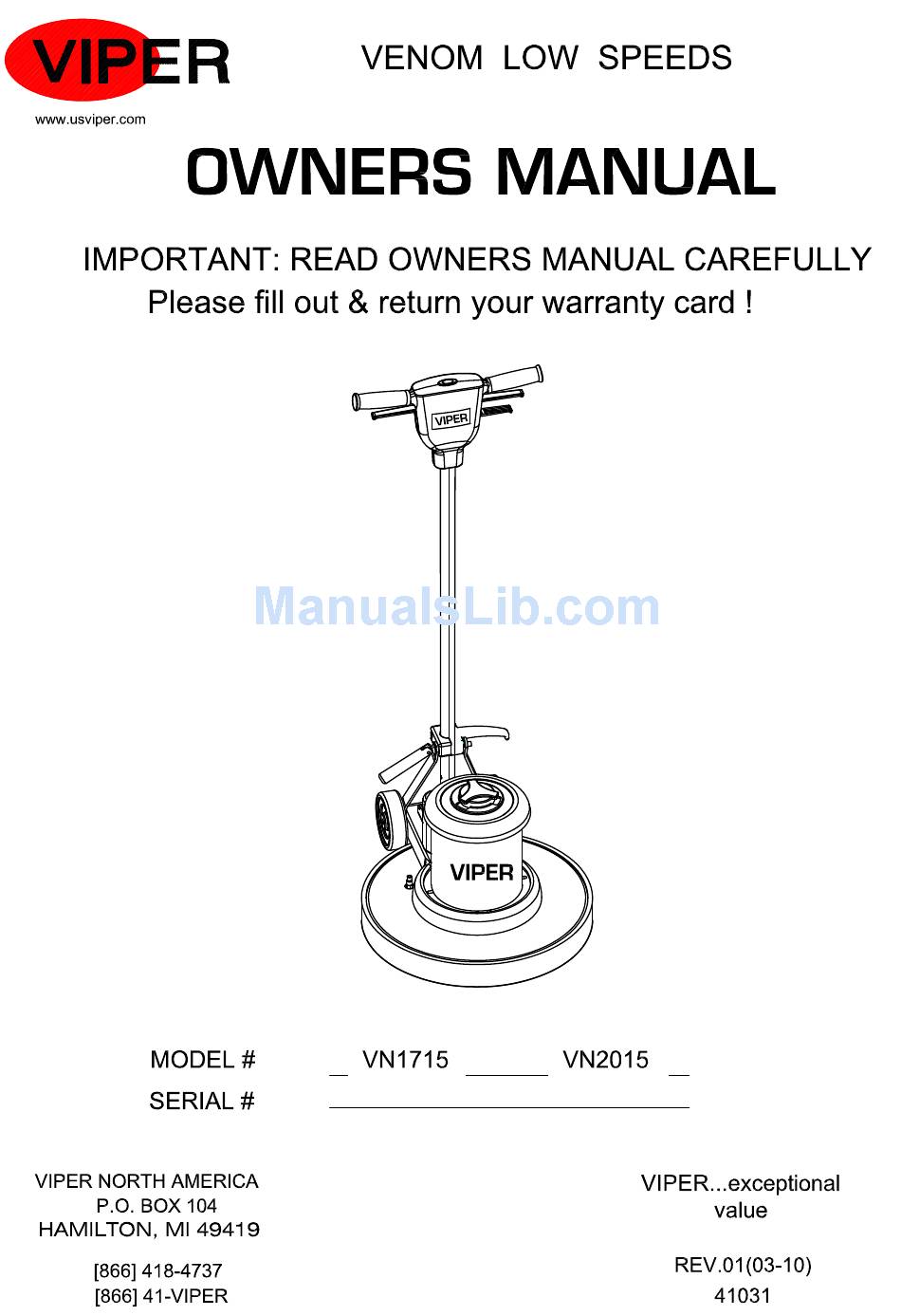

- Page 1 17 inch model 20 inch model 17 inch model 20 inch model...
- Page 2 CONGRATULATIONS on your purchase of a Viper product and welcome to the V.I.P. family. We appreciate your business and will do everything in our power to keep you happy with your purchase for many years to come. As part of the V.I.P. family, you are entitled to the best protection by one of the most comprehensive warranties in the industry.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS GROUNDING INSTRUCTIONS Unless trained and authorized. General –This floor – finishing machine shall be Unless you have read and understand grounded while in use to protect the operator operators manual. from electric shock. The machine is provided In flammable or explosive areas. with a three –conductor cord and a three contact With a damaged cord or plug. -
Page 4: General Use
Operation of Floor Machines To stop the machine at any time, * READ OPERATORS MANUAL simply release the operating trigger(s) THOROUGHLY PRIOR TO OPERATING OR and the machine will stop automatically. SERVICING THIS MACHINE. MAINTENANCE GENERAL USE To keep the machine performing well for 1. - Page 6 HANDLE GROUP FOR VN1715 & VN2015 PART DESCRIPTION NUMBER REQ'D VF30016 HANDLE RELEASE VF30015 BOLT, HANDLE RELEASE VF30018 WASHER, PLAIN VF13503 NUT, LOCK, M8 X 5.7 VF30017 SCREW VF30014 COVER, HOOK VF45125 CORD, HANDLE AS41901 PLUG PROTECTOR, SMALL MALE VF50120A...
- Page 8 BASE GROUP FOR VN1715 & VN2015 PART DESCRIPTION NUMBER REQ'D GT13080 SCREW, M6 X 30 VF30011 CLAMP BLOCK, HANDLE VF30026 AXLE VF30020 BRACKET, LEFT HANDLE VV20274 WASHER, PLAIN, M13 GV40235 CLAMP BLOCK, AXLE VV13621 SCREW, SELF-TAPPING, ST, M5 X 20...
- Page 9 BASE GROUP FOR VN1715 & VN2015 PART DESCRIPTION NUMBER REQ'D VF50119 WASHER, PLAIN, M12 VF14214 SCREW, M5 X 8 VF48202 WHEEL, 5" VF40994 LABEL, READ MANUAL VF44012 SCREW, M6 X 12.7 VF13666 WASHER, M6 VF13604 WASHER, LOCK, EXTERNAL TOOTH YCQ10615...
