User Manual
VE 13P-EU
VE 15P-EU
VE 18P-EU
Advertisement
Table of Contents
Related Manuals for Viper VE 13P-EU
Summary of Contents for Viper VE 13P-EU
- Page 1 User Manual VE 13P-EU VE 15P-EU VE 18P-EU english User Manual…………………………………………… 1-10 deutch Betriebsanleitung……………………………………… xxx Notice d’utilisation ………………………………….… xxx francais nederlands Gebruiksaanwijzing…………………………………… xxx Istruzioni sull ´ uso……………………………………… xxx italiano espanol Instrucciones de manejo………………………………xxx portugues Instruções de operação………………………………. xxx Company information: www.vipercleaning.eu...
-
Page 2: Table Of Contents
USER MANUAL ENGLISH TABLE OF CONTENTS INTRODUCTION ................................2 MANUAL PURPOSE AND CONTENTS ............................2 TARGET......................................2 HOW TO KEEP THIS MANUAL............................... 2 DECLARATION OF CONFORMITY ..............................2 OTHER REFERENCE MANUALS..............................2 SPARE PARTS AND MAINTENANCE............................. 2 CHANGES AND IMPROVEMENTS ..............................3 OPERATION CAPABILITIES ................................ -
Page 3: Introduction
TARGET This Manual is intended for operators and technicians qualified to perform the machine maintenance. The operators must not perform procedures reserved for qualified technicians. VIPER will not be answerable for damages coming from the non-observance of this prohibition. HOW TO KEEP THIS MANUAL The User Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that can cause damage to it. -
Page 4: Changes And Improvements
ENGLISH CHANGES AND IMPROVEMENTS VIPER constantly improves its products and reserves the right to make changes and improvements at its discretion without being obliged to apply such benefits to the machines that were previously sold. Any change and/or addition of accessories must be approved and performed by VIPER. -
Page 5: General Instructions
– To avoid any risk, if the power supply cable is damaged, contact VIPER Service Center or a qualified technician. – Do not pull or carry the machine by the power supply cable and never use the power supply cable as a handle. Do not close a door on the power supply cable, or pull the power supply cable around sharp edges or corners. - Page 6 VIPER Service Center or a qualified technician. – If parts must be replaced, require ORIGINAL spare parts from an authorized VIPER Dealer or Retailer. – To ensure machine proper and safe operation, the scheduled maintenance shown in the relevant chapter of this manual must be performed by the authorized personnel or by an authorized VIPER Service Center.
-
Page 7: Machine Description

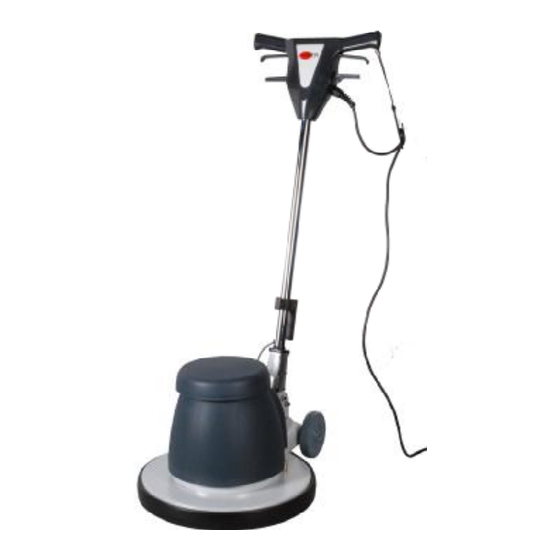

ENGLISH USER MANUAL MACHINE DESCRIPTION MACHINE STRUCTURE 1. Guide handle 11. Wheel 12. “U” Shape bracket 2. Switch Lever, Right 3. Adjustment Lever 13. Cord 4. Shaft 14. Lever Solution 5. Cord wrap 15. Switch Lever, Left 6. Housing, Gear index 16. -
Page 8: Technical Data
USER MANUAL ENGLISH TECHNICAL DATA Model VE13P-EU VE15P-EU VE18P-EU SCRUBTEC 553E SCRUBTEC 553E SCRUBTEC 553E 220 – 240 V 220 – 240 V 220 – 240 V Voltage Power 500 W 1300 W 1300 W Current 2.9 A Frequency 50-60 Hz 50-60 Hz 50-60 Hz Brush Speed... -
Page 9: Wiring Diagram
ENGLISH USER MANUAL WIRING DIAGRAM FOR VE13P-EU Switch Housing Switch Brown Brown Brown White Blue Blue Blue Motor White Startup Capacitor 75 F/250V μ H05VV-F 3G1.5 Handle Motor Running Power Cord Cord Capacitor Supply 10 F/500V μ Cord WIRING DIAGRAM FOR VE15P-EU VE18P-EU Switch Housing Switch... -
Page 10: Before Starting The Polisher
USER MANUAL ENGLISH BEFORE STARTING THE MACHINE ASSEMBLY For transport reasons the motor head and shaft are supplied not assembled. 1] Insert the gear index housing (1) into the “U” shape bracket (2). 2] Align the holes of the gear index housing and the “U” shape bracket. 3]Insert the socket screws into the holes of the “U”... -
Page 11: Maintenance
ENGLISH USER MANUAL 8] When the machine is in operation, both hands should be placed on the switch housing {upper handle}. 9] During operation, to make the machine go right, gently raise the handle. To make the machine go left, gently lower the handle. 10] To stop the machine at any time, simply release the operating trigger and the machine will stop automatically.
