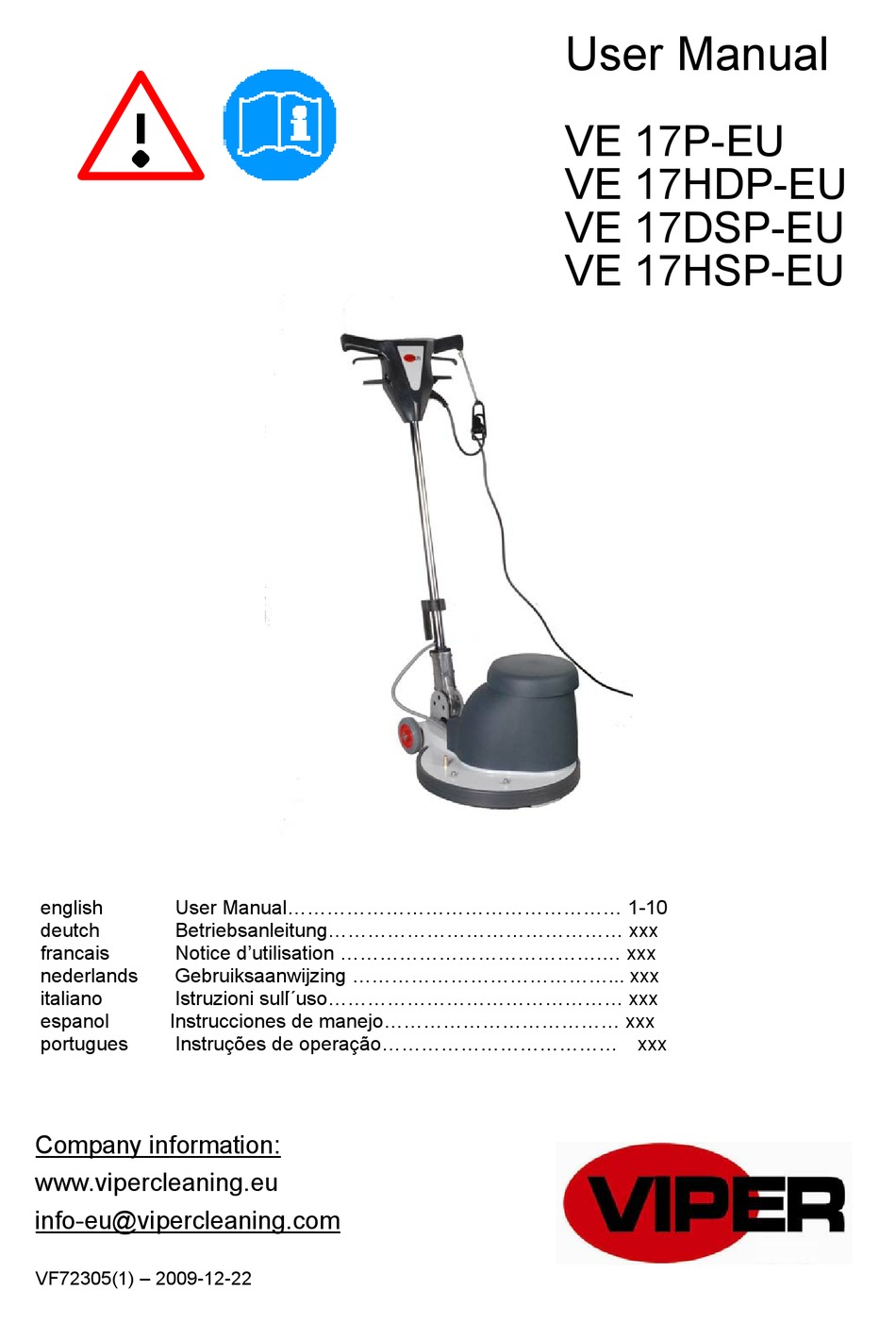

User Manual
VE 17P-EU
VE 17HDP-EU
VE 17DSP-EU
VE 17HSP-EU
Advertisement
Table of Contents
Related Manuals for Viper VE 17DSP-EU
Summary of Contents for Viper VE 17DSP-EU
- Page 1 Notice d’utilisation ………………………………….… xxx nederlands Gebruiksaanwijzing …………………………………... xxx italiano Istruzioni sull ´ uso……………………………………… xxx espanol Instrucciones de manejo……………………………… xxx portugues Instruções de operação……………………………… xxx Company information: www.vipercleaning.eu info-eu@vipercleaning.com VF72305(1) – 2009-12-22 User Manual VE 17P-EU VE 17HDP-EU VE 17DSP-EU VE 17HSP-EU...
-
Page 2: Table Of Contents
INTRODUCTION ... 2 MANUAL PURPOSE AND CONTENTS ... 2 TARGET... 2 HOW TO KEEP THIS MANUAL... 2 DECLARATION OF CONFORMITY ... 2 OTHER REFERENCE MANUALS... 2 SPARE PARTS AND MAINTENANCE... 2 CHANGES AND IMPROVEMENTS ... 3 OPERATION CAPABILITIES ... 3 CONVENTIONS ... -
Page 3: Introduction
TARGET This Manual is intended for operators and technicians qualified to perform the machine maintenance. The operators must not perform procedures reserved for qualified technicians. VIPER will not be answerable for damages coming from the non-observance of this prohibition. HOW TO KEEP THIS MANUAL The User Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that can cause damage to it. -
Page 4: Changes And Improvements
CHANGES AND IMPROVEMENTS VIPER constantly improves its products and reserves the right to make changes and improvements at its discretion without being obliged to apply such benefits to the machines that were previously sold. Any change and/or addition of accessories must be approved and performed by VIPER. -
Page 5: General Instructions
– To avoid any risk, if the power supply cable is damaged, contact VIPER Service Center or a qualified technician. – Do not pull or carry the machine by the power supply cable and never use the power supply cable as a handle. Do not close a door on the power supply cable, or pull the power supply cable around sharp edges or corners. - Page 6 VIPER Service Center or a qualified technician. – If parts must be replaced, require ORIGINAL spare parts from an authorized VIPER Dealer or Retailer. – To ensure machine proper and safe operation, the scheduled maintenance shown in the relevant chapter of this manual must be performed by the authorized personnel or by an authorized VIPER Service Center.
-
Page 7: Machine Description
ENGLISH USER MANUAL MACHINE DESCRIPTION MACHINE STRUCTURE 1. Guide Handle 2. Switch Lever, Right 3. Adjustment Lever 4. Shaft 5. Cord Wrap 6. Switch Plug (VE17P-EU、VE17HDP- EU、VE17HSP-EU), Switch(H/L speed) (VE17DSP-EU) 7. Wheel 8. Barb Hose 9. Bumper VE17P-EU VE17HDP-EU VE17DSP-EU VE17HSP-EU 10. -
Page 8: Technical Data
TECHNICAL DATA Model Voltage Power Current Frequency Brush Speed Brush Diameter Dimension LXWXH 53.6x43.2x121.9 cm 53.6x 43.2x121.9cm 53.6 x43.2x121.9 cm 53.6x43.2x121.9 cm Weight Length of Power cord VF72309 (1)2009-12 VE17P-EU VE17HDP-EU 220 – 240 V 220 – 240 V 750 W 1120 W 4.6 A 50-60 Hz... -
Page 9: Wiring Diagram
ENGLISH USER MANUAL WIRING DIAGRAM FOR WIRING DIAGRAM FOR VE17P-EU VE17HDP-EU VE17DSP-EU VE17HSP-EU VE17P-EU VE17HDP-EU VE17HSP-EU VE17DSP-EU Motor Motor VF72309 (1)2009-12 ENGLISH... -
Page 10: Before Starting The Polisher
BEFORE STARTING THE MACHINE ASSEMBLY For transport reasons the motor head and shaft are supplied not assembled. TRANSPORT OPERATION OF THE MACHINE BASIC OPERATION VF72309 (1)2009-12 1] Insert the gear index housing (1) into the “U” shape bracket (2). 2] Align the holes of the gear index housing and the “U” shape bracket. 3]Insert the socket screws into the holes of the “U”... -
Page 11: Maintenance
ENGLISH USER MANUAL MAINTENANCE To keep the machine performing well for many years, please follow the following maintenance procedures. * Always confirm that the machine is unplugged prior to performing any maintenance or repairs. *Never store a low speed machine with the pad driver or brush mounted to the machine. 1] Clean the outside of the machine with a mild cleaner.
