Download this manual See also: Programming Manual

9,67$3

6 HFXULW\ 6 \VWHP

VHU

XLGH

K0736V1 10/02

Need help?

Do you have a question about the Vista-10P and is the answer not in the manual?

Questions and answers

Summary of Contents for ADEMCO Vista-10P

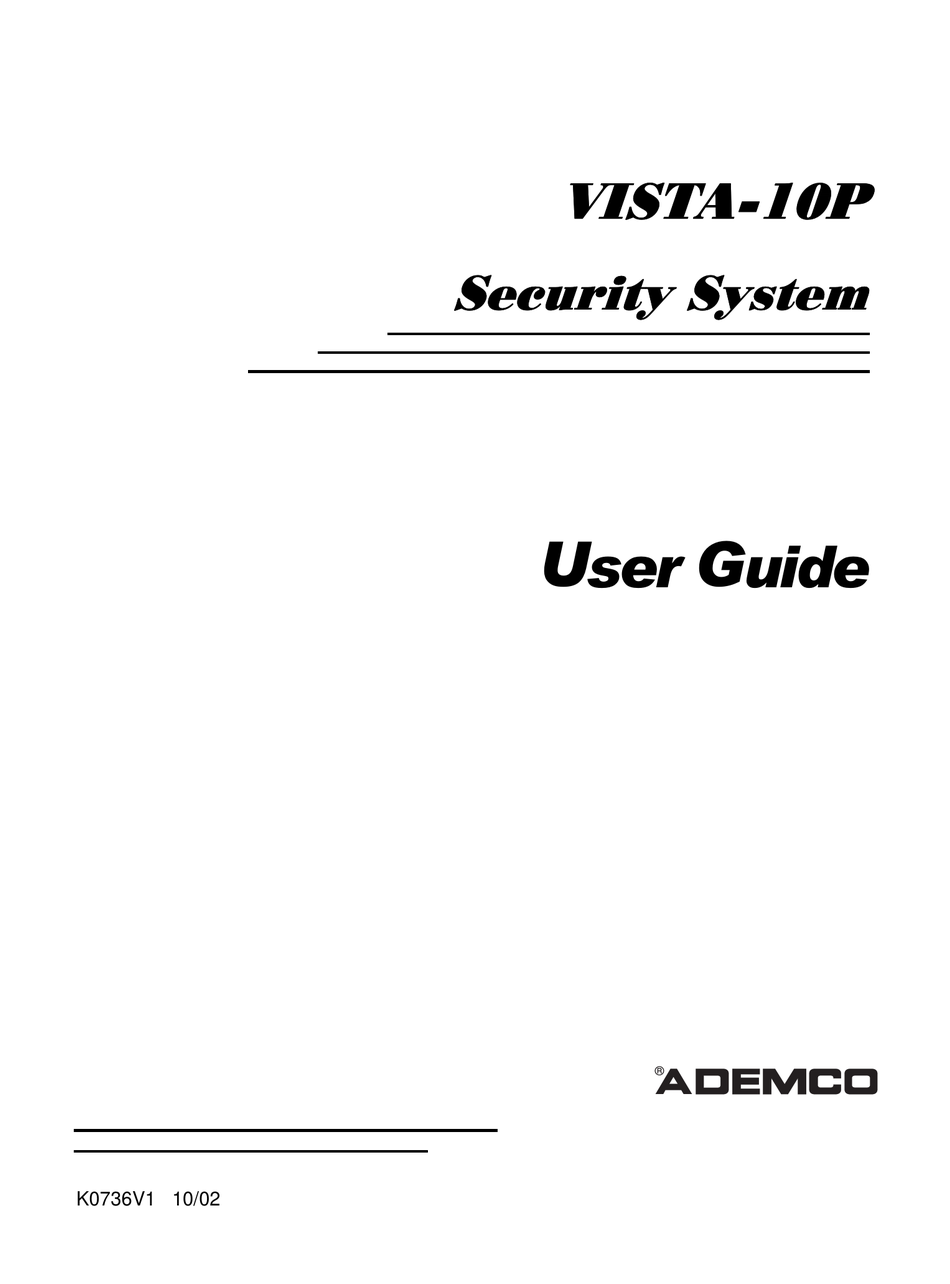

Page 1 9,67$3 6 HFXULW\ 6 \VWHP VHU XLGH ® K0736V1 10/02...
Page 2 IMPORTANT! PROPER INTRUSION PROTECTION For proper intrusion coverage, sensors should be located at every possible point of entry to a home or commercial premises. This would include any skylights that may be present, and the upper windows in a multi-level building. In addition, we recommend that radio backup be used in a security system so that alarm signals can still be sent to the Central Monitoring Station in the event that the telephone lines are out of order (alarm signals are normally sent over...
Page 3 7DEOHRI&RQWHQWV System Overview ........................5 Introduction .......................... 5 System Basics ........................5 Using the Voice Message Center ..................7 About The Keypads ........................ 8 General Information......................8 Functions of the Keypads....................10 Entry/Exit Delays ......................... 12 Exit Delay..........................12 Entry Delay ......................... 12 Exit Alarms .........................
Page 4 7DEOHRI&RQWHQWV Panic Keys..........................24 Using Panic Keys........................ 24 Macro Key Programming & Usage................... 25 About Macro Keys....................... 25 Example of Macro Programming ..................26 Using a Programmed Macro Key..................26 Using Device Commands ....................27 About Device Commands ....................27 Paging Feature ........................
Page 5 6\VWHP2YHUYLHZ ,QWURGXFWLRQ Congratulations on your ownership of the VISTA-10P Security System. You've made a wise decision in choosing it, for it represents the latest in security protection technology today. This system provides: • Three forms of protection: burglary, fire* and emergency •...
Page 6 6\VWHP2YHUYLHZ &RQWLQXHG Zones • The system sensing devices have been assigned to various “zones,” which are specific areas of protection (e.g., front door, kitchen window, etc.). • Zone numbers are displayed at the keypad when an alarm or trouble condition occurs on a sensor.
Page 7 6\VWHP2YHUYLHZ &RQWLQXHG Paging Feature • If programmed, the system can automatically send certain system condition messages to a pager. • The display consists of code numbers that indicate the type of condition that has occurred. Function Keys • The “A”, “B”, “C”, and “D” keys on the keypad can be programmed to perform various functions.

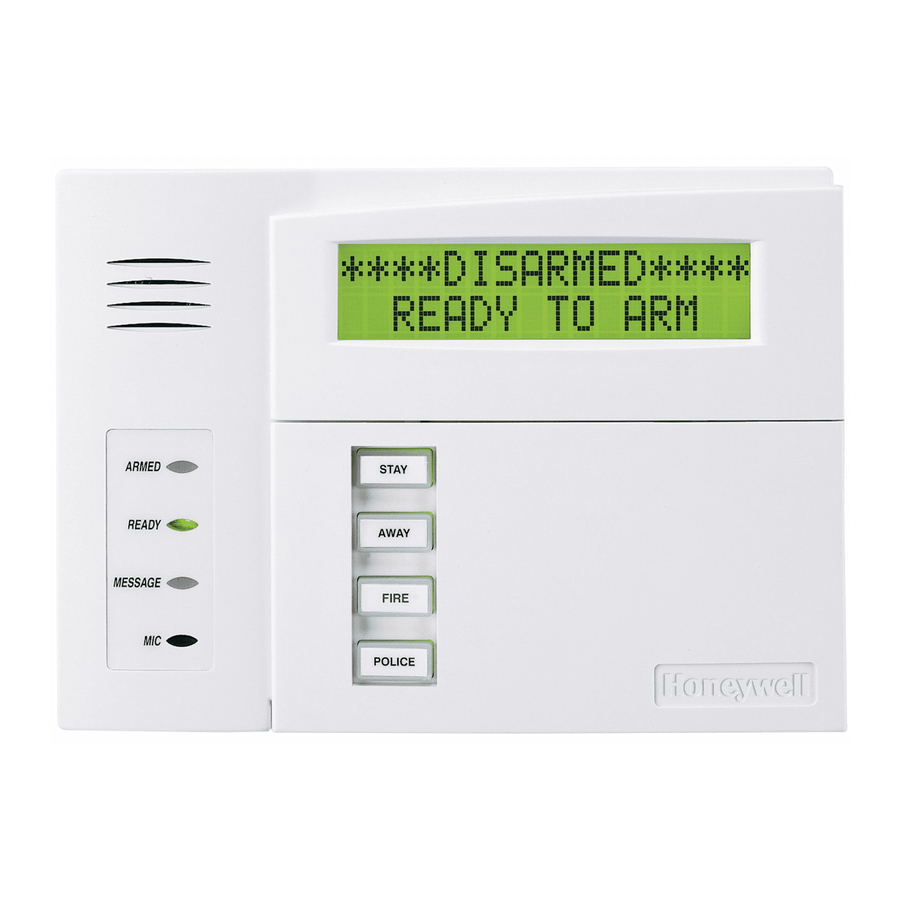

Page 8 $ERXW7KH.H\SDGV *HQHUDO,QIRUPDWLRQ Your keypads allow you to control all system functions. The keypads feature the following: • A telephone style (digital) keypad • Liquid Crystal Display (LCD) which shows the nature and location of all occurrences • Built-in sounder which will sound during alarms and troubles. The sounder also "beeps"...
Page 9 $ERXW7KH.H\SDGV&RQWLQXHG )L[HG:RUG'LVSOD\.H\SDG All burglary zones, interior and AWAY: AWAY NIGHT NO AC perimeter, are armed. PHONE TEST BYPASS NOT READY Perimeter burglary zones, such as STAY: STAY ALARM CHIME BAT protected windows and doors, are FIRE CHECK INSTANT CANCELED armed. 6150disp FIXED-WORD DISPLAY (6150 shown) Entry delay is turned off:...
Page 10 )XQFWLRQVRIWKH.H\SDGV NOTE: The functions printed directly on the 6 BYPASS Removes individual protection zones from keys indicate their primary purpose; the being monitored by the system. functions printed under some of the keys [ ↓ ] On Voice keypads, used in conjunction with the (shown in brackets under the respective key), FUNCTION and VOLUME keys to lower the message indicate their alternate or secondary purpose.
Page 11 )XQFWLRQVRIWKH.H\SDGV&RQWLQXHG SPEAKER DISPLAY ARMED AWAY STAY RECORD VOLUME PLAY LEDs READY TEST BYPASS MESSAGE CODE CHIME INSTANT READY STATUS VOICE FUNCTION MICROPHONE FUNCTION KEYS Voice-capable 2-line Alpha keypad (shown with flip-down front door removed) IMPORTANT! • When entering codes and commands, sequential key depressions must be made within 4-5 seconds of one another.
Page 12 (QWU\([LW'HOD\V Your system has preset time delays, known as exit delay and entry delay. ([LW'HOD\ Exit delay gives you time to leave through the designated exit door without setting off an alarm. Exit delay begins immediately after arming your system in any arming mode and Alpha Display keypads display the message “You May Exit Now.”...
Page 13 (QWU\([LW'HOD\V &RQWLQXHG ([LW$ODUPV Whenever you arm the system, the exit delay begins. If an entry/exit door or interior zone is faulted when the exit delay ends (e.g., exit door left open), the system sounds an alarm and starts the entry delay timer. If you disarm the system before the entry delay ends, the alarm sound stops and the message "CANCELED ALARM"...
Page 14 &KHFNLQJ)RU2SHQ=RQHV 8VLQJWKH>∗@.H\ efore arming your system, all protected doors, windows and other protection zones must be closed or bypassed, otherwise the keypad will display a "Not Ready" message. 1. Press [∗] READY (do not enter code first) to display Alpha Display: faulted zones.
Page 15 $UPLQJWKH6\VWHP 6WD\0RGH$UPV3HULPHWHU2QO\(QWU\'HOD\2Q • Used when you want to arm the system with persons staying inside (or if you have pets that are moving throughout the premises). • The perimeter sensors are armed, but interior sensors are left disarmed. • Exit delay begins (you can leave through the entry/exit door, if desired). •...
Page 16 $UPLQJWKH6\VWHP $UPLQJ&RPPDQGV Before arming, close all perimeter doors and windows and make sure the Ready to Arm message is displayed. Modes of Arming Mode Press these keys… Keypad Confirms By… • three beeps Stay security code + [3] (STAY) • armed STAY message displayed •...
Page 17 $UPLQJWKH6\VWHP 6LQJOH%XWWRQ$UPLQJ The “A”, “B”, “C”, and/or “D” keys on your keypad may have been programmed for single-button arming. Note that while it will not be necessary to use a security code for arming, a security code must always be used to disarm the system. If Single-Button Arming is programmed: •...
Page 18 8VLQJWKH.H\VZLWFK 8VLQJWKH.H\VZLWFK Your system may be equipped with a keyswitch for use when arming and disarming. Red and green lights on the keyswitch plate indicate the status of your system as follows: Green Light: Lights when the system is disarmed and ready to be armed (no open zones).
Page 19 'LVDUPLQJDQG6LOHQFLQJ$ODUPV 8VLQJWKH>2))@NH\ The OFF key is used to disarm the system, silence alarm and trouble sounds, and clear alarm memories. IMPORTANT: If you return and the main burglary sounder is on, DO NOT ENTER, but CONTACT THE POLICE from a nearby safe location. If you return after an alarm has occurred and the main sounder has shut itself off, the keypad will beep rapidly upon your entering, indicating that an alarm has occurred during your absence.
Page 20 %\SDVVLQJ3URWHFWLRQ=RQHV 8VLQJWKH%<3$66.H\ Use t his key when you want to arm your system with one or more zones intentionally unprotected. Vent Zones: Your system may have certain windows set as “vent” zones, which are automatically bypassed if left open when arming the system (you do not need to manually bypass them).
Page 21 %\SDVVLQJ3URWHFWLRQ=RQHV 4XLFN%\SDVV If programmed, "Quick Bypass" allows you to easily bypass all open (faulted) zones without having to enter zone numbers individually. This feature is useful if, for example, you routinely leave certain windows open when arming at night. Alpha Display: + 6 + [#] (-7%61)( 46)77 (Security Code)
Page 22 &KLPH0RGH CHIME mode alerts you to the opening of a perimeter door or window while the system is disarmed. When Chime mode is activated: • Three tones sound at the keypad whenever a perimeter door or window is opened. • Interior zones do not produce a tone when they are faulted. •...
Page 23 'DWHDQG7LPH 9LHZLQJWKH&XUUHQW'DWHDQG7LPH The system lets you view its time and date setting on alpha keypad. Alpha Display: +[#] + [6] [3] (-7%61)( (Security Code) 6)%(= 83 %61 OR, press the function key (A, B, C, or D) for viewing current date and time, if programmed. A typical time/date display is shown.
Page 24 3DQLF.H\V 8VLQJ3DQLF.H\V Your system may have been programmed to use special keys to manually activate emergency (panic) functions as follows: This Function Sends this signal* With This Sounding… Silent Alarm silent alarm no audible alarm and no change in normal display to indicate that a silent alarm has been initiated.
Page 25 0DFUR.H\3URJUDPPLQJ 8VDJH $ERXW0DFUR.H\V The “A”, “B”, “C” or “D” keys can be used to automatically activate a series of commands of up to 16 keystrokes, if programmed for this function. These keystrokes, as a group, are called “macros” and are stored in the system's memory. •...
Page 26 0DFUR.H\3URJUDPPLQJ 8VDJH FRQW Typical Macro Alpha Display: The keypad beeps to acknowledge your input and displays the command you entered (followed by “F”). 1%'63 4+1 4. Enter the next command, followed by press/holding * * * the “D”...
Page 27 8VLQJ'HYLFH&RPPDQGV $ERXW'HYLFH&RPPDQGV Your system may be set up so that it can control certain lights or other devices. • Some devices may be automatically turned on or off by the system. • You may be able to override automatically controlled devices using the commands described below.
Page 28 3DJLQJ)HDWXUH $ERXW$XWRPDWLF3DJLQJ Your system may be set up to automatically send alert messages to a pager as certain conditions occur in your system. • The following events can be programmed by your installer to be sent to the pagers: arming and disarming †...
Page 29 3DJLQJ)HDWXUH 0DQXDO3DJLQJ Your system may be set up so you can manually send a message to a pager. • Your installer programs the paging function key and the pager phone number. • Pressing the paging keys sends the message to the pager. 9 9 9 –...
Page 30 6HFXULW\&RGHV $XWKRULW\/HYHOV $ERXW6HFXULW\&RGHV Your installer assigned a master code that is used to perform all system functions. In addition, you can assign up to 15 different security codes for use by other users. • Only the System Master can assign user codes to users. •...
Page 31 6HFXULW\&RGHV $XWKRULW\/HYHOV &RQW +RZWR$VVLJQ8VHU&RGHVDQG$WWULEXWHV The following lists the various command strings for adding user codes and attributes. Refer to the User Setup chart at the back of this manual for factory assignments of user attributes and to keep a record of user programming. Add User Code: System Master code + [8] + user no.
Page 32 6FKHGXOLQJ $ERXW6FKHGXOLQJ The system provides one end-user schedule (programmable by master/installer only), which can control various types of events. • The schedule causes a defined event to start and stop (when appropriate) at a specified time. • The schedule can be set to automatically repeat at various intervals. •...
Page 33 6FKHGXOLQJFRQWLQXHG 5. For event number “02,” enter the access group +6394 291&)6 number. Otherwise, this prompt is skipped. < Press [∗] to continue to the “Start” prompt below. 7. Enter the event’s start time and days of week. 78%68 718;8*7 Hour = 00-12;...
Page 34 (YHQW/RJJLQJ3URFHGXUHV $ERXW(YHQW/RJJLQJ The system records various events in a history log, which can be viewed by the master user using an Alpha Display keypad. • The Event Log holds up to 32 events. • Events are displayed in chronological order, from most recent to oldest. •...
Page 35 (YHQW/RJJLQJ3URFHGXUHVFRQWLQXHG 7DEOHRI(YHQW/RJ&RGHV The following table lists the codes that may appear when viewing the Event Log. If the event code is preceded by an “E” (as in the example display on the previous page), it means that the event is new and ongoing; if preceded by an “R,” it means the event has been restored.
Page 36 7HVWLQJWKH6\VWHP 7R%H&RQGXFWHG:HHNO\ $ERXW7HVWLQJWKH6\VWHP Using Test mode allows each protection point to be checked for proper operation. • The keypad sounds a single beep every 40 seconds as a reminder that the system is in the Test mode. • Alarm messages are not sent to your Central Station while Test mode is on. 1.
Page 37 7URXEOH&RQGLWLRQV "Check" and he word CHECK on the keypad's display, accompanied by a "Battery" Displays "beeping" at the keypad, indicates a trouble condition in the system. To silence the beeping for these conditions, press any key. 1. A display of "CHECK" and one or more zone numbers indicates that a problem exists with the displayed zone(s) and requires your attention.
Page 38 7URXEOH&RQGLWLRQV&RQWLQXHG Words or letters in parentheses ( ) are those that are displayed on Alpha Display keypads. Other Trouble COMM. FAILURE Indicates that a failure has occurred in (or FC) the telephone communication portion of Displays your system. CALL FOR SERVICE. Any “beeping”...
Page 39 7URXEOH&RQGLWLRQV&RQWLQXHG The system is operating on battery power Other Trouble AC LOSS (or NO AC) Displays only due to an AC power failure. (Continued) If only some lights are out on the premises, check circuit breakers and fuses and reset or replace as necessary. If AC power cannot be restored and a “low system battery”...
Page 40 0DLQWDLQLQJ<RXU6\VWHP Taking Care of The components of your security system are designed to be as Your System maintenance-free as possible. However, to make sure that your system is in reliable working condition, do the following: 1. Test your system weekly . 2.
Page 41 )LUH$ODUP6\VWHP,I,QVWDOOHG THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS General Your fire alarm system (if installed) is on 24 hours a day, for continuous protection. In the event of an emergency, the strategically located smoke and heat detectors will sound their alarms and automatically send signals to your system, triggering a loud, interrupted pulsed sound* from the Keypad(s) and any external sounders.
Page 42 )LUH$ODUP6\VWHP&RQWLQXHG THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS Manually 1. Should you become aware of a fire emergency before your smoke or heat detectors sense the problem, go to your nearest keypad and Initiating manually initiate an alarm by pressing the panic key assigned for a Fire Alarm FIRE emergency for 2 seconds.
Page 43 )LUH$ODUP6\VWHP&RQWLQXHG THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS 1DWLRQDO)LUH3URWHFWLRQ$VVRFLDWLRQ 5HFRPPHQGDWLRQVRQ6PRNH'HWHFWRUV With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's National Fire Alarm Code (NFPA 72) noted below. Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: A smoke detector installed outside of each separate sleeping area, in the...
Page 44 )LUH$ODUP6\VWHP&RQWLQXHG THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS (PHUJHQF\(YDFXDWLRQ Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association: 1. Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants.
Page 45 4XLFN*XLGHWR%DVLF6\VWHP)XQFWLRQV FUNCTION PROCEDURE COMMENTS Check Zones Press READY key. View faulted zones when system not ready. Arm System Enter code. Press arming key desired: Arms system in mode selected. (AWAY, STAY, NIGHT-STAY, MAXIMUM, INSTANT) Quick Arm Press #. Press arming key desired: Arms system in mode selected, quickly (if programmed) (AWAY, STAY, MAXIMUM, INSTANT)
Page 46 6XPPDU\RI$XGLEOH9LVXDO1RWLILFDWLRQV )L[HG:RUG'LVSOD\.H\SDGV SOUND CAUSE DISPLAY LOUD, FIRE ALARM FIRE is displayed; zone number of zone in INTERRUPTED * alarm is displayed. If a fire alarm is manually activated, zone number 95 will be displayed. Keypad & Ext. LOUD, BURGLARY/AUDIBLE ALARM is displayed. Zone number of zone in CONTINUOUS * alarm is also displayed.
Page 47 6XPPDU\RI$XGLEOH9LVXDO1RWLILFDWLRQV $OSKD'LVSOD\.H\SDGV SOUND CAUSE DISPLAY LOUD, FIRE ALARM. FIRE is displayed; descriptor of zone in alarm is INTERRUPTED* displayed. If a fire alarm is manually activated, zone Keypad & Ext. number 95 will be displayed. LOUD, BURGLARY/AUDIBLE ALARM is displayed. If programmed, descriptor of CONTINUOUS* EMERGENCY ALARM.
Page 48 5HJXODWRU\6WDWHPHQWVDQG:DUQLQJV NOTE: This is a “Grade A” Residential System RADIO FREQUENCY EMISSIONS Federal Communications Commission (FCC) Part 15 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 49 &KDUWVRI<RXU6\VWHP·V)HDWXUHV SERVICING INFORMATION Your local authorized service representative is the person best qualified to service your alarm system. Arranging some kind of regular service program with him is advisable. Your local service representative is: Name: Address: Phone: General Features Features Comments Exit Delay Entry Delay 1...
Page 50: User Setup
&KDUWVRI<RXU6\VWHP·V)HDWXUHV User Setup The following chart will help keep track of system users. To program a user attribute: Enter system master code + [8] + user no. + “#” command listed in column heading… User User Security Auth. Access RF Zone Pager Name Code...
Page 51 OWNER’S INSURANCE PREMIUM CREDIT REQUEST This form should be completed and forwarded to your homeowner’s insurance carrier for possible premium credit. A. GENERAL INFORMATION: Insured’s Name and Address: Insurance Company: Policy No.: VISTA-10P Other ______________________________ Type of Alarm: Burglary Fire Both Installed by:...
Page 52 OWNER’S INSURANCE PREMIUM CREDIT REQUEST (cont.) E. SMOKE DETECTOR LOCATIONS Furnace Room Kitchen Bedrooms Attic Basement Living Room Dining Room Hall F. BURGLARY DETECTING DEVICE LOCATIONS: Front Door Basement Door Rear Door All Exterior Doors Floor Windows All windows nterior locations All Accessible Openings, Including Skylights, Air Conditioners and Vents G.
Page 53 /,0,7$7,2162)7+,66<67(0 WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons.
Page 54 ²1RWHV²...
Page 55 ²1RWHV²...
Page 56 ADEMCO ONE YEAR LIMITED WARRANTY Alarm Device Manufacturing Company, a Division of Pittway Corporation, and its divisions, subsidiaries and affiliates ("Seller"), 165 Eileen Way, Syosset, New York 11791, warrants its security equipment (the "product") to be free from defects in materials and workmanship for one year from date of original purchase, under normal use and service.
