Worx HandyCut WX424 Safety And Operating Manual

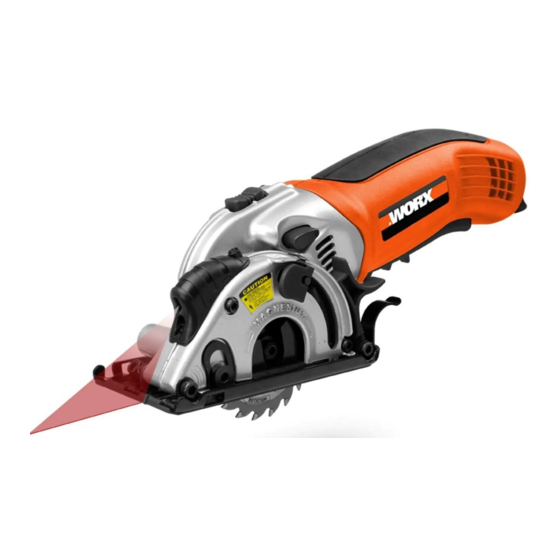

Mini multi-function saw
Hide thumbs Also See for HandyCut WX424:
Table of Contents

Advertisement

Quick Links

SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUcTIONS
Mini multi-function saw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HandyCut WX424 and is the answer not in the manual?

Questions and answers

Related Manuals for Worx HandyCut WX424

Summary of Contents for Worx HandyCut WX424

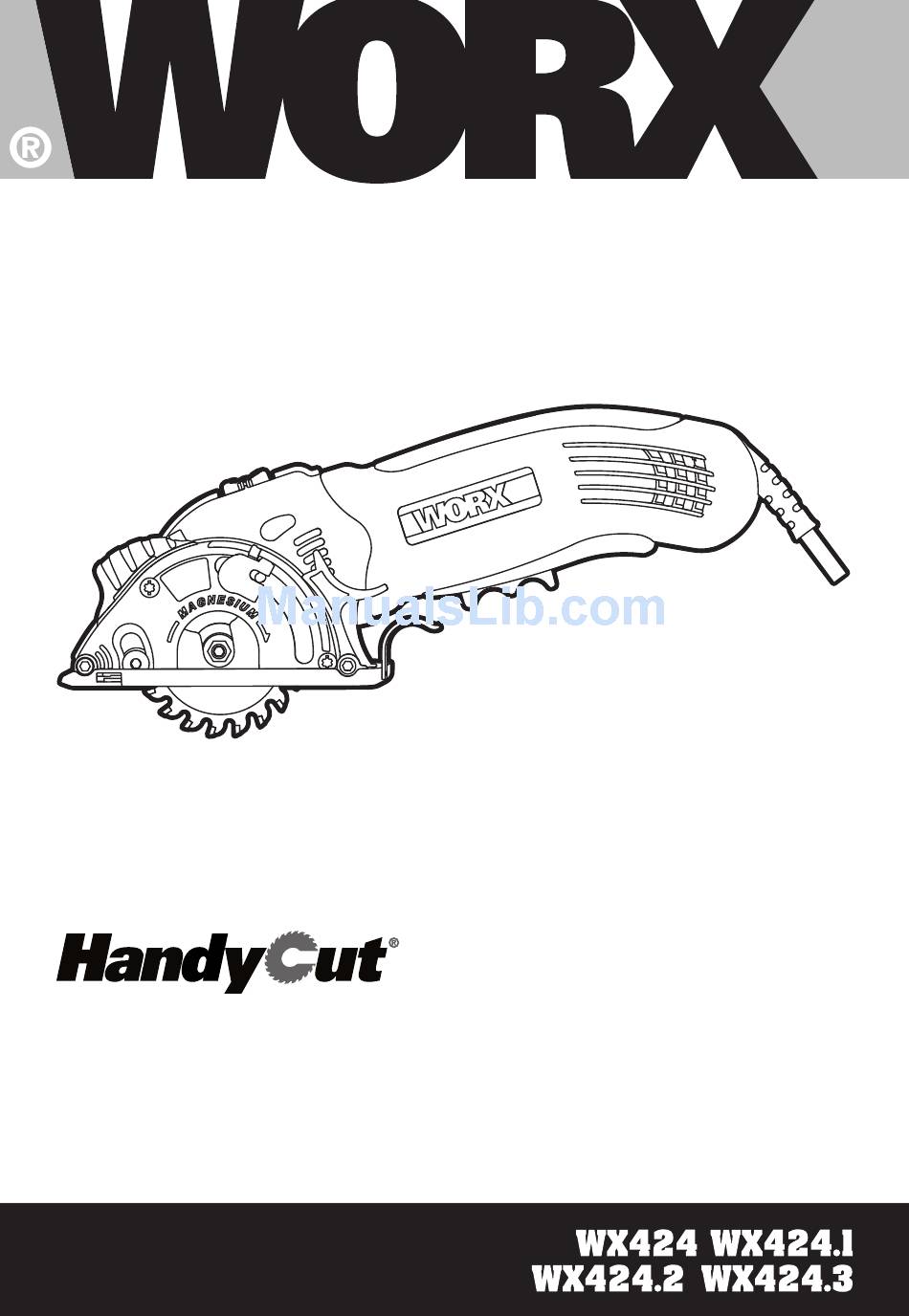

  • Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUcTIONS Mini multi-function saw...

  • Page 2: General Power Tool Safety Warnings

    GENERAL POWER TOOL suitable for outdoor use reduces the risk of electric shock. SAFETY WARNINGS 6) If operating a power tool in a damp location is unavoidable, use a residual WARNING: Read all safety warnings current device (RCD) protected and all instructions. Failure to follow supply.
  • Page 3 SAFETY WARNINGS FOR 4. POWER TOOL USE AND CARE 1) Do not force the power tool. Use ALL SAWS the correct power tool for your application. The correct power tool will DANGER: Keep hands away from do the job better and safer at the rate for cutting area and the blade.
  • Page 4 uncontrolled saw to lift up and out of the f) blade depth and bevel adjusting workpiece toward the operator; locking levers must be tight and - when the blade is pinched or bound tightly secure before making cut. If blade by the kerf closing down, the blade stalls adjustment shifts while cutting, it may and the motor reaction drives the unit...

  • Page 5: General Safety

    3. Do not use any abrasive wheels. ADDITIONAL SAFETY WARNING FOR 4. Use only blade diameter(s) in accordance CLASS 2 LASER with the markings. The laser device fitted to this tool is class 2 with a maximum radiation of 3mW and 650nm wavelength. GENERAL SAFETY CLASS 2 LASER RADIATION, DO NOT STARE INTO bEAM...
  • Page 6 SYMBOLS To reduce the risk of injury, user must read instruction manual. Warning Double insulation Wear eye protection Wear ear protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
  • Page 7 Mini multi-function saw...
  • Page 8 SOFT GRIP HANDLE MOTOR HOUSING SAFETY RELEASE TRIGGER AND PADDLE SWITCH DEPTH OF CUT SCALE GUARD RELEASE LEVER GUARD FINGER LIFT bRACKET DUST EXTRACTION TUbE (See Fig. Q) LOWER bLADE GUARD UPPER bLADE GUARD 10. LENGTH OF CUT INDICATOR SCALE 11.

  • Page 9: Technical Data

    TEchNIcAL DATA WX424 WX424.1 WX424.2 WX424.3 (4- designation of machinery, Type representative of Saw) Voltage 230-240V~50Hz Power input 310W No load speed 2800/min Blade diameter 76x10mm Cutting capacity 22mm Protection class Machine weight 1.5kg NOISE AND VIBRATION DATA A weighted sound pressure : 82dB(A) 3.0dB(A) A weighted sound power...
  • Page 10 WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

  • Page 11: Intended Use

    OPERATION INSTRUcTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE: The machine is intended for lengthways and crossways cutting of wood with straight cutting lines, alumunium, PVC pipe and tile, etc., while resting firmly on the work piece.
  • Page 12 counterclockwise direction. DEPTH WIDTH j. Use the two hex keys to tighten the spindle clamping screw thoroughly. k. Place the two hex keys back in the case. NOTE: Never use a blade that is too thick to allow the blade clamping washer to engage with the flat side of the spindle.
  • Page 13 various applications and added gripping comfort with maximum control. Grasp the handle with one hand and push the handle adjustment button “IN” to release the handle for adjustment. Move the handle forward or backward (See Fig. F) to locate the 3 different positions. When the handle moves into 1 of the 3 positions the adjustment button will snap out and the handle will lock into position.
  • Page 14 6. STARTING A CUT (See Fig. J, K, L1, L2) a) Set-up and clamp your work piece and mark your Line of Cut cut line. b) Set the handle on the saw to the desired angle for your cutting application. c) Set the depth of cut (with corresponding length of cut).
  • Page 15 7. MAKING CROSS CUTS AND RIP CUTS (See Fig. M1, M2) a) Always use your saw with your hands positioned correctly (See Fig. M1, M2). WARNING: Always maintain proper control of the saw to make sawing safer and easier. Loss of control of the saw could cause an accident resulting in possible serious injury.
  • Page 16 9. INSTALLING AND USING THE PARALLEL GUIDE (See Fig. N1, N2, N3) Your saw comes with a parallel guide that is 7-inches long on the guide edge. It allows you to make accurate parallel cuts when trimming a work piece. It attaches to the saw’s base.
  • Page 17 10. PLUNGE OR POCKET CUTTING (See Fig. Oa, Ob, Oc) Cutting into a solid base surface One of the major benefits of this saw is its ability to make plunge cuts directly into the middle, or interior of a work piece, or plunge cut directly into a solid base surface such as sub-flooring, siding, paneling and hardwood or laminate flooring that is mounted on top of sub-flooring.
  • Page 18 11. SAWDUST REMOVAL (See Fig. Q) Your saw includes a hose adaptertube that attaches to the built-in dust extraction port (7) on the saw (See Fig. Q). This adapter tube can be attached to a wet/dry vacuum cleaner (sold separately). This will help remove dust, chips and cutting debris away from the cutting area.

  • Page 19: Working Hints For Your Tool

    WORKING hINTS FOR YOUR PLUG REPLAcEMENT TOOL (UK & IRELAND ONLY) If your power tool becomes too hot, please If you need to replace the fitted plug then run your circular saw no load for 2-3 minutes followthe instructions below. to cool the motor.

  • Page 20: Declaration Of Conformity

    Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description WORX Mini multi-function saw Type WX424 WX424.1 WX424.2 WX424.3 (4-designation of machinery, representative of saw) Function Cutting various materials with a rotating toothed blade...
  • Page 24 Copyright © 2013, Positec. All Rights Reserved. 2PSC09CPK11001A4...

This manual is also suitable for:

Handycut wx424.2Handycut wx424.1Handycut wx424.3
