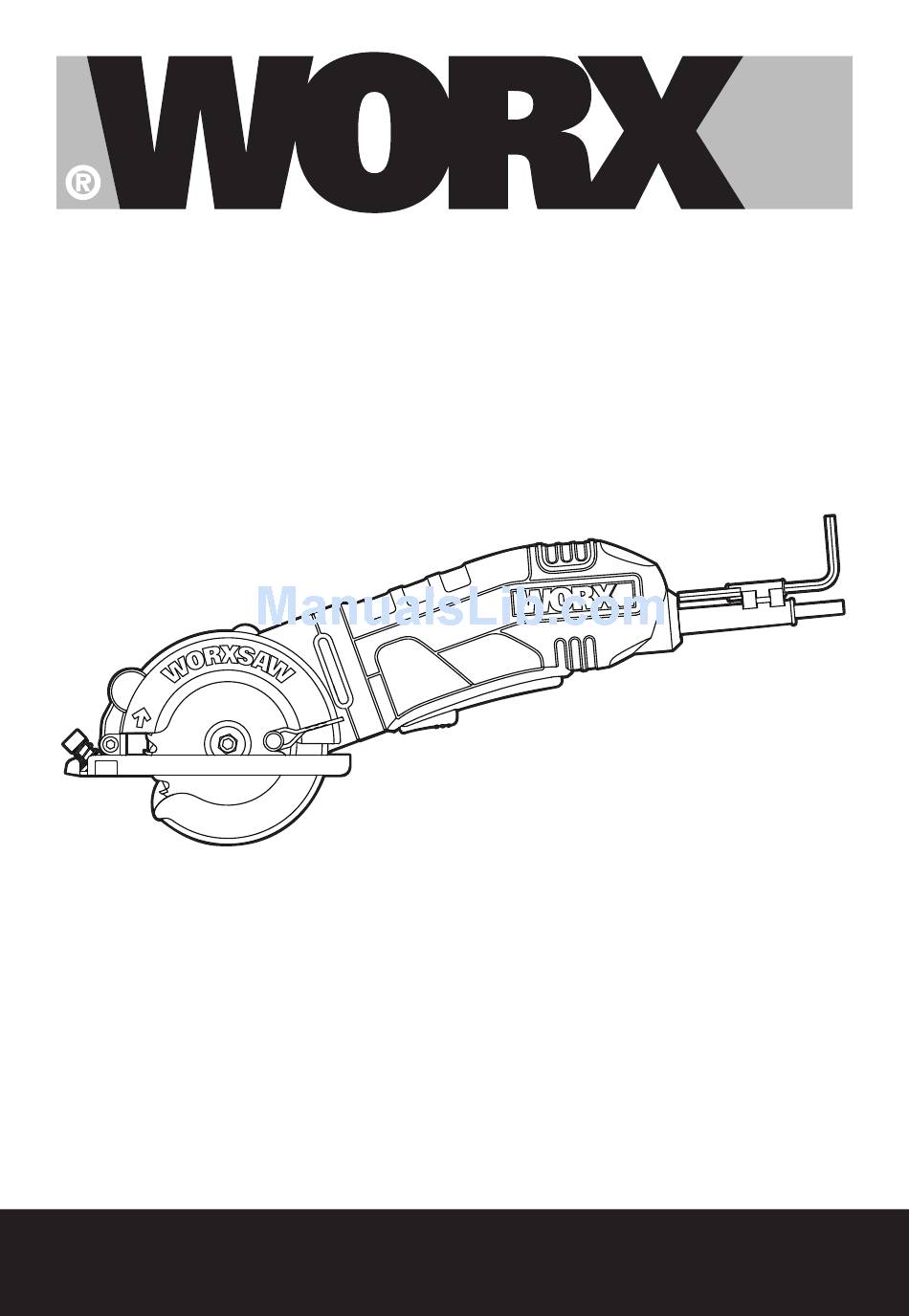

SAFETY AND OPERATING MANUAL
Electric Circular Saw
WX423

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WX423 and is the answer not in the manual?

Questions and answers

Related Manuals for Worx WX423

Summary of Contents for Worx WX423

  • Page 1 SAFETY AND OPERATING MANUAL Electric Circular Saw WX423...
  • Page 7 13. SAW BLADE (See Fig. A) 14. BLADE BOLT (See Fig. A) 15. PARALLEL GUIDE 16. PARALLEL GUIDE CLAMPING FIXTURE 17. OUTER FLANGE (See Fig. A) Not all the accessories illustrated or described are included in standard delivery. Electric Circular Saw WX423...

  • Page 8: Technical Data

    TECHNICAL DATA Type WX423 (4-designation of machinery, representative of Saw) Voltage 230-240V~50Hz Rated power 400W No load (rated) speed 3600/min Blade size TCT blade 85mm x 15mm x 1.2mm x 24T HSS blade 85mm x 15mm x 1.2mm x 44T Diamond disc 85mm x 15mm x 1.2mm x 60G...

  • Page 9: General Power Tool Safety Warnings

    Use e) When operating a power tool of these devices can reduce dust-related outdoors, use an extension cord hazards. suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of Electric Circular Saw WX423...

  • Page 10: Further Safety Instructions For All Saws

    This will workpiece toward the operator. ensure that the safety of the power tool is - When the blade is pinched or bound tightly maintained. Electric Circular Saw WX423...

  • Page 11: Safety Instructions For Saws With Inner Pendulum Guard

    1. Only use saw blades recommended in the g) Use extra caution when making a specification. “plunge cut” into existing walls or 2. Do not use any abrasive wheels. Electric Circular Saw WX423...
  • Page 12 HSS blade Wear protective gloves TCT blade Wood Aluminium ABN: Australian Business Number, according to which business details such as business name and address can be found at website http://abr.business.gov.au Electric Circular Saw WX423...

  • Page 13: Intended Use

    Sawing performance and cutting quality depend essentially on the condition and the tooth count of the saw blade. Therefore, use only sharp saw blades that are suited for the material being cut. Choice of blades: 24 teeth for general work, Electric Circular Saw WX423...

  • Page 14: Troubleshooting

    Saw is not being guided mounted. properly. Use a parallel guide. Allow the saw blade to reach full Blade kicks back when Blade is not spinning fast speed prior to beginning a cut in beginning a cut. enough. the material. Electric Circular Saw WX423...
  • Page 16 Copyright © 2014, Positec. All Rights Reserved. 2PSC16APK11002A1...
