SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS
Mini multi-function saw
WX424

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WX424 HandyCut and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worx WX424 HandyCut

Summary of Contents for Worx WX424 HandyCut

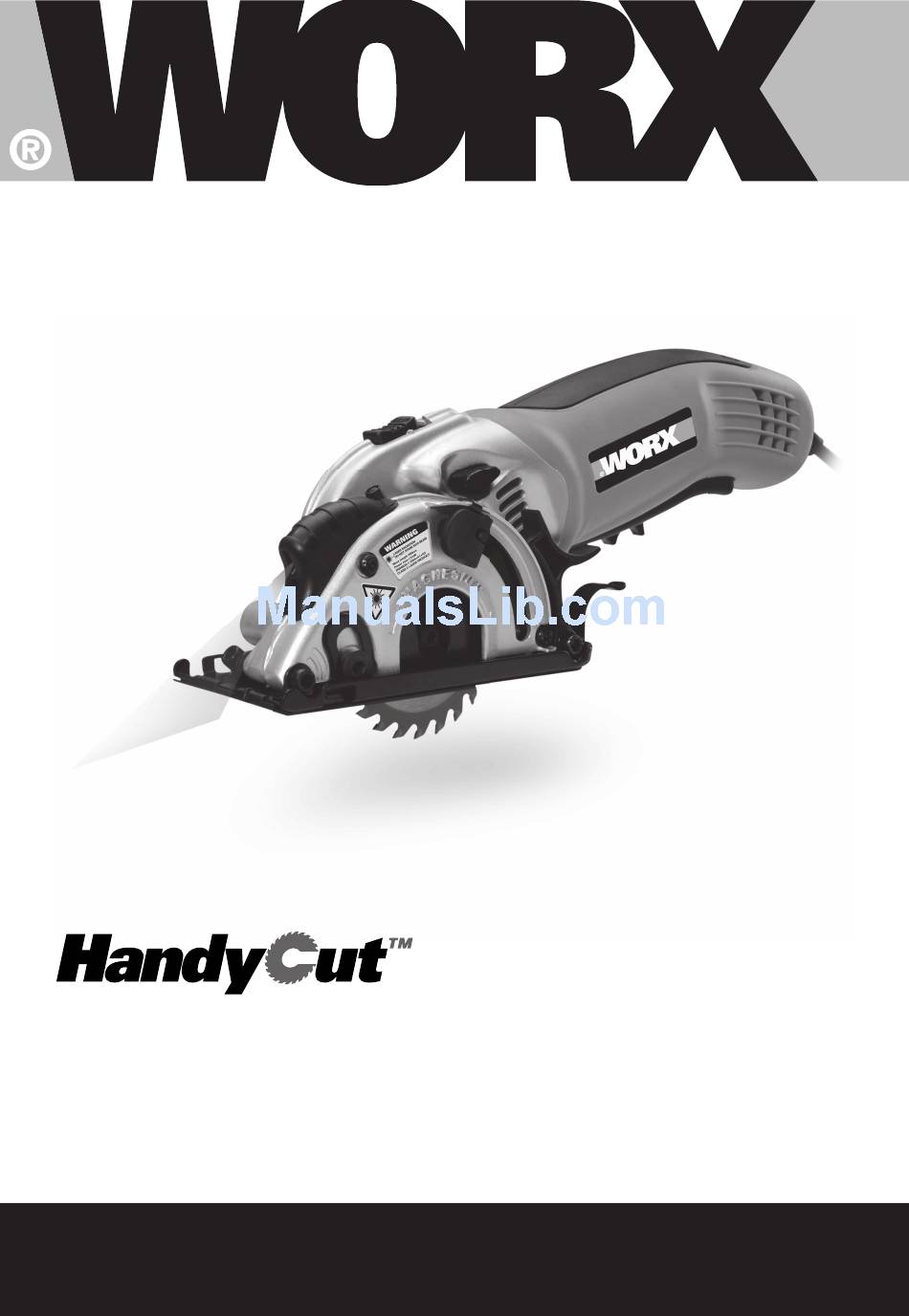

  • Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS Mini multi-function saw WX424...

  • Page 2: Safety Warnings

    GENERAL POWER TOOL suitable for outdoor use reduces the risk of electric shock. SAFETY WARNINGS 6) If operating a power tool in a damp location is unavoidable, use a residual WARNING: Read all safety warnings current device (RCD) protected and all instructions. Failure to follow supply.
  • Page 3 hazards. ensure that the safety of the power tool is maintained. 4. POWER TOOL USE AND CARE 2) If the replacement of the supply cord 1) Do not force the power tool. Use is necessary, this has to be done by the correct power tool for your the manufacturer or his agent in order application.
  • Page 4 tree limbs or logs. work-piece toward the operator; 17 . Do not use any abrasive wheels. When the blade is pinched or bound tightly by the work piece being cut, the blade WARNING: stalls and the motor reaction drives the unit a.

  • Page 5: General Safety

    GENERAL SAFETY e. Do not use dull or damaged blades. Unsharpened or improperly set blades can WARNINGS FOR YOUR cause excessive friction, blade binding and LASER kickback. f. blade depth and bevel adjusting WARNING: Read all safety warnings locking levers must be tight and and all instructions.
  • Page 6 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear eye protection Wear ear protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
  • Page 7 Mini multi-function saw WX424...
  • Page 8 SOFT GRIP HANDLE MOTOR HOUSING SAFETY RELEASE TRIGGER AND PADDLE SWITCH DEPTH OF CUT SCALE GUARD RELEASE LEVER GUARD FINGER LIFT bRACKET DUST EXTRACTION TUbE (See Fig. Q) LOWER bLADE GUARD UPPER bLADE GUARD 10. LENGTH OF CUT INDICATOR SCALE 11.

  • Page 9: Technical Data

    TEChNICAL DATA Voltage 230-240V~50Hz Power input 310W No load speed 2800/min Blade diameter 76x10mm Cutting capacity 22mm Protection class Machine weight 1.5kg NOISE AND VIBRATION DATA A weighted sound pressure : 82dB(A) 3.0dB(A) A weighted sound power : 93dB(A) 3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION...
  • Page 10 is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

  • Page 11: Operation Instructions

    OPERATION INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE: The machine is intended for lengthways and crossways cutting of wood with straight cutting lines, alumunium, PVC pipe and tile, etc., while resting firmly on the work piece.
  • Page 12 counterclockwise direction. DEPTH WIDTH j. Use the two hex keys to tighten the spindle clamping screw thoroughly. k. Place the two hex keys back in the case. NOTE: Never use a blade that is too thick to allow the blade clamping washer to engage with the flat side of the spindle.
  • Page 13 various applications and added gripping comfort with maximum control. Grasp the handle with one hand and push the handle adjustment button “IN” to release the handle for adjustment. Move the handle forward or backward (See Fig. F) to locate the 3 different positions. When the handle moves into 1 of the 3 positions the adjustment button will snap out and the handle will lock into position.
  • Page 14 cutting. f. Your circular saw has a built-in work light for better Line of Cut visibility when cutting. To turn on the LED work light, the saw must be plugged in. Push the switch from OFF to LED. 6. STARTING A CUT (See Fig. J,K,L1,L2) a) Set-up and clamp your work piece and mark your cut line.
  • Page 15 down and the blade guard release lever will engage the upper blade guard, locking the blade above the base (See Fig. Kg). WARNING: Never use the saw with your hands positioned as shown in Fig. L2. 7. MAKING CROSS CUTS AND RIP CUTS (See Fig.
  • Page 16 against the straight edge and flat on the work piece. c) Always let the blade reach full speed, then carefully guide the saw into the work piece. Do not bind the blade in the cut. Push the saw forward at a speed where the blade is not laboring.
  • Page 17 g) Always let the blade reach full speed, then carefully guide the saw into the work piece. Do not bind the blade in the cut. Push the saw forward at a speed where the blade is not laboring. 10. PLUNGE OR POCKET CUTTING (Fig.
  • Page 18 base will be able to automatically drop down and the blade guard release lever will engage the upper blade guard, locking the blade above the base. 11. SAWDUST REMOVAL (See Fig. Q) Your saw includes a hose adapter tube that attaches to the built-in dust extraction port on the saw (See Fig.

  • Page 19: Environmental Protection

    WORKING hINTS FOR YOUR PLUG REPLACEMENT TOOL (UK & IRELAND ONLY) If your power tool becomes too hot, please If you need to replace the fitted plug then run your circular saw no load for 2-3 minutes followthe instructions below. to cool the motor.
  • Page 20 EC DECLARATION OF CONFORMITY Positec Power Tools RG24 8AL, UK Declare that the product, Description WORX Mini multi-function saw Type WX424 Function Cutting various materials with a rotating toothed blade Complies with the following directives, EC Machinery directive 98/37/EC (valid till Dec.28, 2009) 2006/42/EC (valid since Dec.
  • Page 24 Positec Power Tools (Europe) Ltd, Positec House, becklands Close, bar Lane Industrial Estate, boroughbridge, North Yorkshire, RG24 8AL, UK. Copyright © 2010, Positec. All Rights Reserved.
