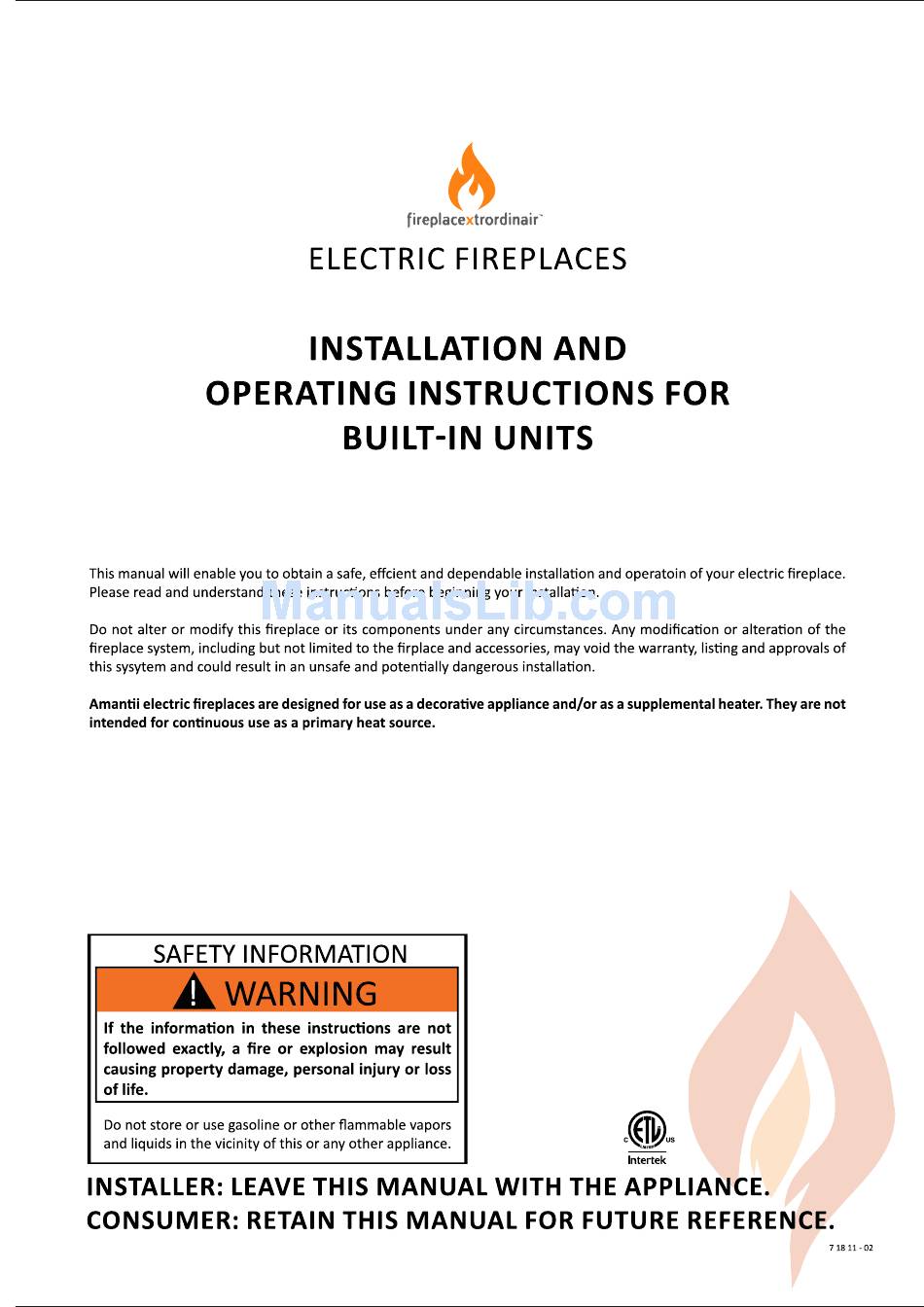

  • Page 1 FIREPLACEXTRORDINAIR 95801021 FPL ELECTRIC 51, 95801022 FPL ELECTRIC 64, 95801022 FPL ELECTRIC 115...
  • Page 3 TABLE OF CONTENTS CONGRATULATIONS! many years of dependable and enjoyable service from your Fireplacextrordinair product. 95801021 FPL ELECTRIC 51 95801022 FPL ELECTRIC 64 Page 5 95801022 FPL ELECTRIC 115 Page 6 Mood Light...
  • Page 5: Important Instructions

    If in doubt, please visit our website at www.Fireplacextrordinair.com for the most recent version of the manual. 14.To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater.
  • Page 6 95801021 FPL ELECTRIC 51 This appliance has been tested in Model Number WM-BI-43-5123 accordance with the UL Standard 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Canada. Amps 11.7A If you need assistance during installation,...
  • Page 7 95801022 FPL ELECTRIC 64 This appliance has been tested in Model Number 95801022 FPL ELECTRIC 64 accordance with the UL Standard 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Canada. Amps 11.7A If you need assistance during installation, please contact your local dealer 1400W HIGH...
  • Page 8 95801022 FPL ELECTRIC 115 This appliance has been tested in Model Number 95801022 FPL ELECTRIC 115 accordance with the UL Standard 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Canada. If you need assistance during installation, Amps 11.7A please contact your local dealer...
  • Page 9: Installation Overview

    INSTALLATION OVERVIEW NOTE: BEFORE YOU INSTALL SITE SELECTION wall. rapes, pillow Review and consider all of the following condi- furniture etc. wo (2) wall ht and away fr overhead lighting. ethods: electric et for ease of electric t-In (page 11) nt (Page 13) and all hardware fr ox and r...
  • Page 10 INSTALLATION OVERVIEW (Figure 1) Remove sides of box (Figure 2) 43”/ 58” 106” Remove packaging surrounding the unit and front. (Figure 3) 43”/ 58” 106” Discard packaging materials and store (Figure 4)
  • Page 11: Package Contents

    PACKAGE CONTENTS Part Glass Wall Bracket 1 (43") Fire Glass Media 2 (58") 3 (106") CONTENTS Description Quantity Picture Part Screw 0.16 in. x 1.0 in. Wall Plug 0.3 in. x 1.5 in. Wood Screw 0.16 in. x 0.6 in. Screw 0.16 in.
  • Page 12 Leave at least 1/4” (6mm) around the Dry Wall edge of the appliance. Any new wiring must be done in compliance with local and na l codes and other applicable Model number 95801021 FPL ELECTRIC 51 43" 44" 17" 5 " 95801022 FPL ELECTRIC 64 58"...
  • Page 13 FIREPLACE INSTALLATION BUILT IN NOTE BEFORE YOU INSTALL just the unit to achieve the desired amount of depth. (Figure 6) and the wall studs. (Figure 7) Figure 6 Power cord Figure 7 Wall Power cord...
  • Page 14 Figure 8 NOTE: BEFORE YOU INSTALL Stakes for hanging It is strongly recommended that the screws be wall bracket screwed into the wall studs where possible. If anchors are used. (Figure 8) ke sure it is level. 3 feet hanging into the keyholes on the back of the unit. (Figure 9, Figure 10) Floor 3.
  • Page 15 - HARD-WIRE Step 1 Release the screws Remove the cover Feed the supply wires thought the 7/8” @22.2 wire hole and Lock the power cord stator Step 2 Touch Panel Connect the Live wire (Black) Connect the Ground wire (Yellow) Connect the Neutral wire (White) Screw the strain relief Step 3...
  • Page 16 CLEANING THE MEDIA: The media may contain a fine white dust that needs thoroughly and dry before placing into the tray. 1. To change from log to Fire Glass Media (Figure 12.1) HZ-01 Clear log set out. 2. Choose the colour of Fire Glass Media you would like to use. (Figure 11) 3.
  • Page 17: Front Installation

    FRONT INSTALLATION NOTE: BEFORE YOU INSTALL It is recommended that two people install the Figure 13 front onto the appliance, wear safety glasses and gloves when handling glass. brackets with the four (4) shoulder screws on the side of the appliance body (Figure 14, or Figure Figure 14 Figure 15 Figure 16...
  • Page 18: Operating The Unit

    OPERATING THE UNIT GETTING POWER TO THE UNIT Figure 17 1. Make sure the appliance is switched OFF (refer Wall on the right hand side of the unit. (Figure 16) 3. Plug unit into electrical outlet. WARNING: outlets or circuits. To reduce the risk of licensed electrician.
  • Page 19 OPERATING THE UNIT DISPLAY AND FUNCTIONS Figure 18 a.IR: Receiving infra-red signals(inputs) °F b.ON/OFF: (Power indicator) °C indicator will be on when the appliance is IR ON/OFF FLAME/ DISPLAY HEAT TIMERS EMBERS standby mode. c.FLAME/EMBERS: (Flame light and embers light indicator) The indicator will be on d.DISPLAY: (Multi-functional digital display) The panel displays flame light intensity 1 to...
  • Page 20 REDUCING EMBERS LIGHT INTENSITY: INCREASING EMBERS LIGHT INTENSITY: HEATER SWITCH: ON: The heater is ready to start display panel indicates “ON” and the visual on indicator will OFF: Display panel indicates “--”. Remark: If you would like to set the thermostat simply use TEMP key on remote and HEAT key on the display panel of fireplace will display it goes from 68 -86 see the desired temperature.
  • Page 21 B: Main Unit Operations Figure 20 POWER: (The power control of the appliance) Other than switching the appliance on/off, it contain the functions of setting memory and returning to default settiing. Power on other three indicators will active for 8 second. FLAME: 1 -level 5 HEAT:...
  • Page 22 MOOD LIGHT MOOD LIGHT MOOD LIGHT 2.MOOD LIGHT LED is installed at the back of glass and is required to plug in. MOOD LIGHT LED Remote working If fireplace is at stand by mode 3.Use remote directly to the Touch Panel. Infrared receiver is loacted 4.For details function, please see below.
  • Page 23: Replacing The Remote Control Battery

    REPLACING THE REMOTE CONTROL BATTERY When the remote control stops operating or its range seems reduced, it is time to replace the batteries with new ones. Remove the batteries if the remote control won’t be used for a long period of time. 1.
  • Page 24: Care And Maintenance

    CARE AND MAINTENANCE CLEARANCE TO COMBUSTIBLES Keep electrical cords, drapery, furniture and other combustibles at least 3 ft. from the front of the heater and away from the sides. CLEANING TRIM Clean the metal trim using a soft cloth, slightly dampened with a citrus oil-based product and buff with a clean soft cloth.
  • Page 25: Fireplace Maintenance

    Disconnect power before performing any maintenance or cleaning to reduce the risk of LED LIGHT BULB REPLACEMENT LED light bulbs are to be replaced by the manufacturer, it’s service agent or similar quali- WARNING: LED LIGHT REQUIREMENTS 95801021 FPL ELECTRIC 51: 95801022 FPL ELECTRIC 64: 95801022 FPL ELECTRIC 115: CAUTION: UNIT DISPOSAL Do not dispose with other household wastes.
  • Page 26: Trouble Shooting

    TROUBLE SHOOTING WARNING Disconnect power before performing any maintenance and allow to cool before servic- SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Fireplace doesn’t work, Fireplace inner temperature over a.This fireplace are include a visual alarm and a thermostat but “F” visual alarm light limiter safety device to warn/prevent that parts of heater are is flashing.
  • Page 27: Service History

    SERVICE HISTORY This heater must be serviced annually depending on usage. Dealer Service Technician Date Service Performed Special Concerns Name Name NOTES:...
  • Page 28 SPARE PART LIST 4783-POWER-PCBA Power PCBA 4783-CONTROL-PCBA Control PCBA 4783-DISPLAY-PCBA Display PCBA 4783-KEYPAD-PCBA Keypad PCBA LED PCB 4783-GRAYBOARD-LED Front LED for all models 4783-TEMPC-PCBA Temperature control PCBA 4783-DRIVER-PCBA LED driver PCBA LED PCB 4783-LOG-LED Log set LED for all models 4738-LED 43"...
  • Page 29 Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the provisions of this warranty , Fireplacextrordinair warrants such products to be free from defects in material and workmanship for a period of one (1) year from the date of the first purchase of such products.
  • Page 30 ELECTRIC FIREPLACES...
