Compatibility:
• 564 SS & DF Fireplace
• 564 HO Fireplace
• 564 564 EF-I Fireplace
564 GAS FIREPLACES ONLY:
The FPX Face Upgrade Kit (98500683) must be installed
prior to installing the facing material and face.
564 SS GAS FIREPLACES ONLY:
The center deflectors must be in place when using this face to
prevent the facing above the fireplace from becoming too hot.
If this face is replacing a Lopi Grill (96200801), make sure to
replace the center deflectors.
Care and Handling of Plated Surfaces
Use denatured alcohol and a soft cloth to clean gold or nickel surfaces. Marks left
on the surface may damage the face.

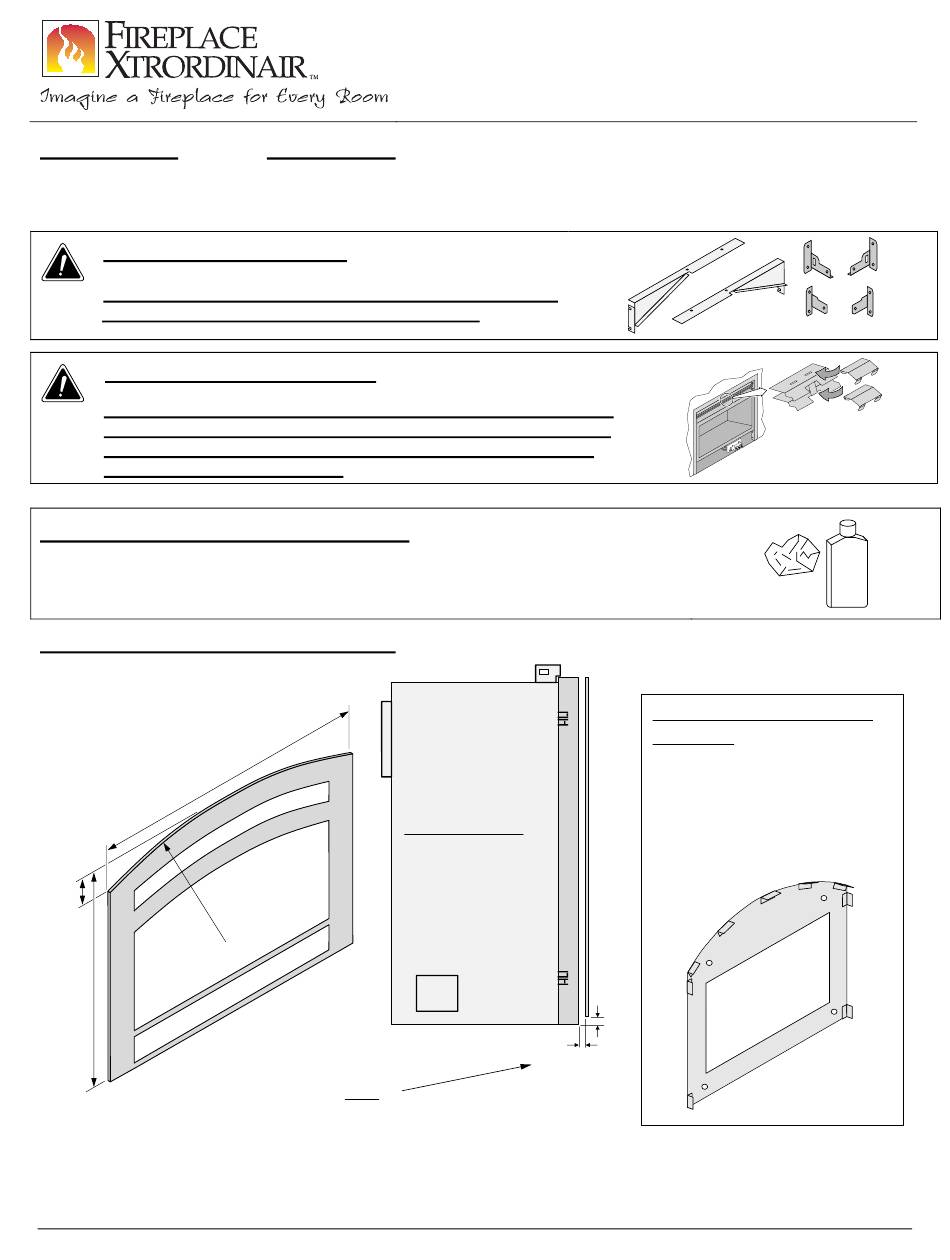

Installation Details – 564 SS, DF, HO
36"
2-3/4"
61"Radius
29"
Page 1 of 4
Packing List:
• Face
• (2) 564 SS Top Brackets (w screws)
• (2) 10-24 1-1/2" Screws
SIDE OF FIREPLACE
NOTE:
This face has an adjustable bracket that allows for
different facing depths to be tucked under the face.
17601470 - 3/26/15
564 Arched Face
Classic Black 95400402
French Country Black 95400408
• (4) 8-32 Nuts
NOTE FOR THICK FACING (BRICK,
ROCK, ETC.):
The Fireplace Xtrodinair 564 Set-Up
Face is recommended for masonry
installation (98500674). The set-up face
helps locate and support the masonry
during installation.
1"
5/16" TO 1"
Nickel 95400405
Denatured
Alcohol
Soft Cloth
© Travis Industries, Inc.
