FireplaceXtrordinair 564 Rectangular Face Manual

Compatibility:

• 564 SS & DF Fireplace

• 564 HO Fireplace

• 564 564 EF-I Fireplace

The center deflectors must be in place when using this face to prevent

the facing above the fireplace from becoming too hot. If this face is

replacing a Lopi Grill (96200801), make sure to replace the center

deflectors.

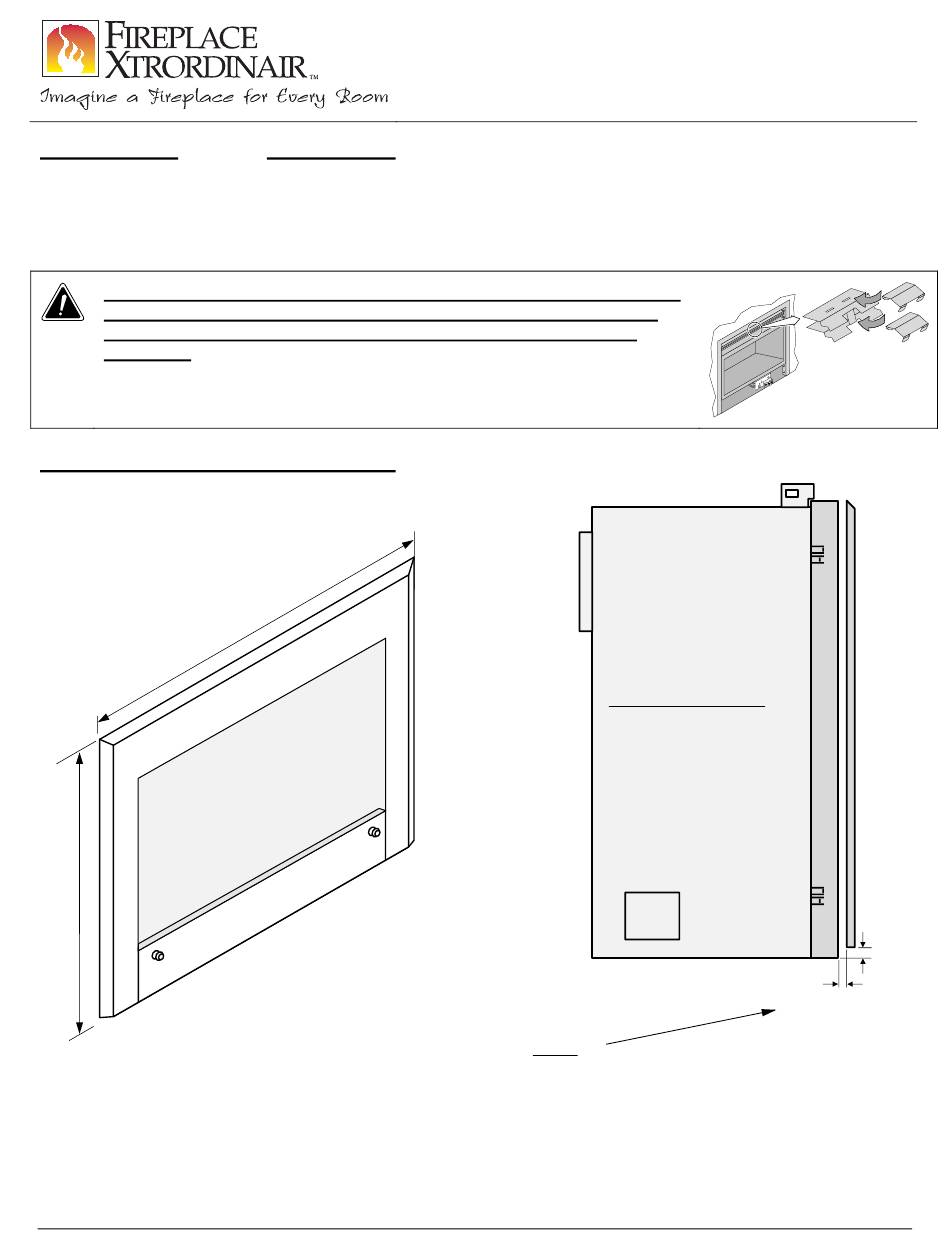

Installation Details – 564 SS, DF, HO

36"

29"

Page 1 of 4

• Face

• (2) 564 Top Brackets (w screws)

• (2) 564 Upper Mounting Brackets

• (2) 564 Lower Mounting Brackets

• (2) 10-24 1-1/2" Screws

17601478

564 Rectangular Face

Black 95400411

SIDE OF FIREPLACE

NOTE:

This face has an adjustable bracket that allows for

different facing depths to be tucked under the face.

4/1/16

Nickel 95400413

• (4) 8-32 Nuts

0" TO 1/2"

Table of Contents

Do you have a question about the 564 Rectangular Face and is the answer not in the manual?

Page 1 564 Rectangular Face Black 95400411 Nickel 95400413 Compatibility: Packing List: • 564 SS & DF Fireplace • Face • (4) 8-32 Nuts • 564 HO Fireplace • (2) 564 Top Brackets (w screws) • 564 564 EF-I Fireplace • (2) 564 Upper Mounting Brackets •...
Page 2 564 Rectangular Face Black 95400411 Nickel 95400413 Installation Remove the glass frame (see the owner's manual for details). Install face mounting brackets to the fireplae.. Upper Bracket Remove the nuts and bushings above and below the firebox. Place the brackets into position then replace the bushings and nuts to secure the brackets in place.
Page 3 564 Rectangular Face Black 95400411 Nickel 95400413 Installation (continued) The facing and hearth (if applicable) must be installed prior to attaching the face. See the installation manual for complete details. Raised Fireplaces Note how the tile is 1” (maximum) above the base of the fireplace.
Page 4 564 Rectangular Face Black 95400411 Nickel 95400413 Installation (continued) Install the face following the directions below. Attach the upper brackets to the face with the included nuts. The face is secured to the fireplace Slide the face into place. The with four screws.
