The FPX Face Upgrade Kit (98500683) must
be installed prior to installing the facing
material and face.
The center deflectors must be in place when using this face to prevent
the facing above the fireplace from becoming too hot. If this face is
replacing a Lopi Grill (96200801), make sure to replace the center
deflectors.
Hand-Rubbed Patina Finishes
The optional patina finish is hand applied by a skilled artisan to permanently alter the metal colors and texture
of the face. Each face is individually hand-polished and fired in an oven which imparts unique color subtleties
with no two finishes alike. The patina finish on your face is a "living" color and will age and antique over time.
Enjoy the timeless, rich luster of your beautiful new face.

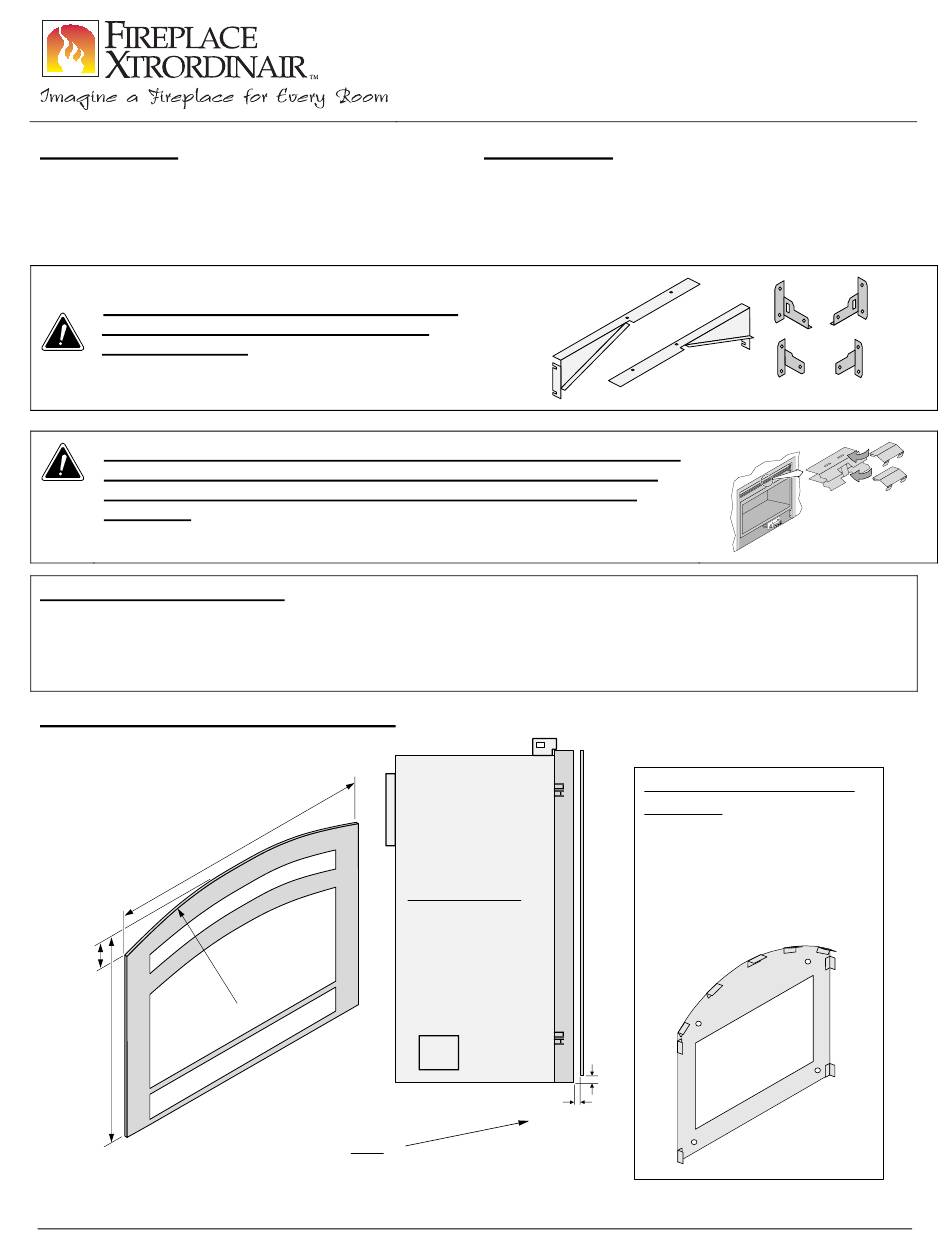

Installation Details – 564 SS, DF, HO
36"
2-3/4"
61"Radius
29"
Page 1 of 4
Charcoal 95400418
Packing List:
• Face
• (4) 8-32 Nuts
• (2) 564 SS Top Brackets (w screws)
• (2) 10-24 1-1/2" Screws
SIDE OF FIREPLACE
NOTE:
This face has an adjustable bracket that allows for
different facing depths to be tucked under the face.
17601473 - 3/26/15

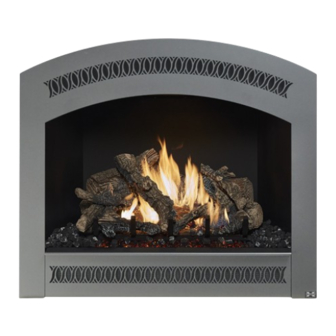

564 Artisan Face
Artisan Patina Bronze 95400417
NOTE FOR THICK FACING (BRICK,
ROCK, ETC.):
The Fireplace Xtrodinair 564 Set-Up
Face is recommended for masonry
installation (98500674). The set-up face
helps locate and support the masonry
during installation.
1"
5/16" TO 1"
© Travis Industries, Inc.
